Alignment Card

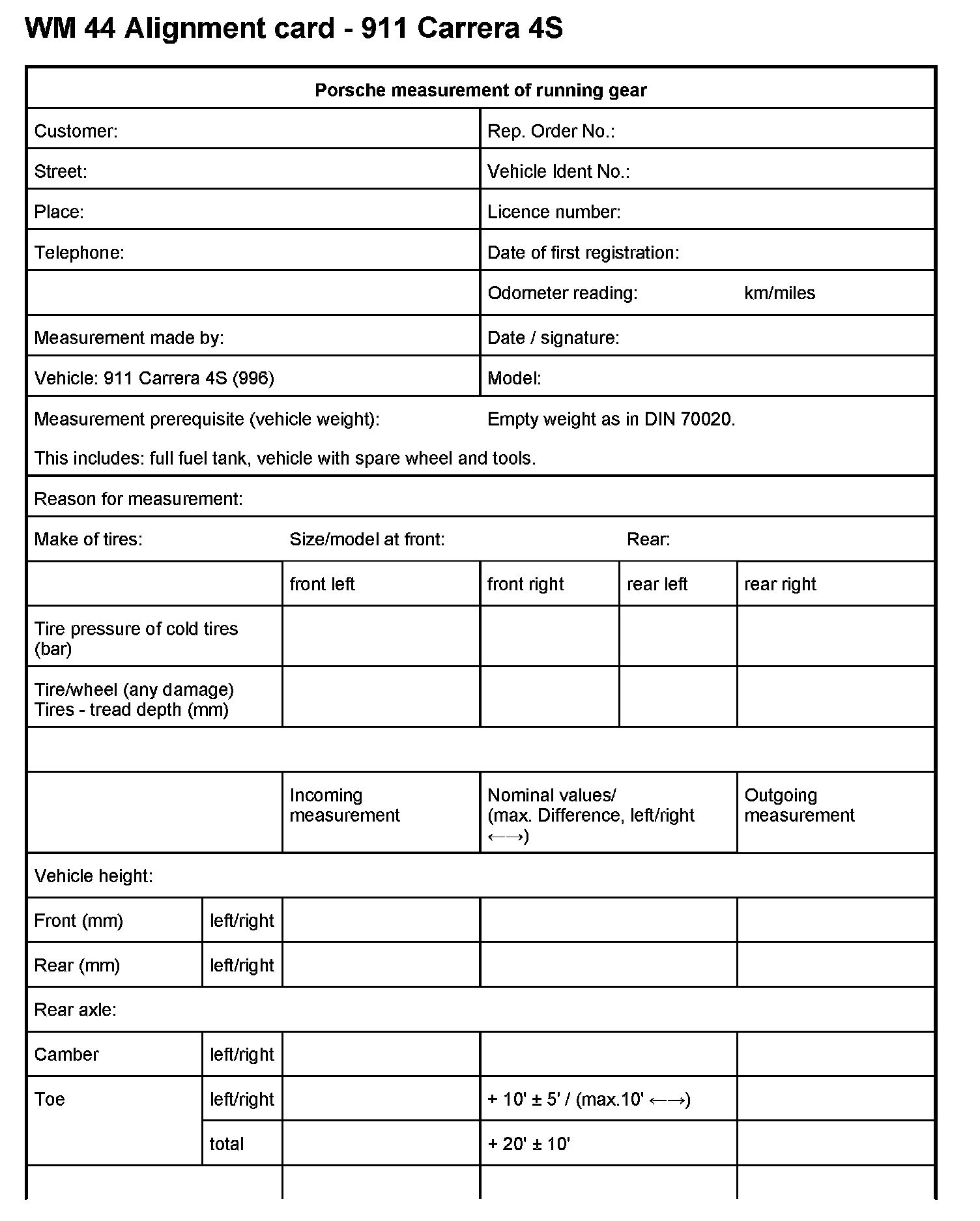

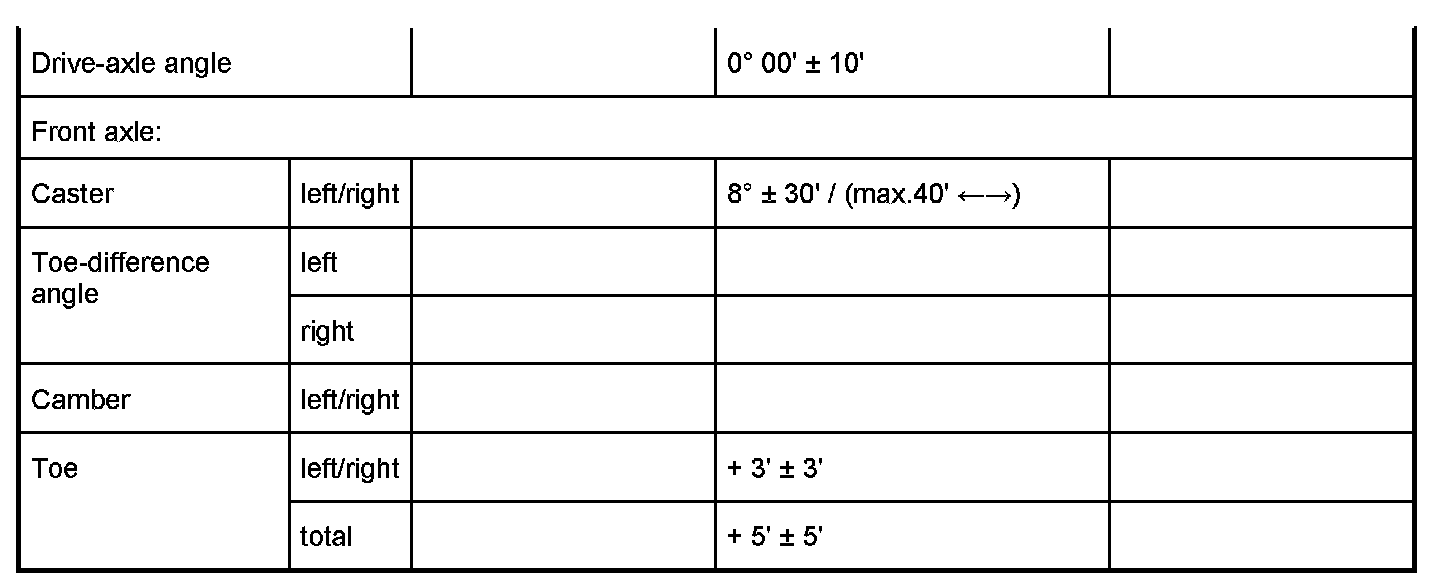

Alignment card - 911 Carrera 4S








Since mainly electronic wheel-alignment testers in conjunction with printers are used, a specimen alignment card is rarely required nowadays. In order for measured results to be documented in individual cases, however, a copy of the alignment card shown above can be used.

Information
^ In practice this means that alignment cards cannot be ordered!
^ The alignment cards can be used for all 911 Carrera 4S (996), USA and RoW!

1. Prepare copies of the corresponding alignment card shown.
2. Before measurement, enter the general data, vehicle model and the missing nominal values into the copied alignment card.

Information
^ Actual values that are identical in all versions have already been entered!

3. Enter the appropriate version, e.g. USA or RoW, in the Model column.
4. Carry out incoming measurement (actual status) and enter the values in the alignment card.
5. After adjustments (if these were necessary), enter the actual values in the column Outgoing measurement.
