PCM2 Gateway Connector Assignment



PCM2 Gateway Connector Assignment

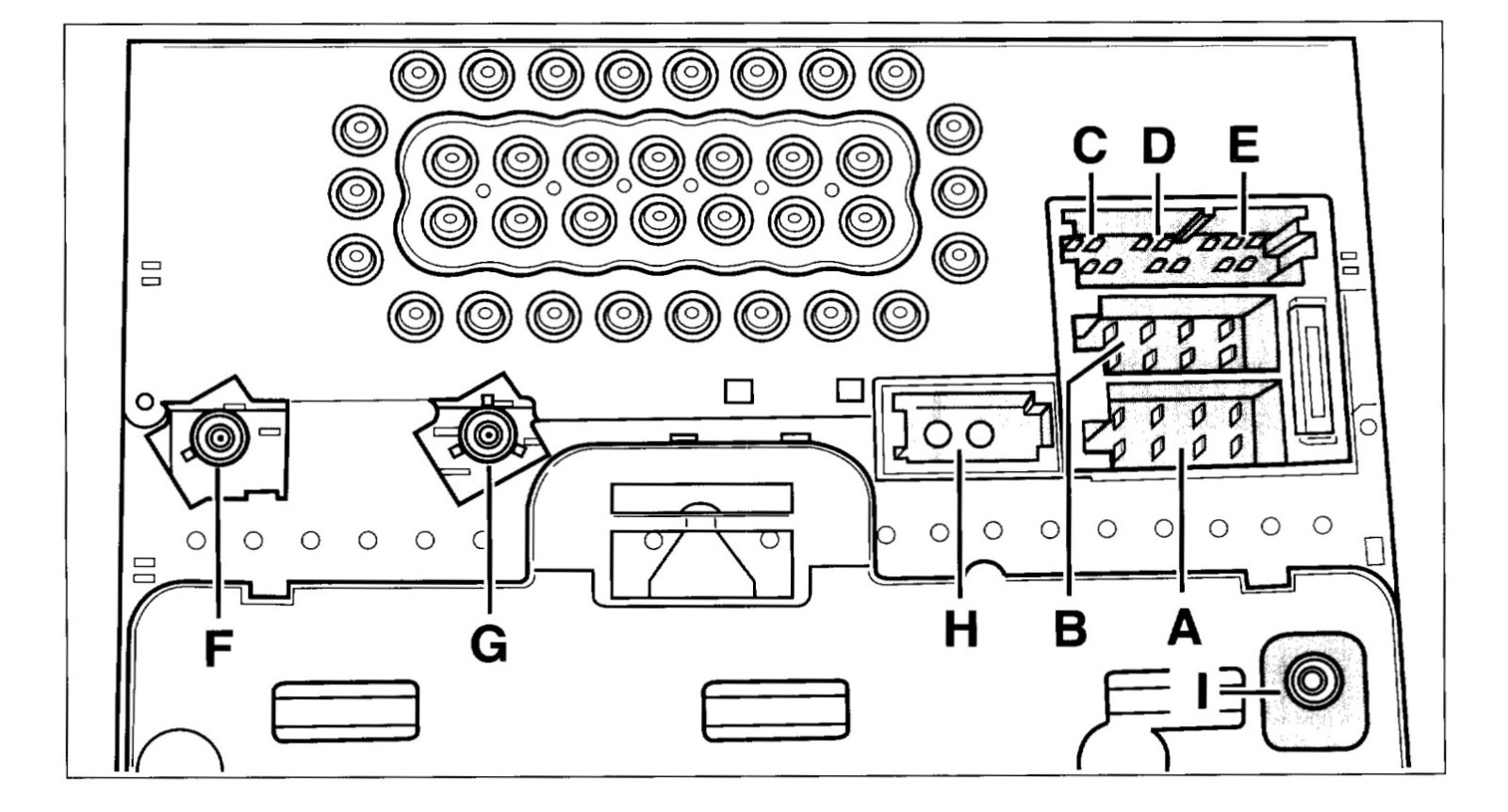

Connector Assignment

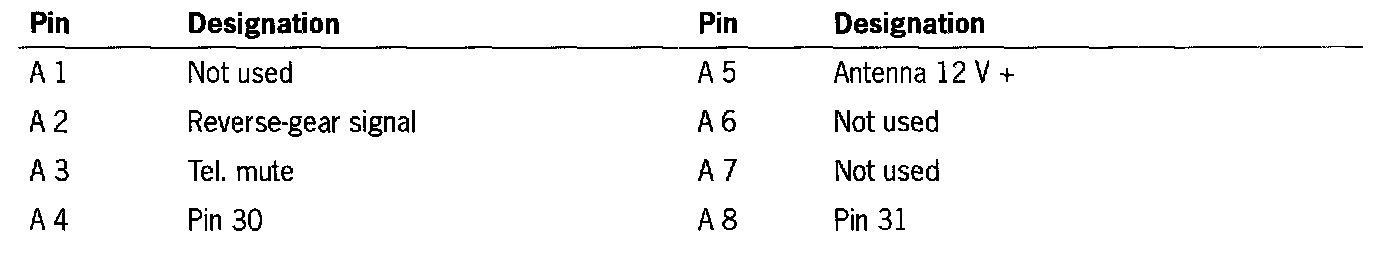

Connector A, black, power supply


Pin A1 - A8:

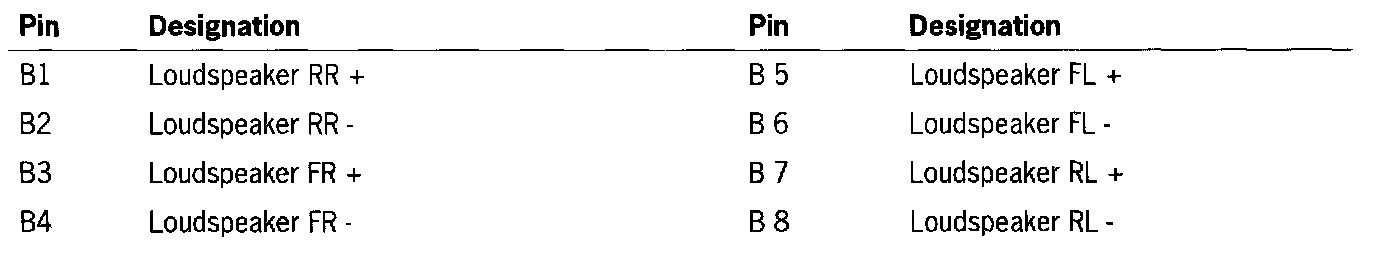

Connector B, brown, loudspeaker output


Pin B1 - B8:

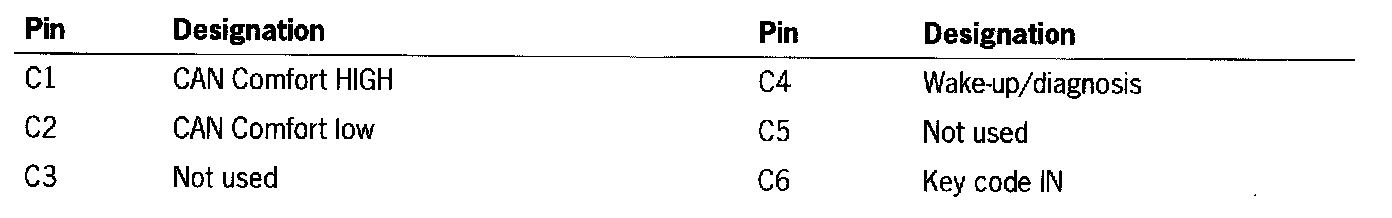

Connector C, yellow, CAN comfort


Pin C1 - C6:

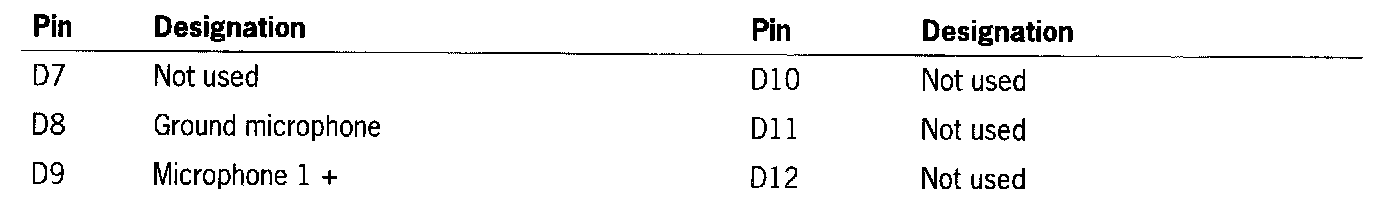

Connector D, green, microphone


Pin D7 - D12:

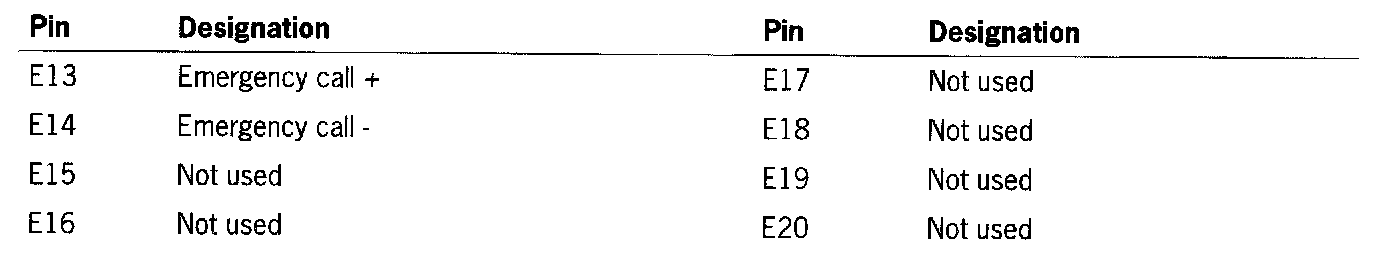

Connector E, blue, emergency call


Pin E13 - E20:

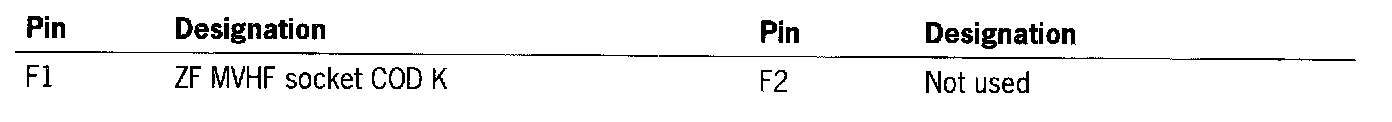

Connector F, antenna


Pin F1 - F2:

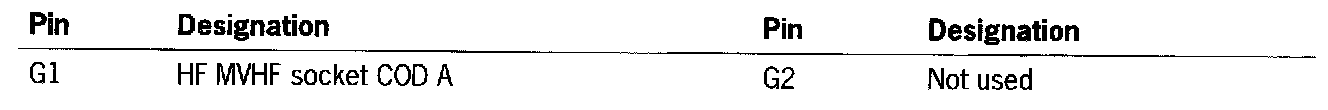

Connector G, diversity antennas


Pin G1 - G2:

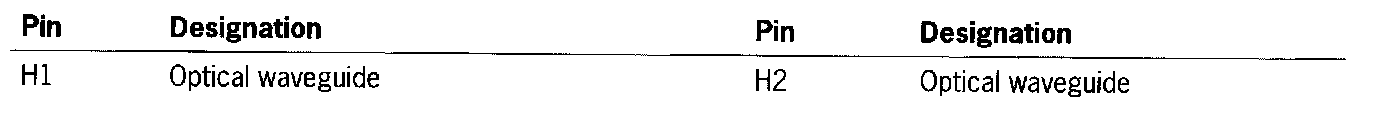

Connector H, MOST


Pin H1 - H2:

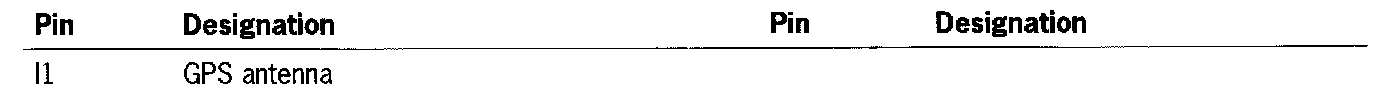

Connector I, GPS antenna


Pin I1:
