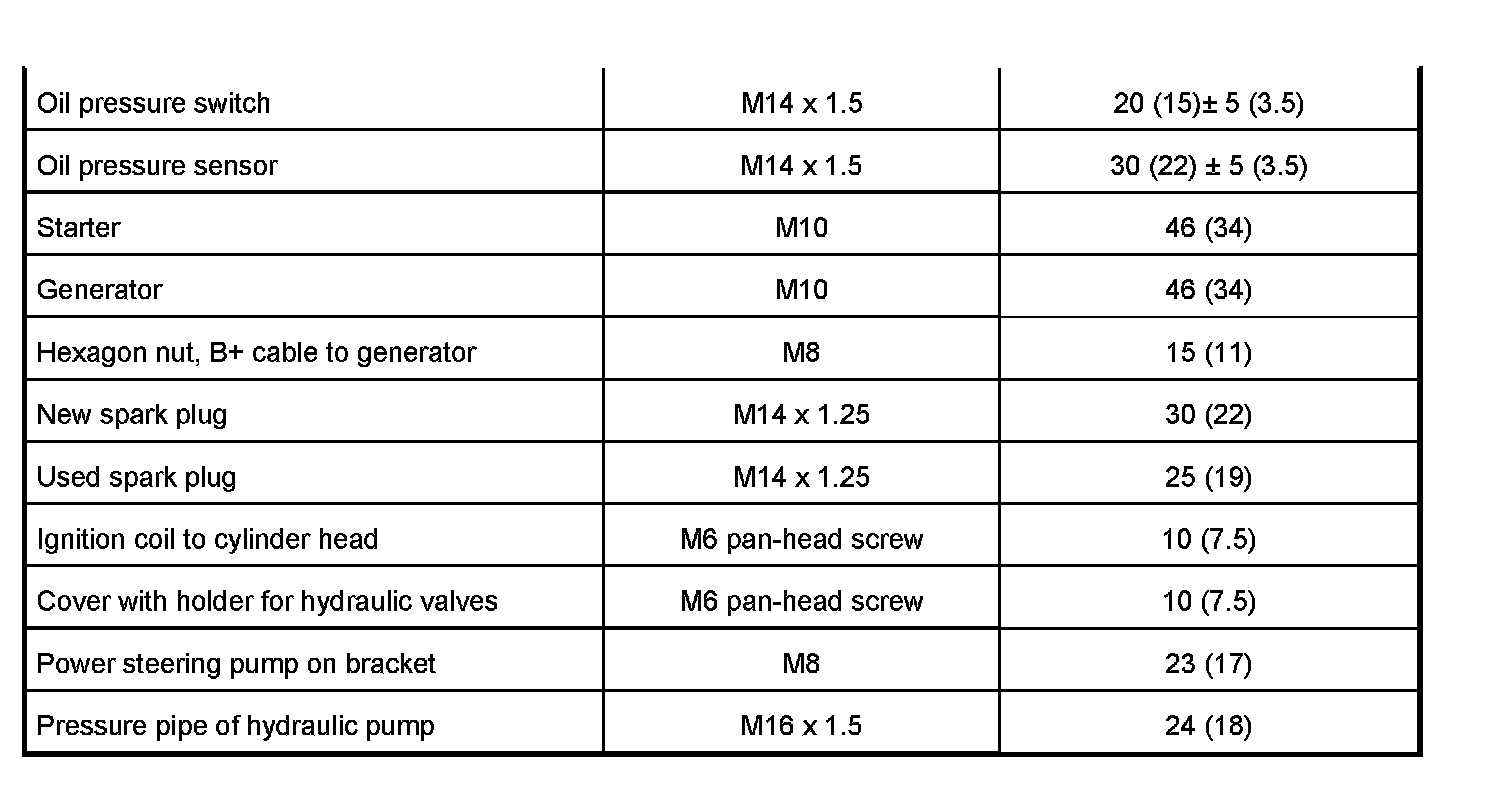

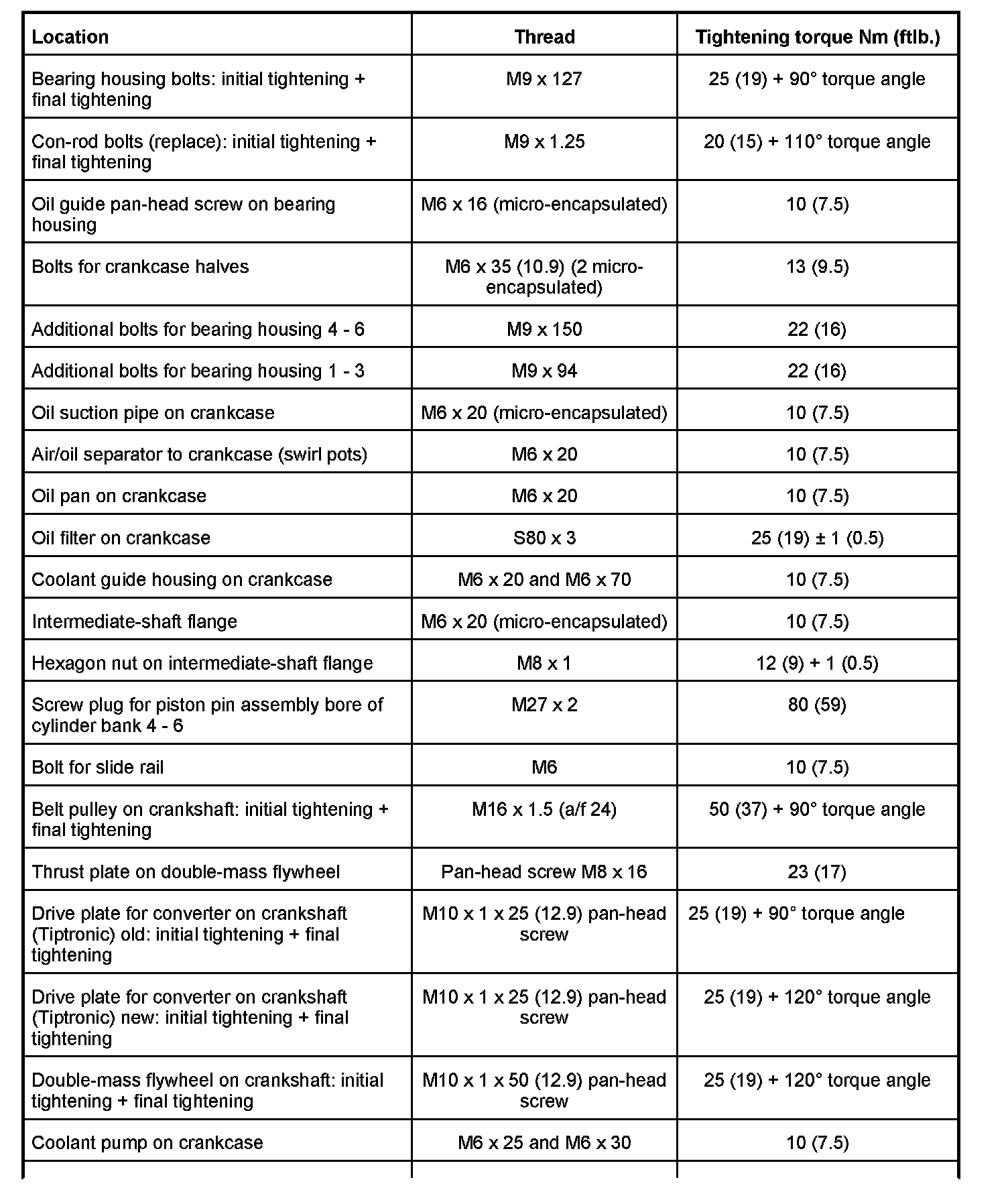

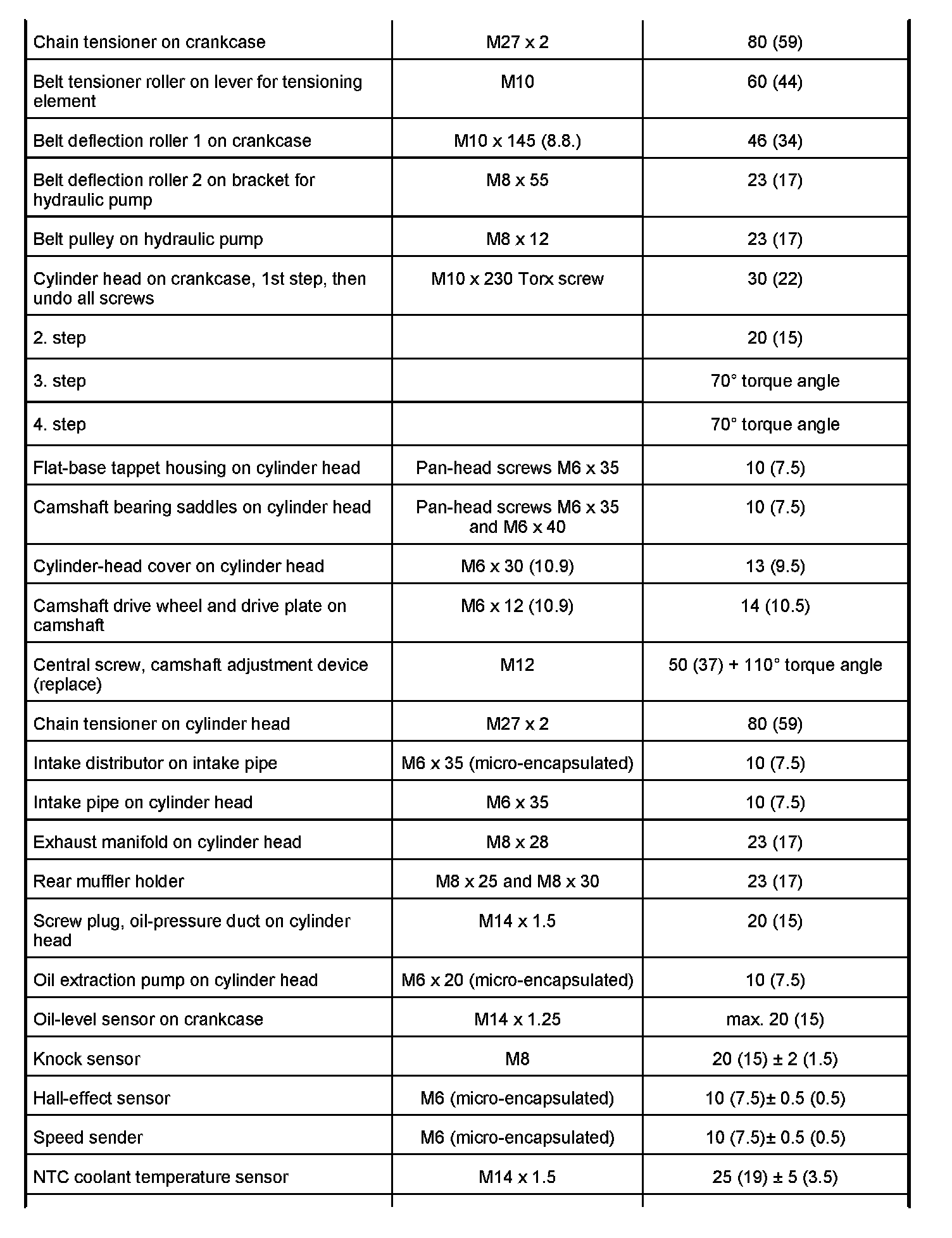

Tightening Torques
Tightening torques for the M 96/03 engineCylinder Head Bolts Replace bolts
First pass
30 Nm (23 ftlb.)
Second pass
Loosen completely
Third pass
20 Nm (15 ftlb.)
Fourth pass
Tighten 60° ± 2°
Fifth pass
Tighten 60° ± 2°
Final pass: Pan-head screws M6 x 35 (10.9) (with captive washers) in chain box area
13 Nm (10 ftlb.)
