Seats: Service and Repair

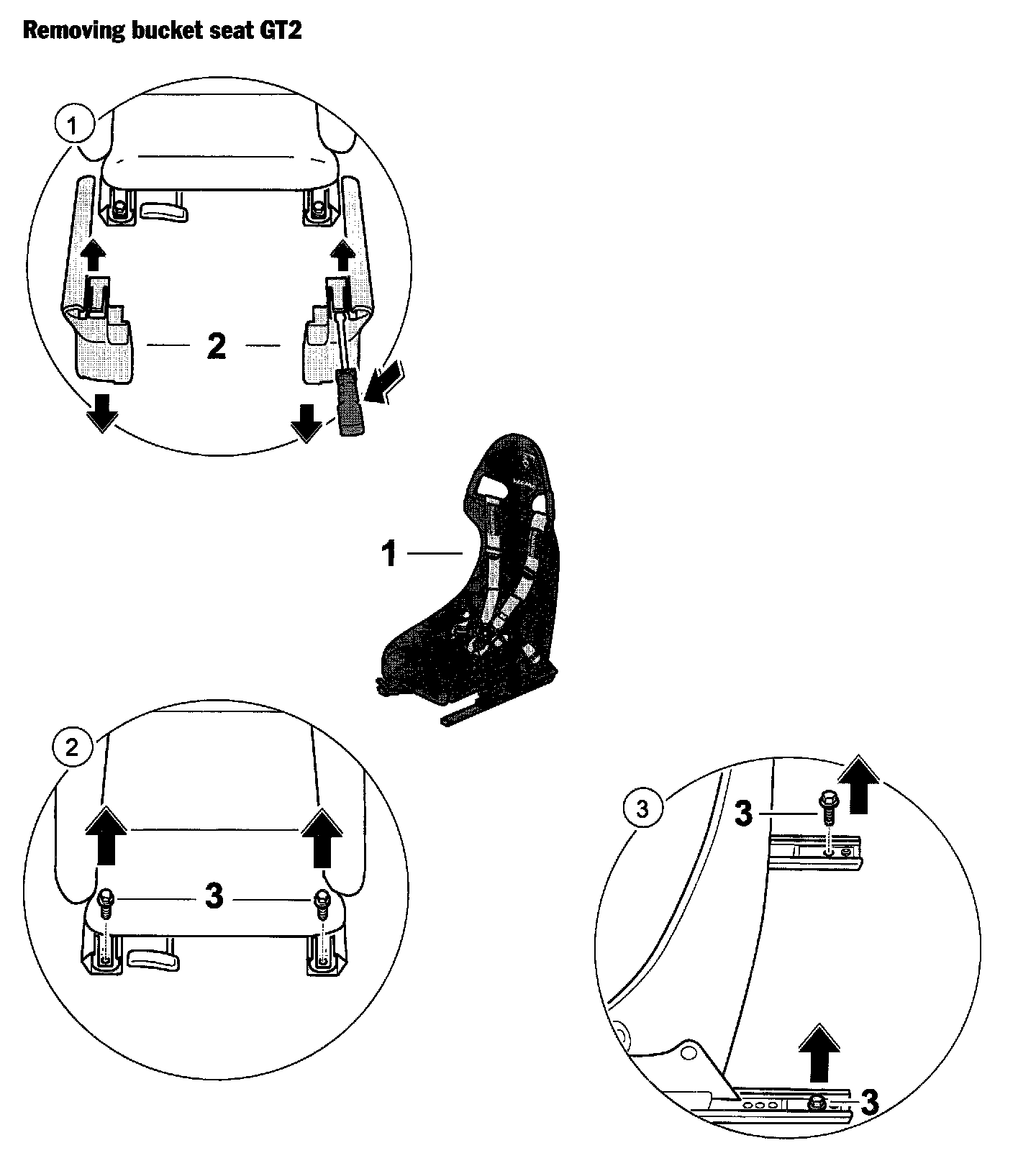

Removing and Installing Bucket Seat - GT2






Removing

Components:

Procedures:

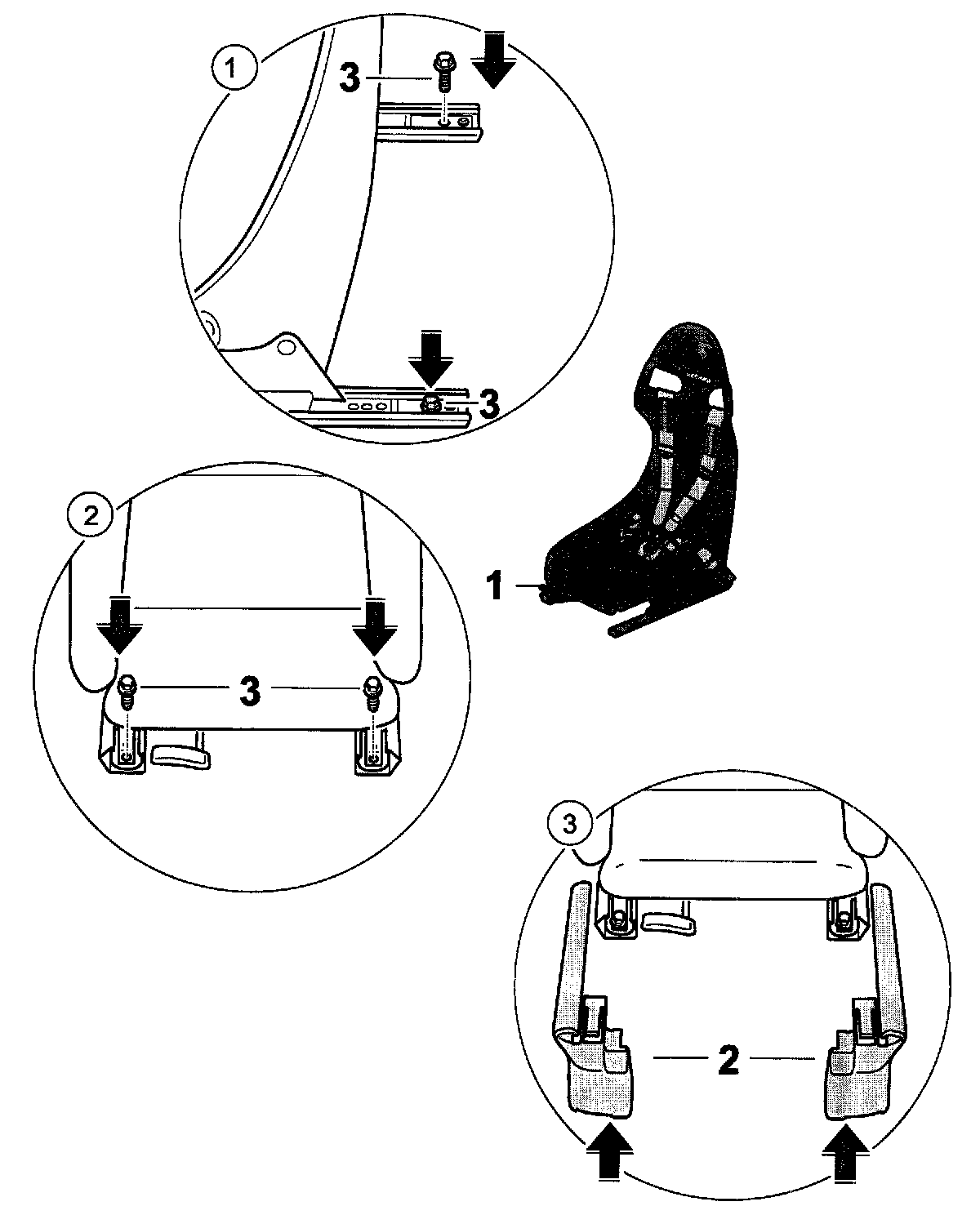

Installing

Components:

Procedures:

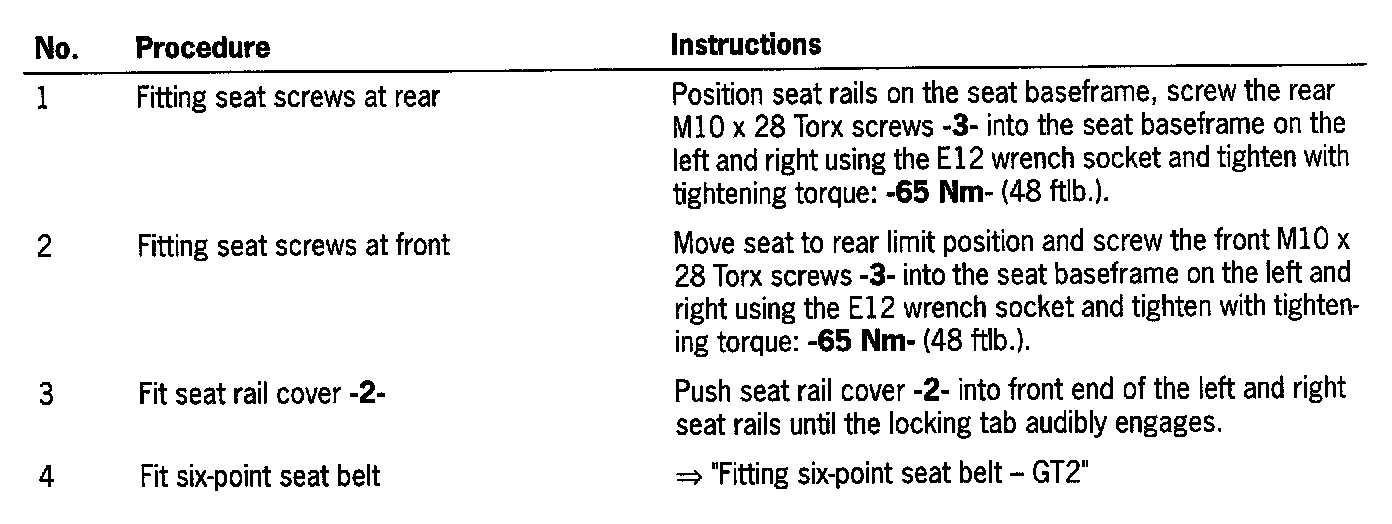

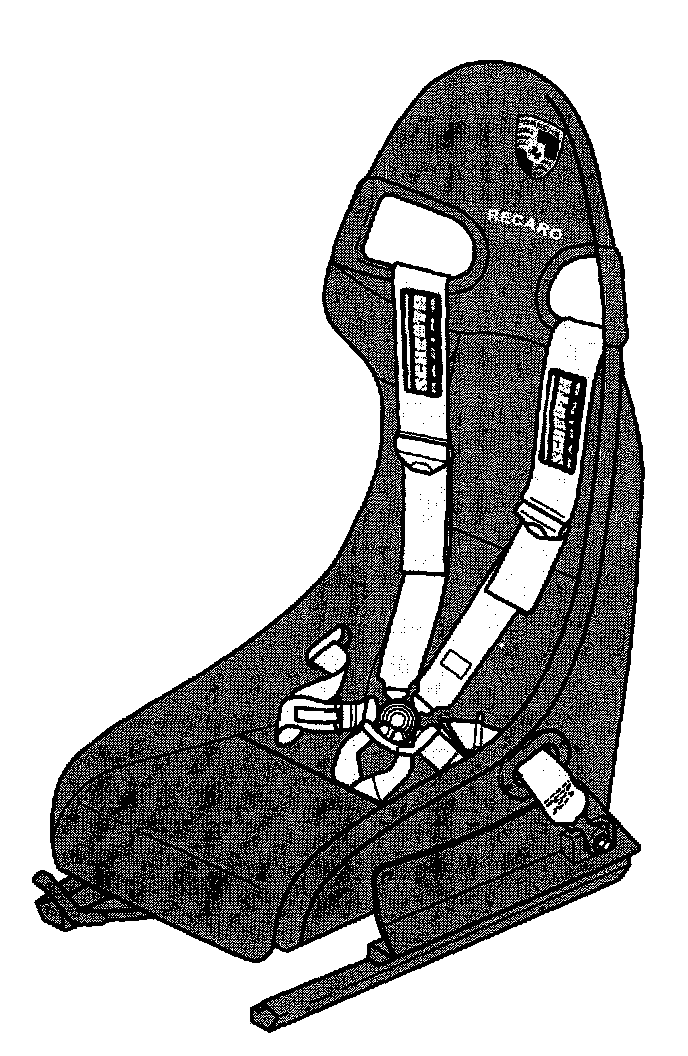

Fitting Six-point Seat Belt - GT2





1. Loop technique for fastening the seat belt to the bucket seat cross member
- Loop the belt strap in the direction of the arrow -inset-around the bucket seat transverse strut into the adjustible slider. The projection -dimension = X- of the belt strap must be at least 100 mm.





2. Pulling six-point seat belt through the openings in the bucket seat
- Pull six-point seat belt through the upper openings in the backrest from behind -arrow A- and through the openings in the seat frame from the side -arrow B-.





3. Fitting belt fitting
- Position foam part -4- and belt fitting -5- at the left and right on the seat frame. With the shim -3- and the fastening screw -2-, screw the belt fitting -5- tight. Position the cover -1- on the fastening screw -2-.
- Use the foam part -4- for the Club Sport version.
- For the Cup racing version, mount the bushing -6- instead of the foam part.
Tightening Torque: 50 Nm (37 ftlb.)





4. Loop technique for fastening the seat belt to the bucket seat cross member
1. Loop the belt strap in the direction of the arrow -inset- around the transverse strut on the roll cage into the adjustible slider. The projection -dimension = X- of the belt strap must be at least 100 mm.
2. Roll up the projecting belt strap and bind it with a tie wrap -1-.
