Removing Heating/Air Conditioning Control

NOTE:
- Basic adaptation to the system must be performed with a new heating/air-conditioning control.
- This is indicated by flashing of the displays for approx. 5 to 10 seconds each time the ignition is switched on.
- Basic adaptation is performed during the system test.

1. Unclip cover.

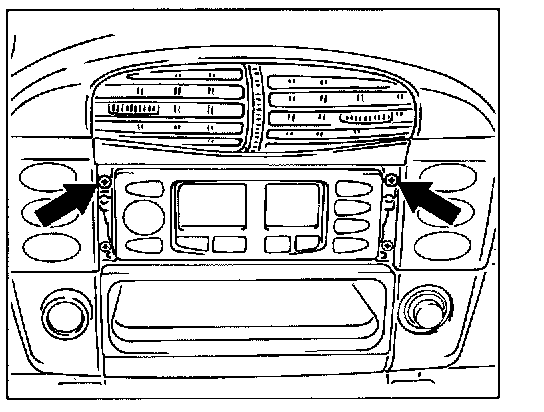

2. Unscrew -fastening screws- (2 ea.) and pull the heating/air-conditioning control out of the dashboard.
3. Disconnect the electrical plug connections.
