Alignment Cards

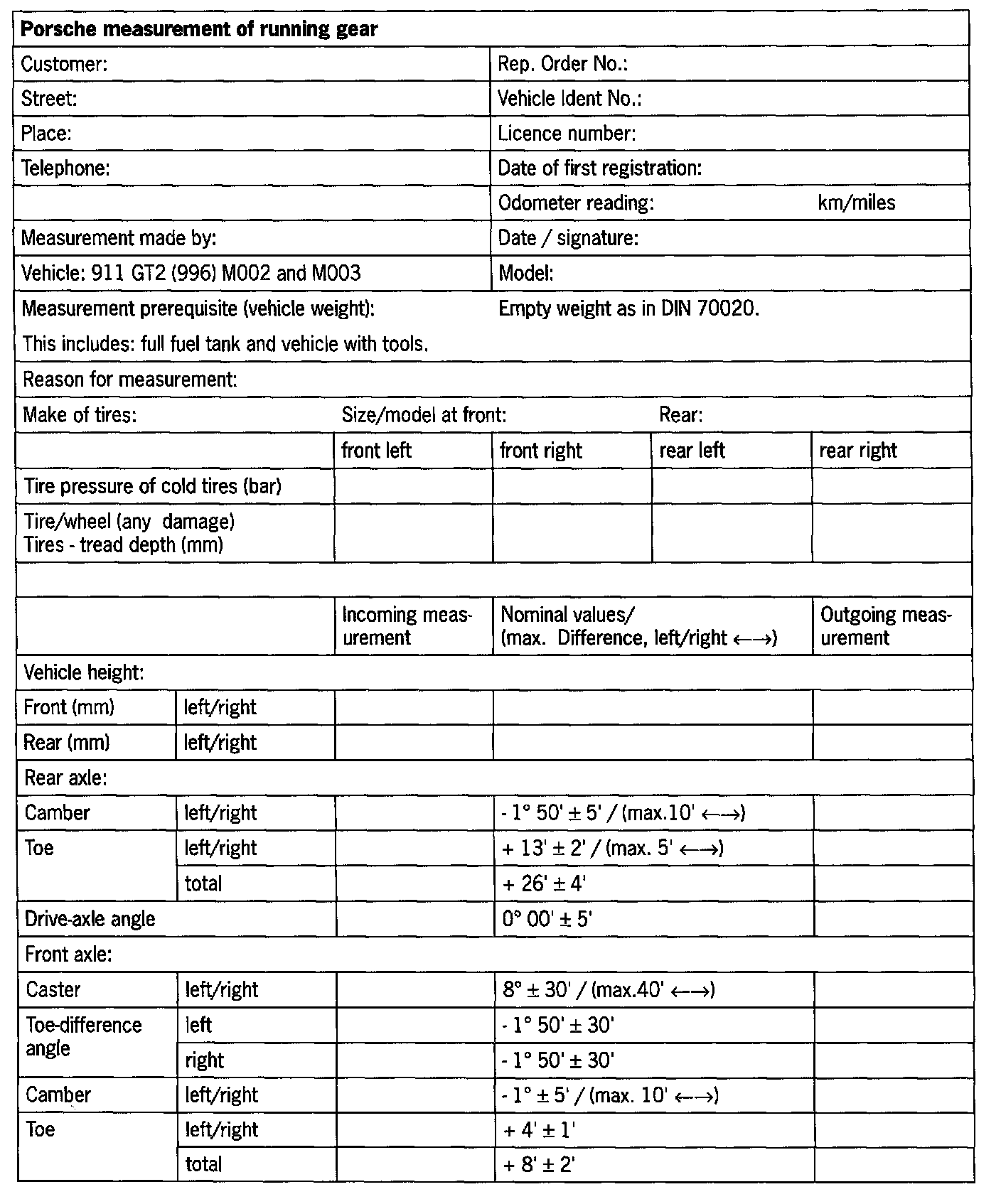

Alignment Card - GT2







Since mainly electronic wheel-alignment testers in conjunction with printers are used, a specimen alignment card is rarely required nowadays. In order for measured results to be documented in individual cases, however, a copy of the alignment card shown above can be used.

NOTE:
- In practice this means that alignment cards cannot be ordered.
- The alignment cards can be used for all 911 GT2 (996), M002 = street vehicle and M003 = Club Sport version.

1. Prepare copies of the corresponding alignment card shown.
2. Before measurement, enter the general data, vehicle model and the missing nominal values into the copied alignment card.

NOTE: Actual values that are identical in all versions have already been entered.

3. Enter the appropriate version, e.g. M002 or M003, in the Model column.
4. Carry out incoming measurement (actual state) and enter the values in the alignment card.
5. After adjustments (if these were necessary), enter the actual values in the column Outgoing measurement.
