General Data
Technical data - GT2

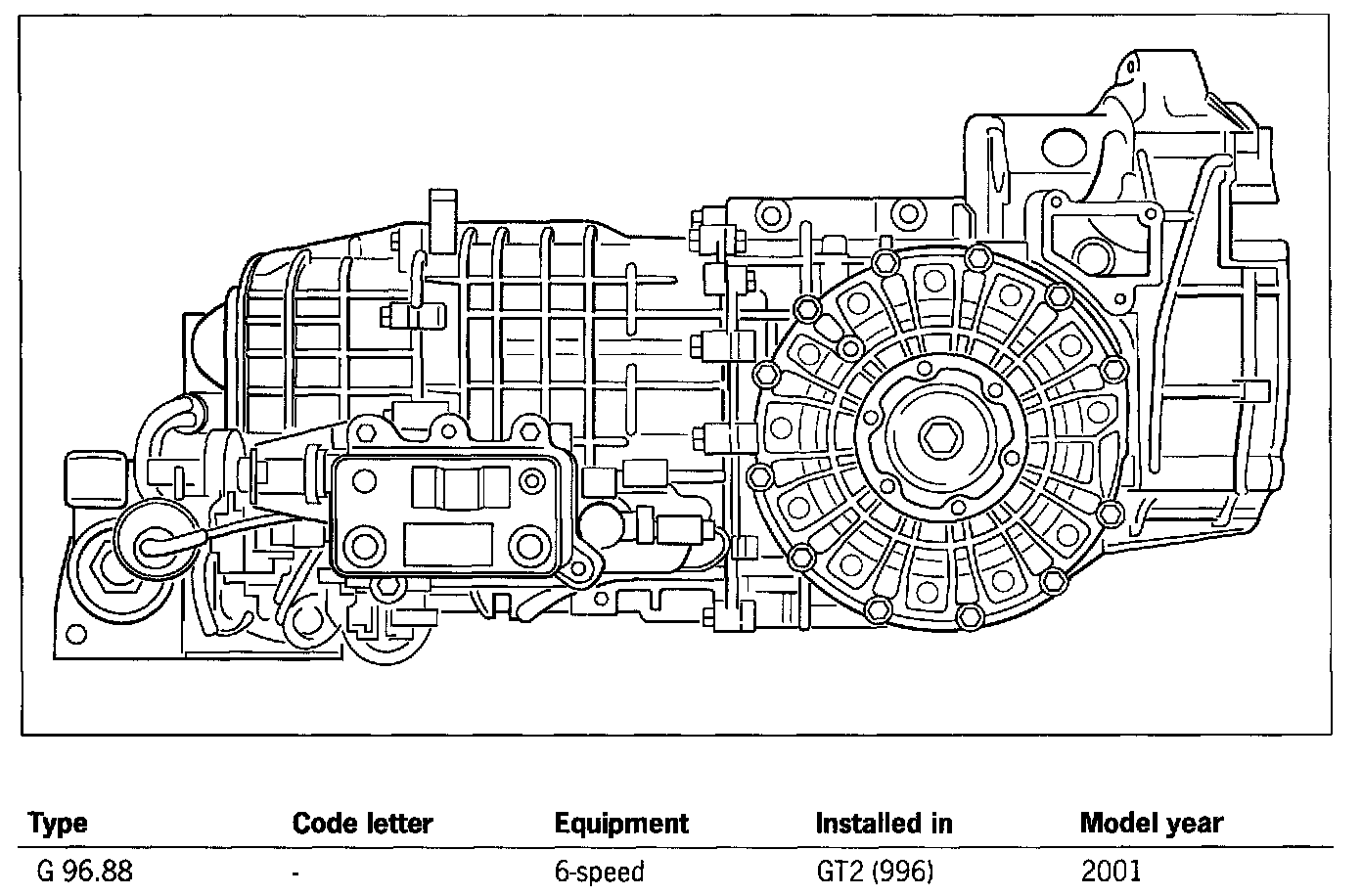

6-speed manual transmission G 96.88
General data Manual transmission G 96.88
Transmission ratios Z1 : Z2 = Z2 : Z1
1. gear 11 : 42 = 3.82
2. gear 21 : 43 = 2.05
3. gear 27 : 38 = 1.41
4. gear 34 : 38 = 1.12
5. gear 37 : 34 = 0.92
6. gear 40 : 30 = 0.75
Reverse gear 14 : 40 = 2.86
Final drive Hypoid bevel gear drive with 10 mm offset
Transmission ratio, final drive 9 : 31 = 3.44
Filling capacity for new filling 3.7 l + 0.1 l
Change quantity 3.7 l + 0.1 l
