Cabin Temperature Sensor / Switch: Service and Repair



Removing And Installing Interior Temperature Sensor

Removing interior temperature sensor
1. Pull off cover for temperature sensor.
2. Undo three Torx screws of the right side vent and carefully pull the side vent out of the dashboard. One Torx screw is located behind the cover.

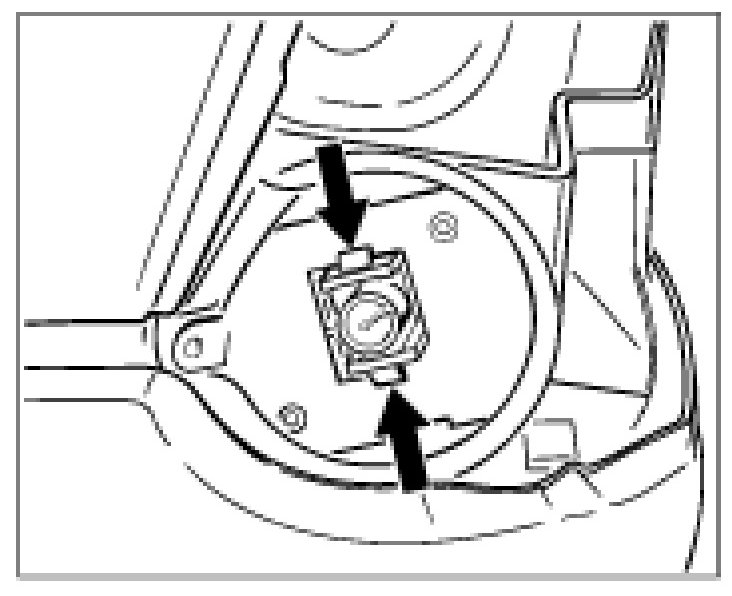

3. Press locking tabs together slightly and remove temperature sensor from the dashboard.







4. Pull off electrical plug connection.

Installing interior temperature sensor
1. Engage electrical plug connection, ensuring that the temperature sensor is seated properly in the dashboard.
2. The cover simultaneously serves as the intake grille for the fan and must not be closed off.
