General

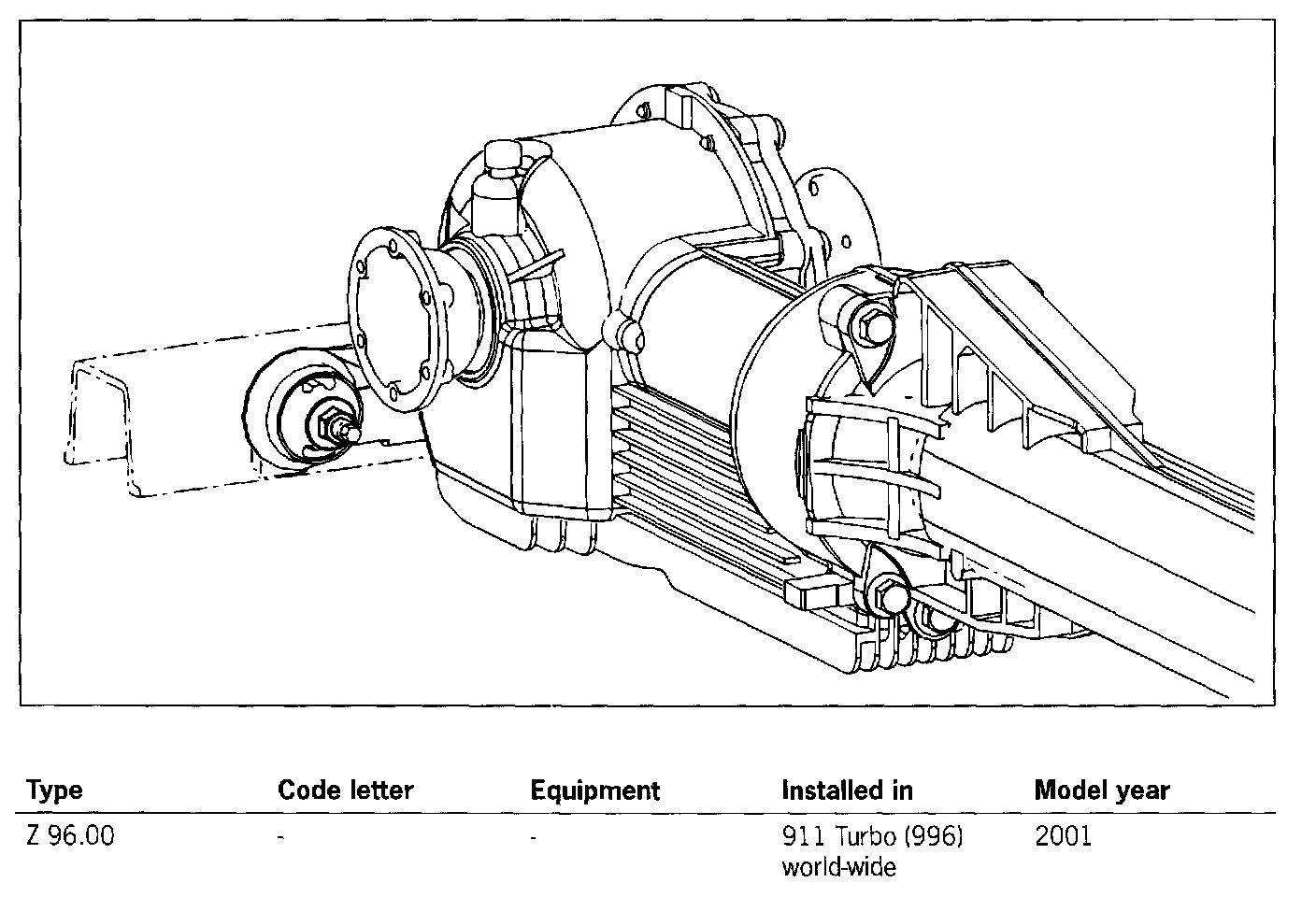

Front Wheel Drive Z 96.00

General data Front-axle final drive Z 96.00
Transmission ratio, final drive 31 : 9 = 3.44
(Z2 : Z1 = i)
Final drive Bevel gear drive without hypoid offset
Filling capacity approx. 1.5 l
