Cabin Temperature Sensor / Switch: Service and Repair

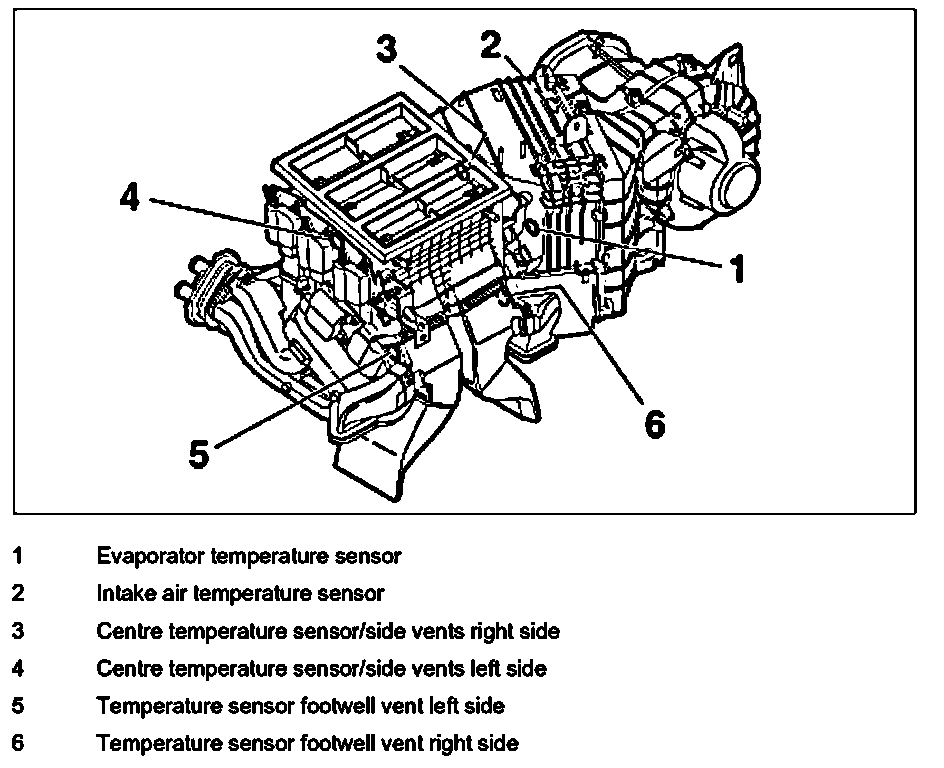

Intake Air Temperature Sensor







NOTE: Before removing the temperature sensors/interior temperature sensors, switch off the ignition and remove the ignition key.


- Remove the trim from under the right dashboard.

1. Removing the intake air temperature sensor.

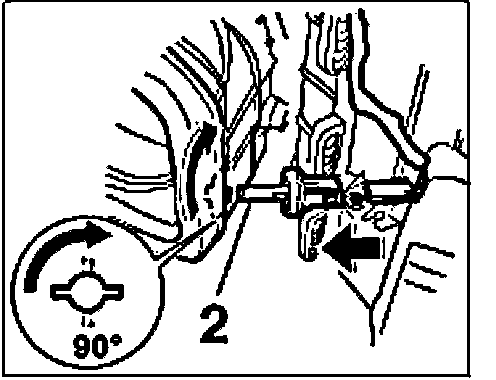

a. Turn temperature sensor -2- 90° and remove from the heating/air-conditioning unit.

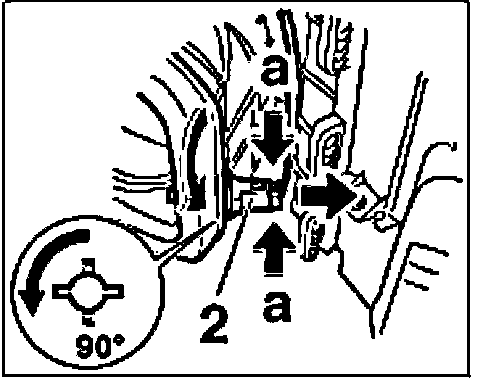

b. Press latch on the electrical connector for the sensor -2- -a- and pull off the connector.

2. Installing the intake air temperature sensor.







a. Insert the electric plug into the sensor -2- until it clicks into place.
b. Slide in the temperature sensor -2- into the heating/air-conditioning unit and turn 90°.

- Install the trim under the right dashboard.
