Climate Control Exhaust Gas Sensor: Service and Repair

Removing and Installing Air Quality Sensor

NOTE: The air quality sensor is located in the direction of travel tucked under the cowl panel cover on the left side.

Removing Air Quality Sensor
1. Partially detach the cowl panel cover. Release fastening screws and lift the cover.

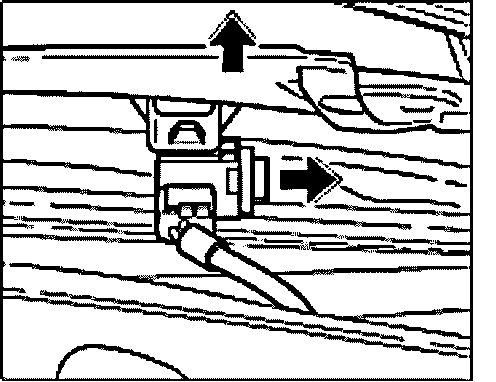

2. Lift cover -arrow- and pull off sensor from holder -arrow-.

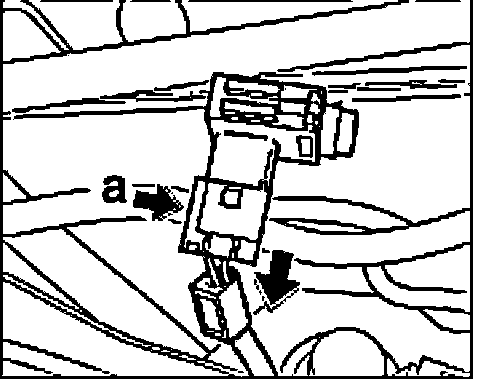

3. Release plug -a- and remove from sensor.

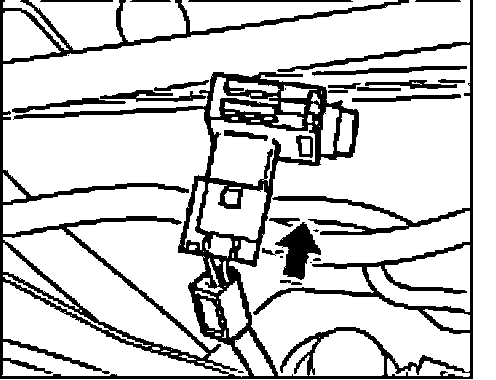

4. Remove air quality sensor.

Installing Air Quality Sensor







1. Push plug onto air quality sensor until it is felt to engage.

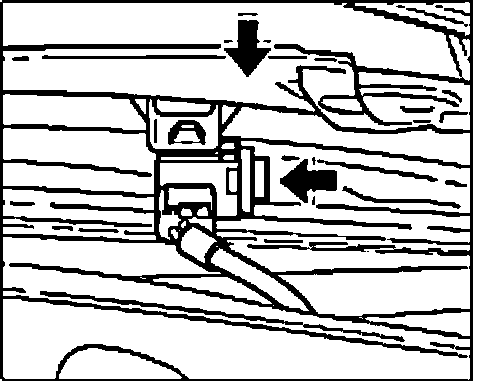

2. Push sensor onto holder - cowl panel cover. Check it is secure.
3. Position cowl panel cover and fix with the fastening screws.
