Map Light Bulb: Service and Repair

Removing And Installing Bulb For Reading Light







Removing Bulb For Reading Light
Switch the ignition off and remove ignition key.

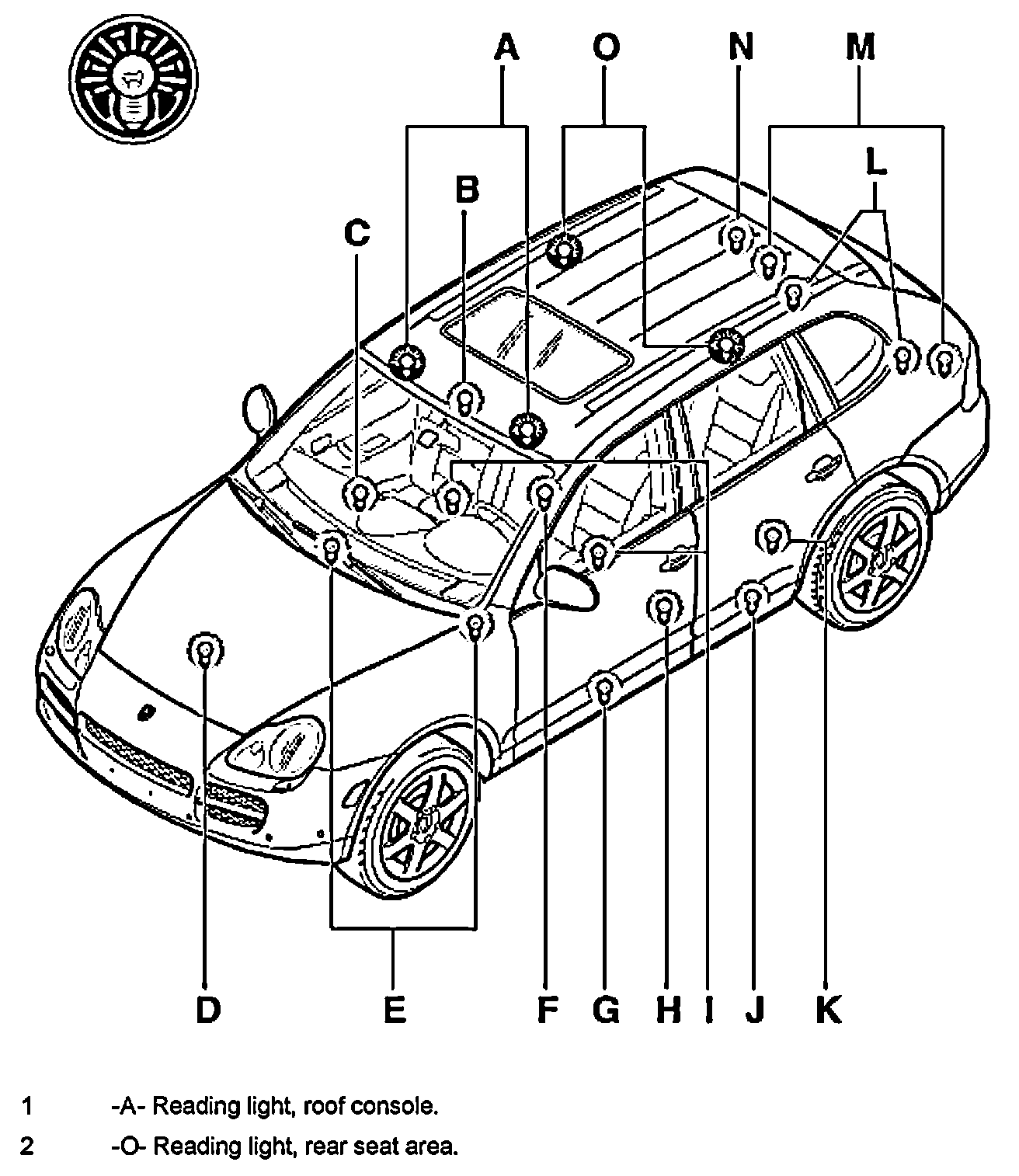

Reading light, roof console

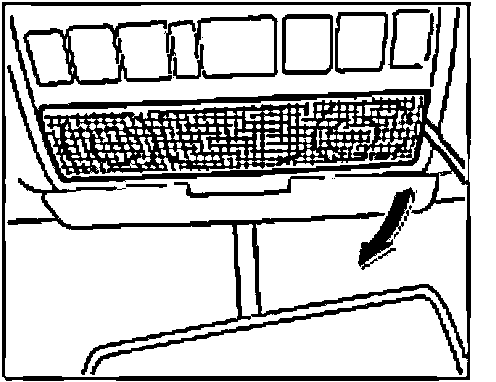

1. Use a plastic spatula or screwdriver to pry out the light cover.

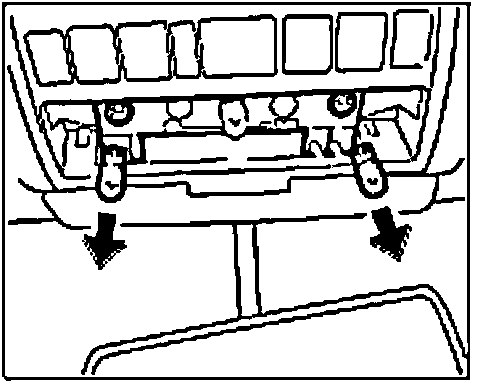

2. Remove the defect bulb on the left or right.

Reading light, back seat area

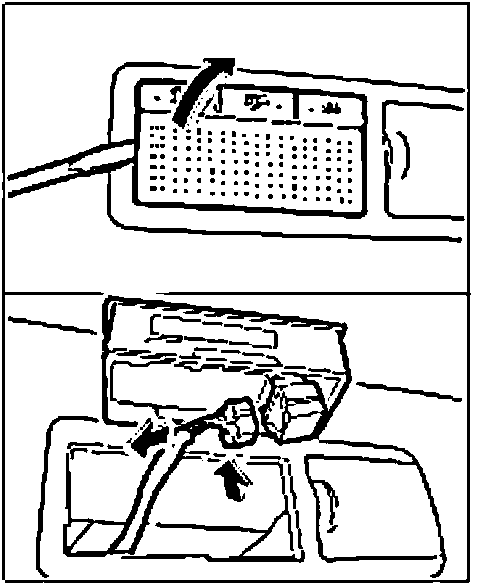

1. Use a plastic spatula or screwdriver to pry out the light cover.
2. Press the electrical plug in and then pull the connector off.

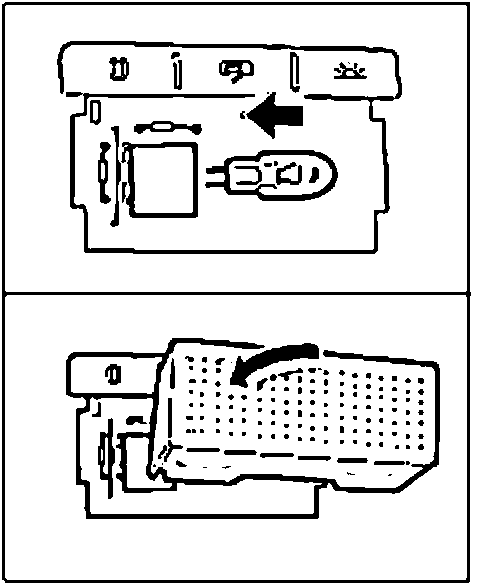

3. Remove the light unit and take off the cover.
4. Remove the bulb from the holder.

Installing Bulb For Reading Light

Reading light, roof console

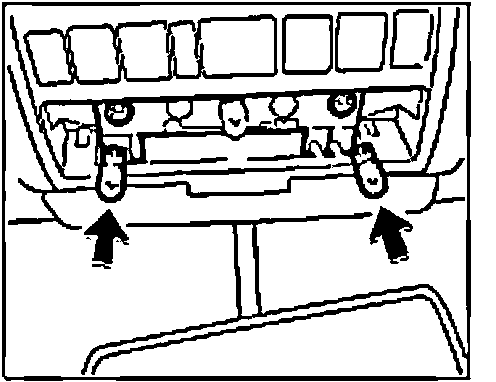

1. Insert the new bulb in the holder.







2. Position the bulb cover and press until the cover engages.

Reading light, back seat area







1. Insert the new bulb in the holder.

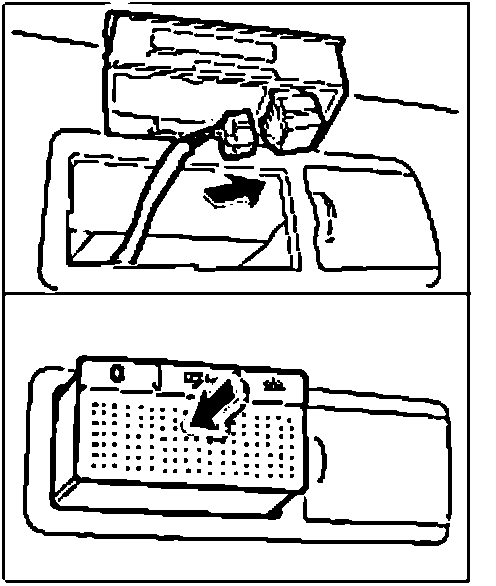

2. Position the cover and press in place.







3. Connect the electrical plug, pressing on until it audibly clicks into place.
4. Insert the light unit up to the stop.
