Maintenance: Service and Repair

Diagnosis Maintenance: Diagnosis System

Reading out fault memory

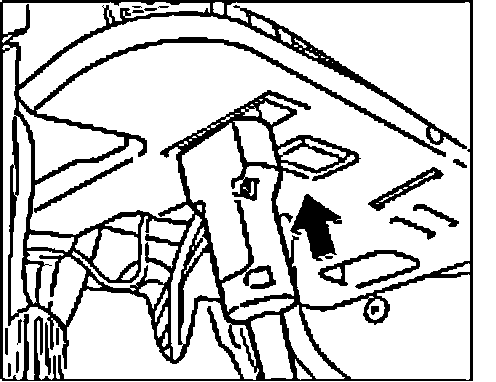

Porsche System Tester is connected to the vehicle via a 16-pin diagnosis socket. The diagnosis socket is located inside the vehicle below the instrument panel near the driver (left-hand drive vehicles) or the passenger (right-hand drive vehicles) -Arrow-.

1. Start Porsche System Tester (PST) and follow the instructions on the Tester.
2. Select vehicle type, click [>>] and perform the automatic control module search.
3. If a star appears in front of the relevant control module, read out the fault memory. Follow the PST instructions.
