Fuse Carrier/Support Location




Fuse Carrier

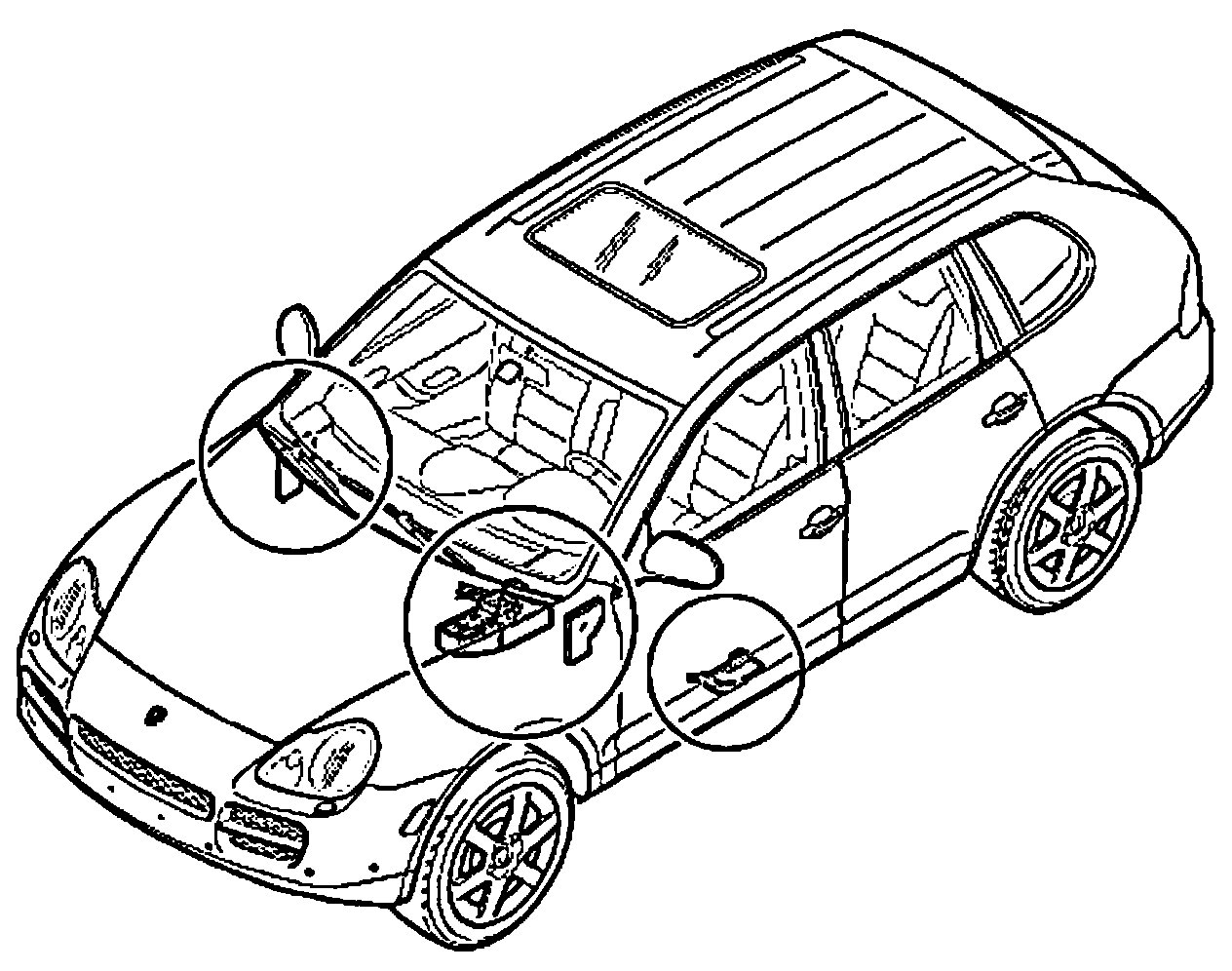

The Cayenne has fuse boxes at the right and left sides of the dashboard, in the water tank, the E-box and current distributor.


Fuses

WARNING: Risk of destruction of electrical and electronic components: Before a Maxi "A" and A to "B" fuse is removed, switch off the ignition and remove the ignition key.

There are 4 different types of fuse deployed in the Cayenne.




The fuse carriers in the right and left of the dashboard, in the water tank and E-box contain fuses of the type Maxi "A" and A to "B".

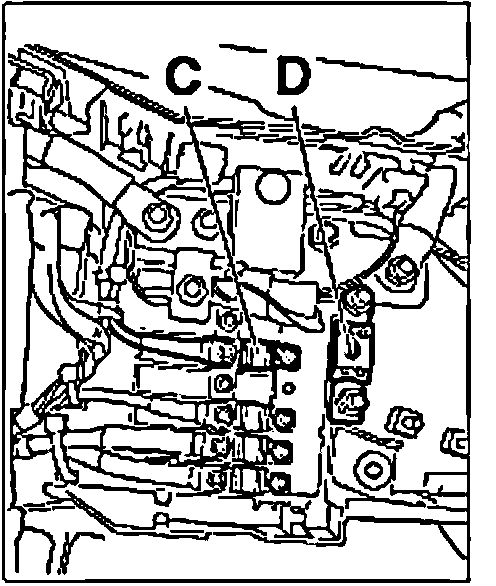

The current distributor mainly contains fuses (fusible elements) of the type "C" Midi and "D" Mega.
