Washer Fluid Level Switch: Service and Repair

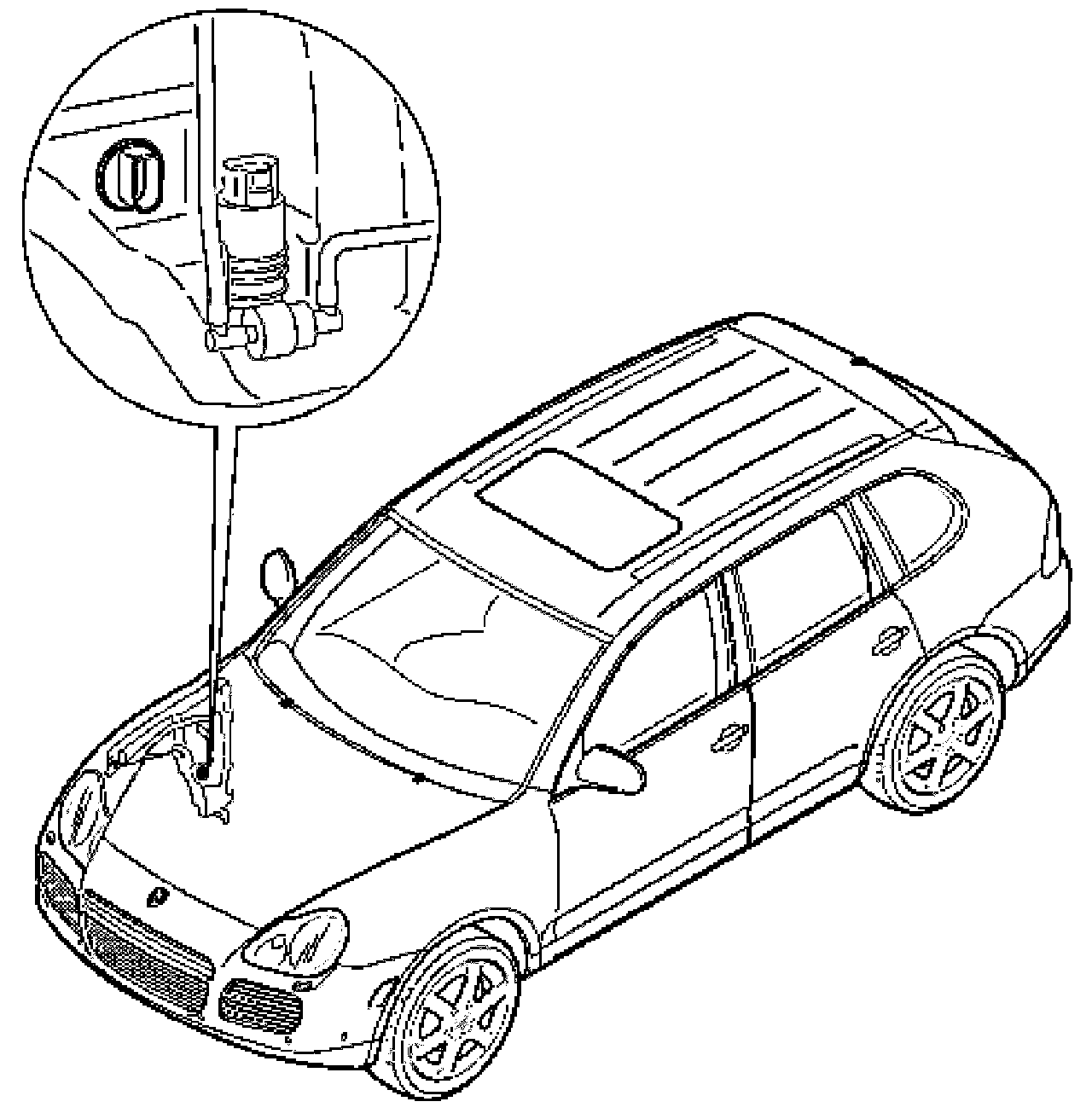

Removing And Installing Fluid Level Indicator







Removing Fluid Level Indicator
Remove front right wheel housing liner.
Remove tank for windscreen washer system.

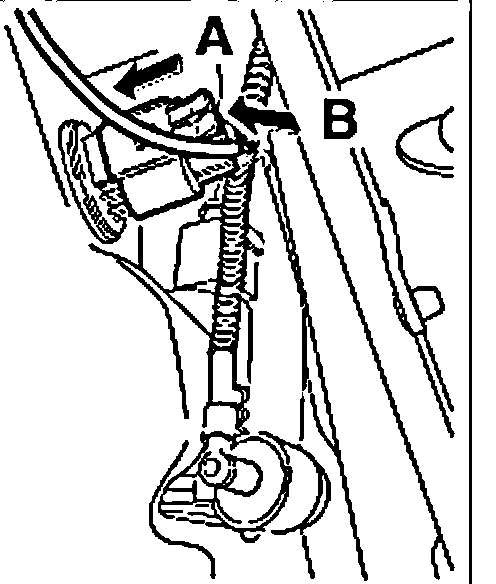

1. Release plug "arrow A" and pull it out "arrow B".

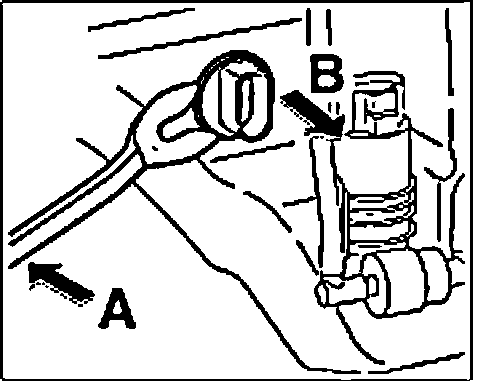

2. Lever sensor out of the rubber seal "A" "B".

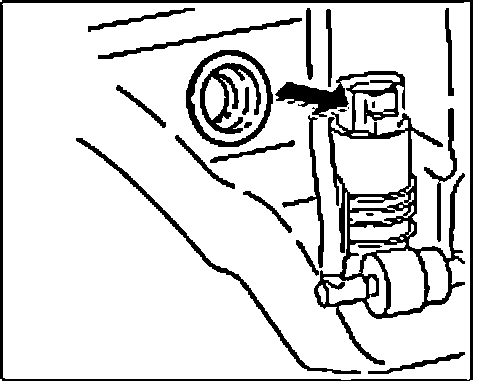

3. Remove rubber seal "arrow".

Installing Fluid Level Indicator

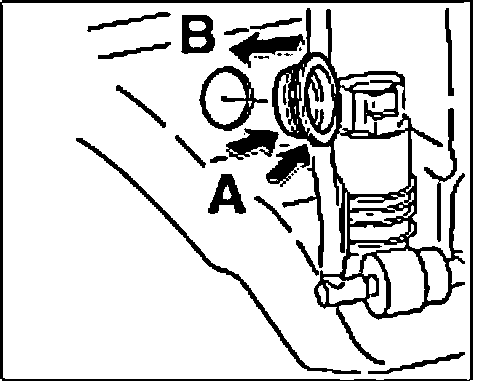

1. Apply a suitable rubber lubricant (tyre mounting paste) to the sealing surface "A" and press the rubber seal into the tank "B" until it engages audibly.

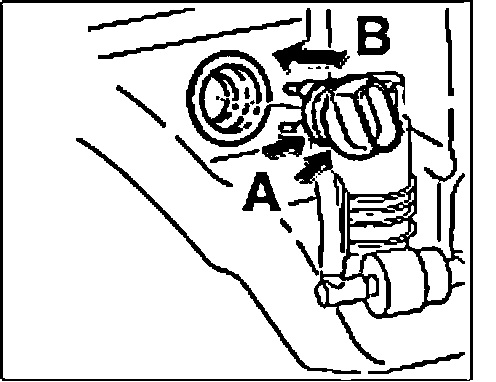

2. Apply a suitable rubber lubricant (tyre mounting paste) to the sealing surface "A" and press the sensor into the rubber seal "arrow B" until it engages audibly.

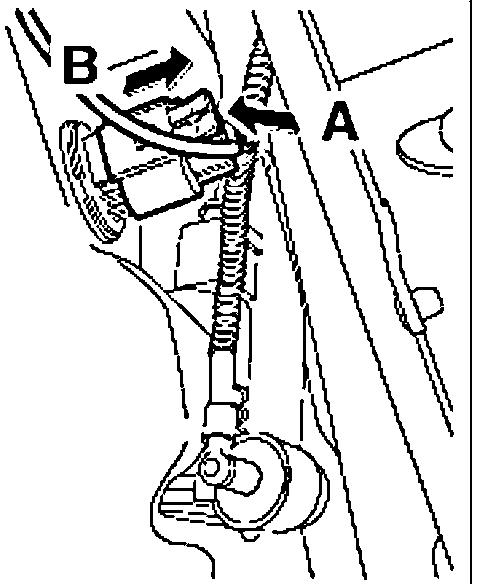

3. Connect the plug to the sensor "arrow A" until the lock "B" engages audibly.

Install tank for windscreen washer system.
Install the front right wheel housing liner.
