Repairing the Threaded Bushing for Suspension Subframe Installation

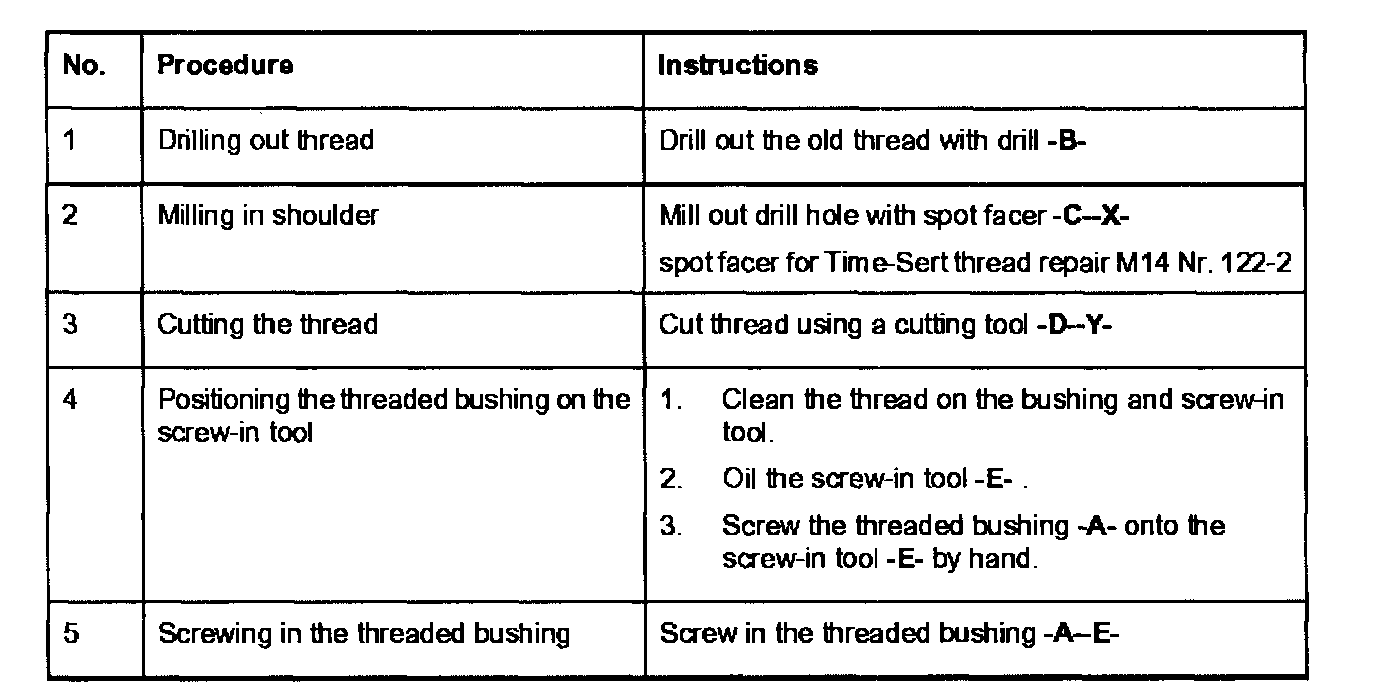

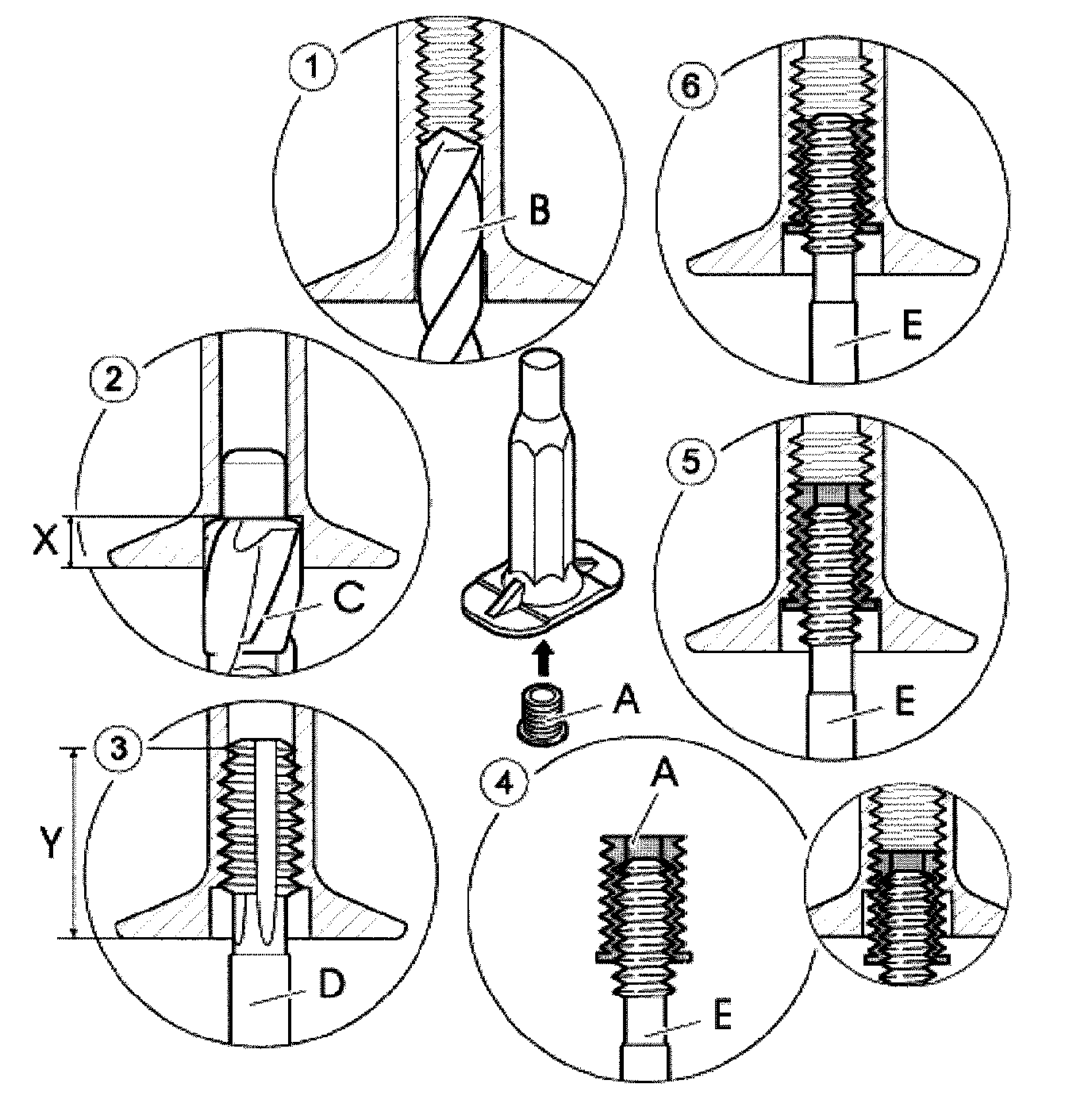

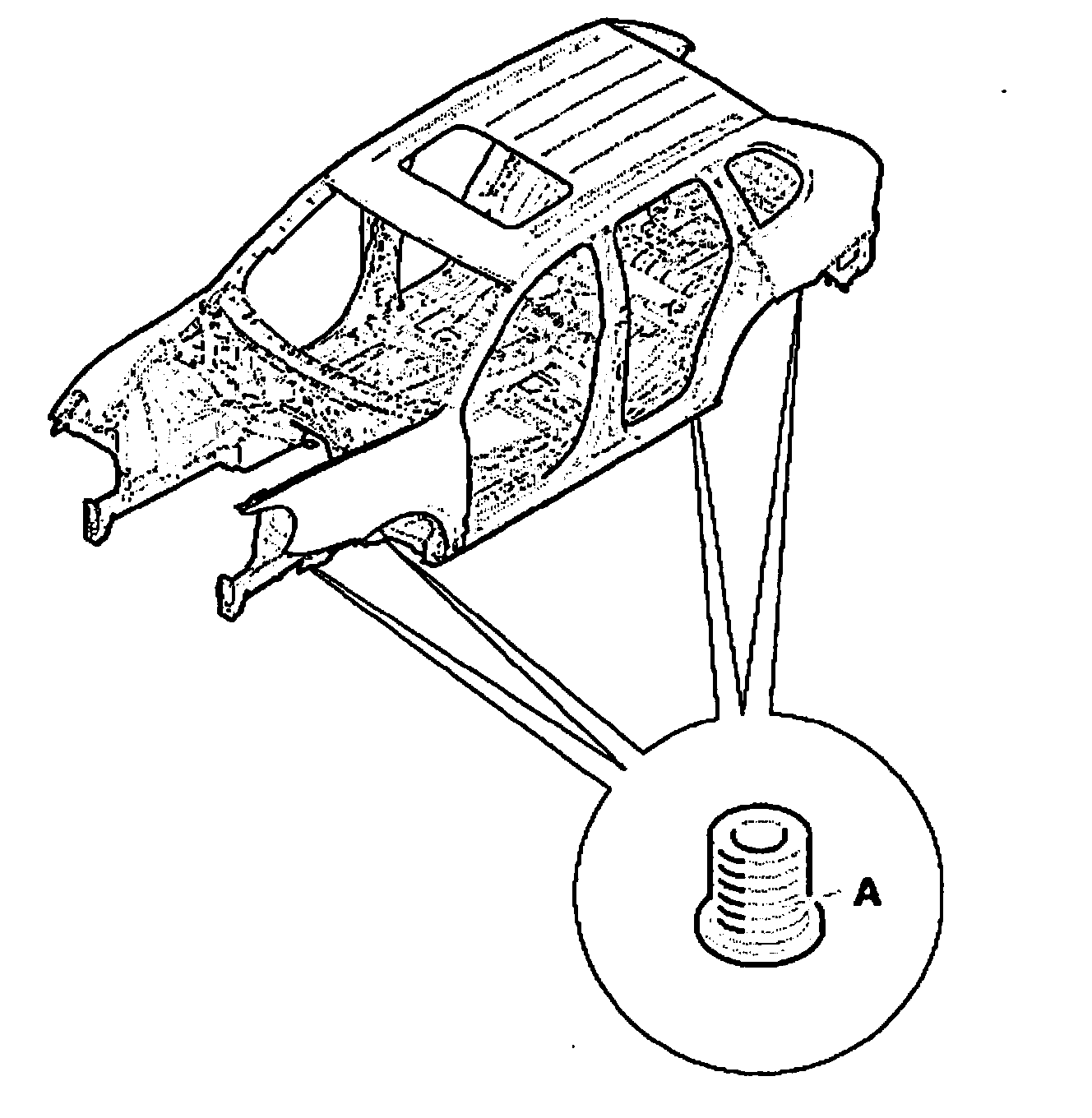

Installing the repair threaded bushing







NOTE: The repair bushing must be installed recessed. To mill in the respective shoulder, the tool with the designation Spot facer for Time-Serf thread repair M14Nr. 122-2 must be used. The tool provided with the complete set supplied must not be used in this case.

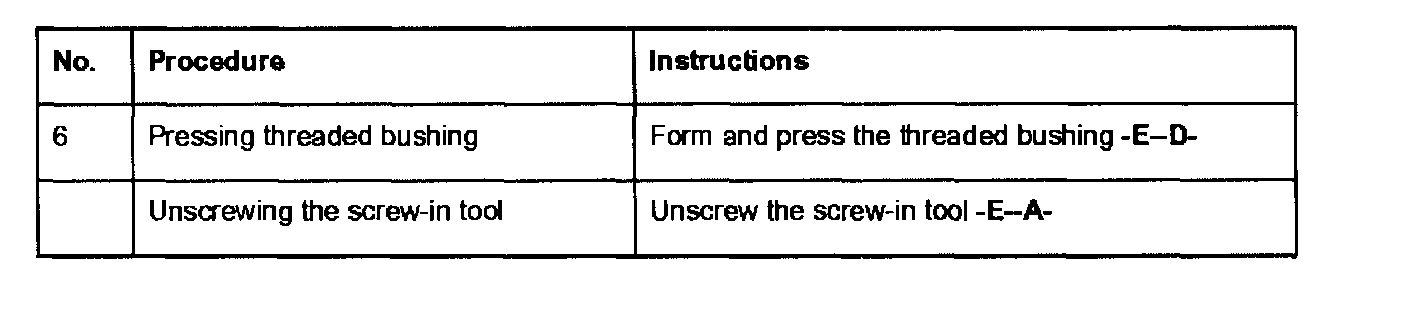

NOTE: While pressing in the base thread, a noticeably larger amount offeree on the screw-in tool is required to form the internal thread. Pressing is finished when the screw-in tool can be turned further more easily.

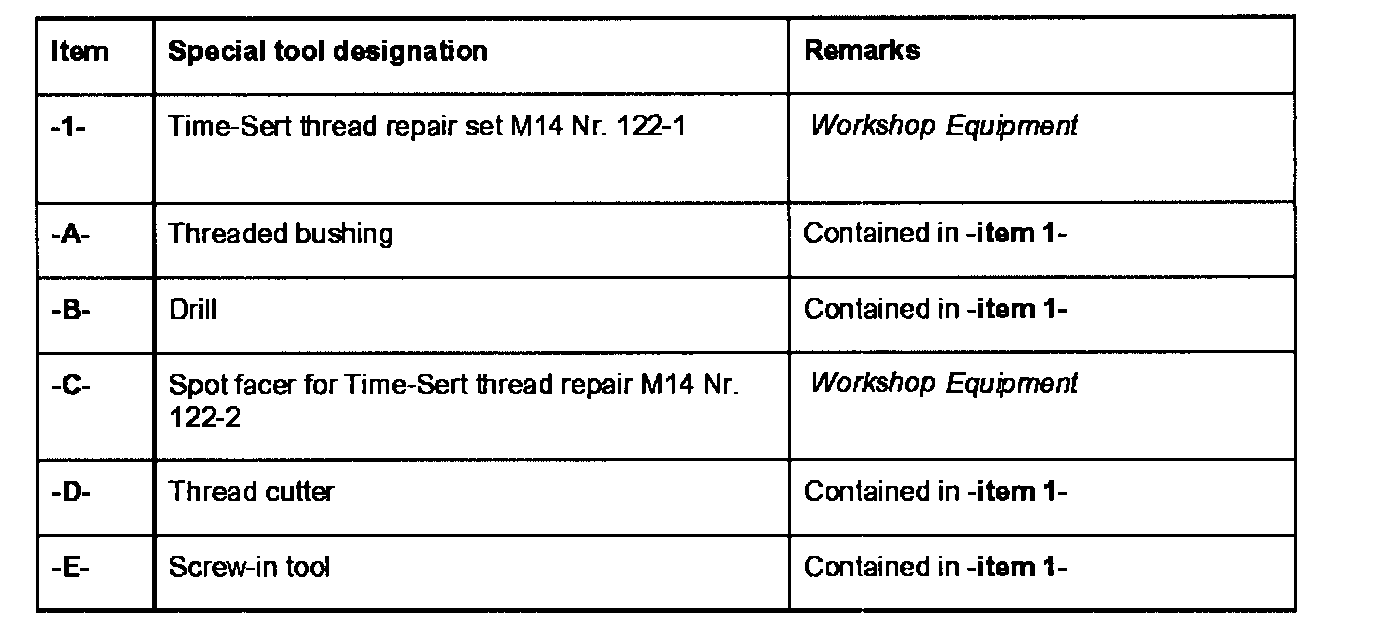

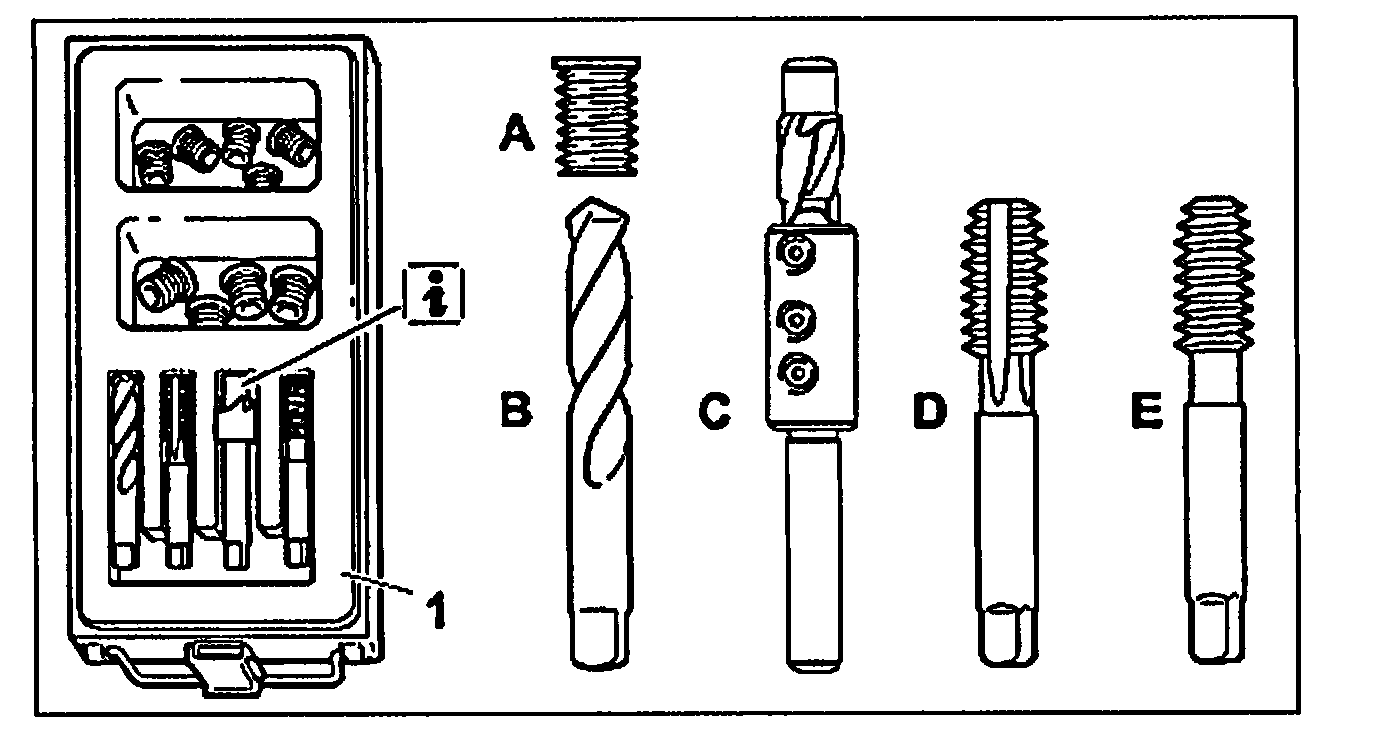

Tools and materials







NOTE: To mill in the respective shoulder, the tool with the designation Spot facer for Time-Serf thread repair M14 Nr. 122-2 must be used. The tool provided from the complete set supplied must not be used in this case.

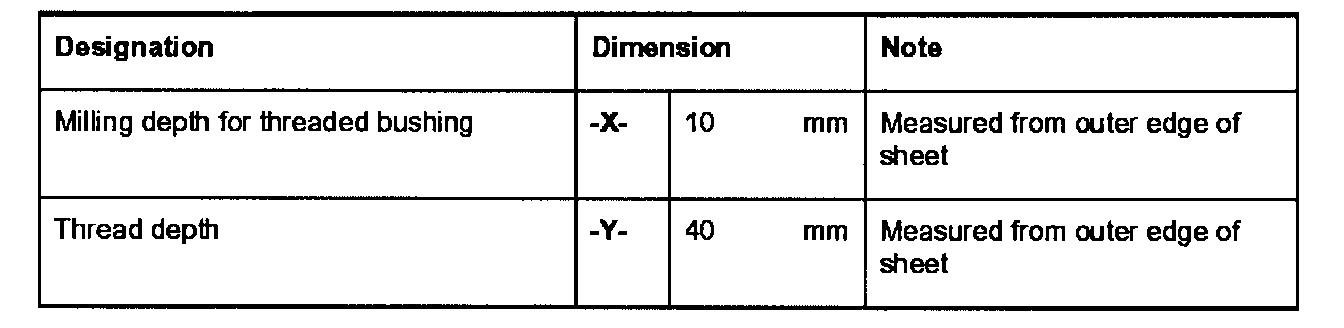

Test and adjustment values
