Rear Power Window Switch

Removing and Installing Switch for Rear Power Window
Switch off ignition and remove ignition key before starting removal operations.

Removing switch for rear power window

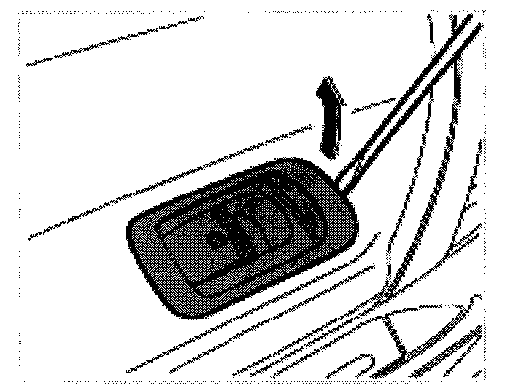

1. Lever out the entire power window switch using a plastic spatula.

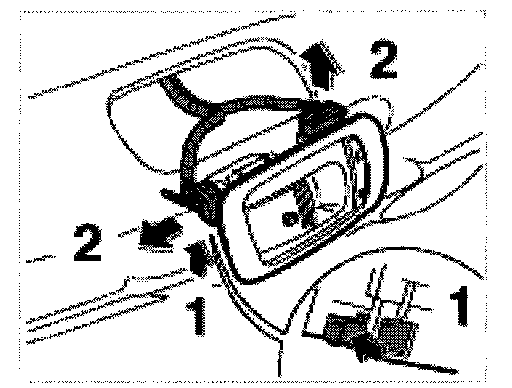

2. Press in -a- the electrical connectors -1, 2- and remove both connectors from the power window switch.

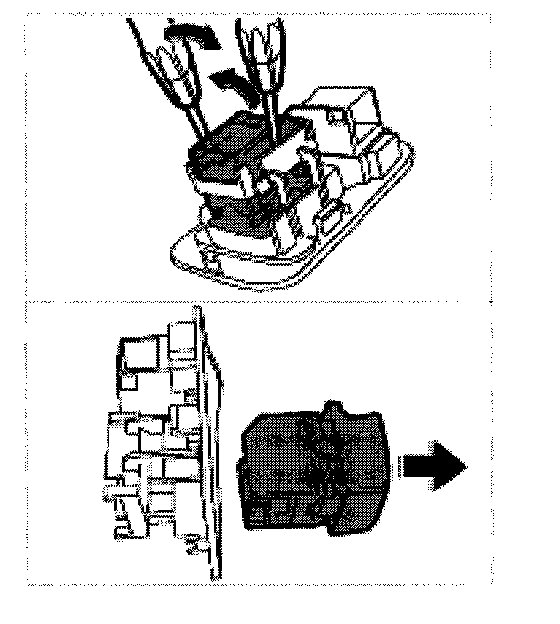

3. Lever the switch out of the retaining bracket with a screwdriver.
4. Remove power window switch from the retaining bracket.

Installing switch for rear power window

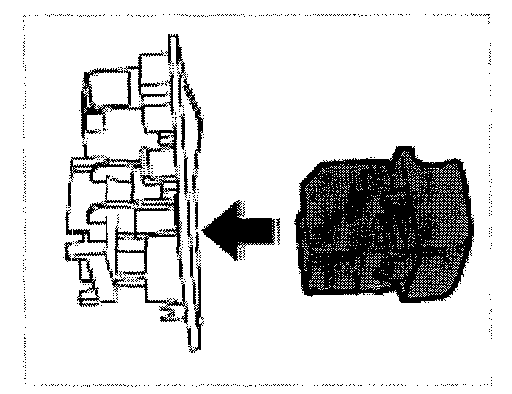

1. Insert the power window switch in the retaining bracket until it clicks into place.

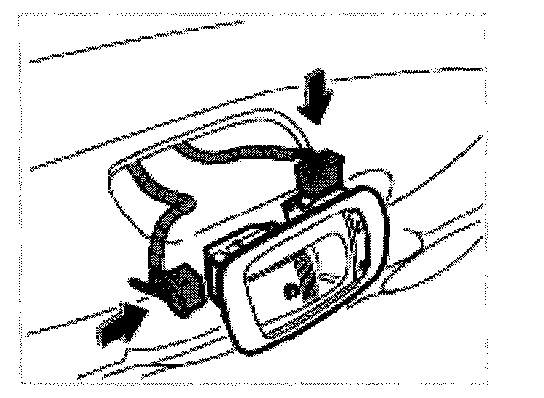

2. Insert the electrical plug connection in the power window switch until it clicks into place.

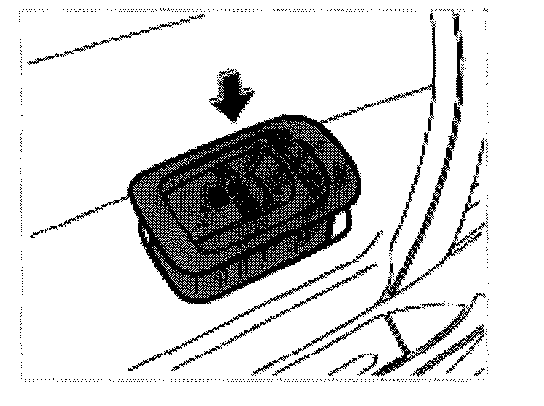

3. Position the power window switch in the door trim panel and press it in.
4. Make sure that the power window switch is positioned evenly on the gap.
