Control Assembly: Adjustments

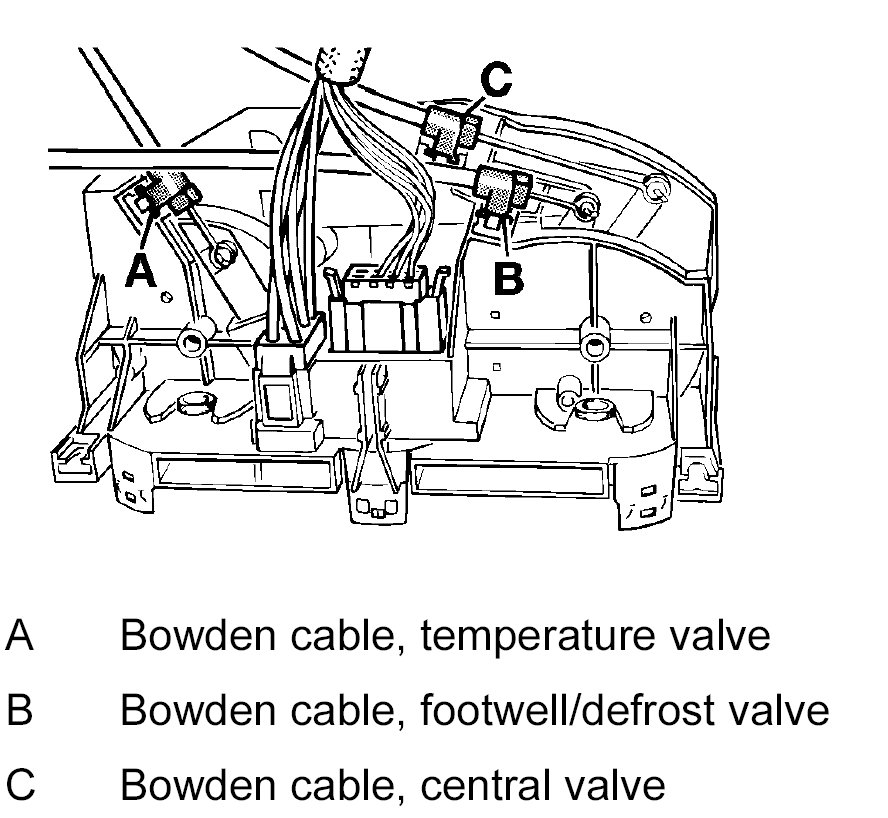

Installing And Adjusting Bowden Cables Of The Heating/fresh-air Control

NOTE: Install the heating/fresh-air control with installed bowden cables. The sleeves of the bowden cables are adjusted at the fastening points on the heating/fresh-air unit.







Adjusting temperature valve

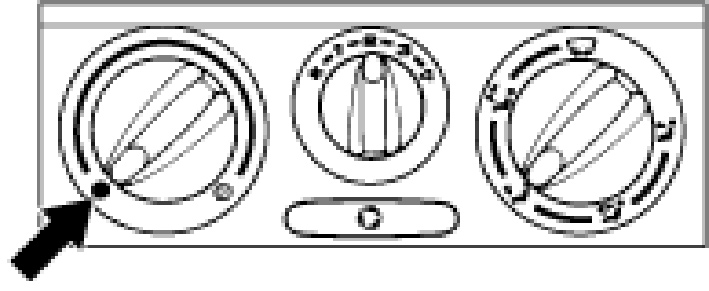

1. Turn temperature control to left-hand stop (cold). Temperature valve closed; no passage to the heat exchanger.







2. Engage bowden cable in the adjusting lever.

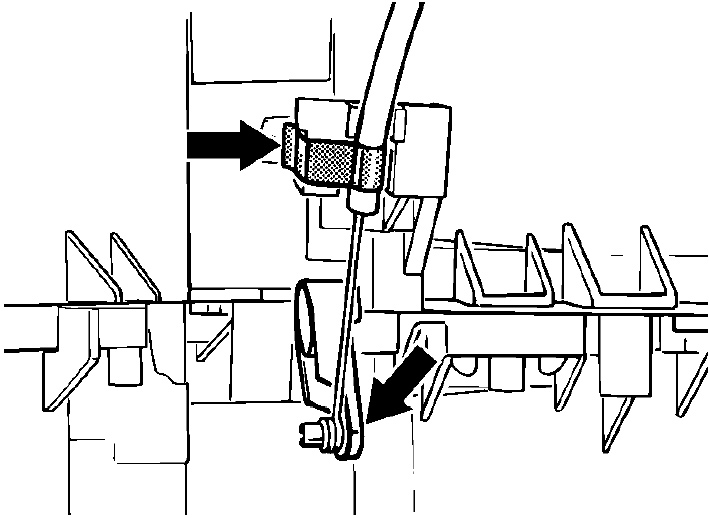

3. Push adjusting lever of the temperature valve up to its stop and use the retaining clip to fasten the sleeve of the bowden cable on the fastening point.







Adjusting footwell/defrost valve

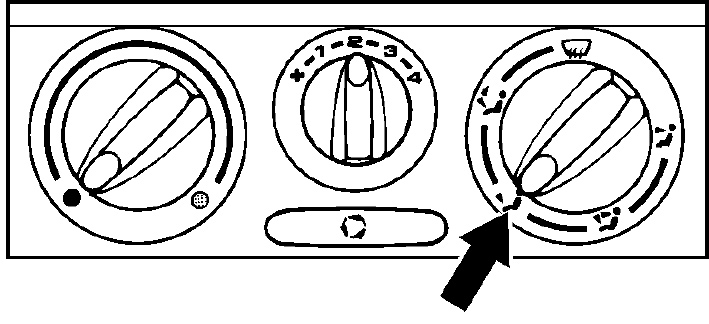

1. Turn rotary knob for air distribution to the symbol for the footwell. Defroster outlet closed; no passage to the windscreen.







2. Engage bowden cable in the adjusting lever.

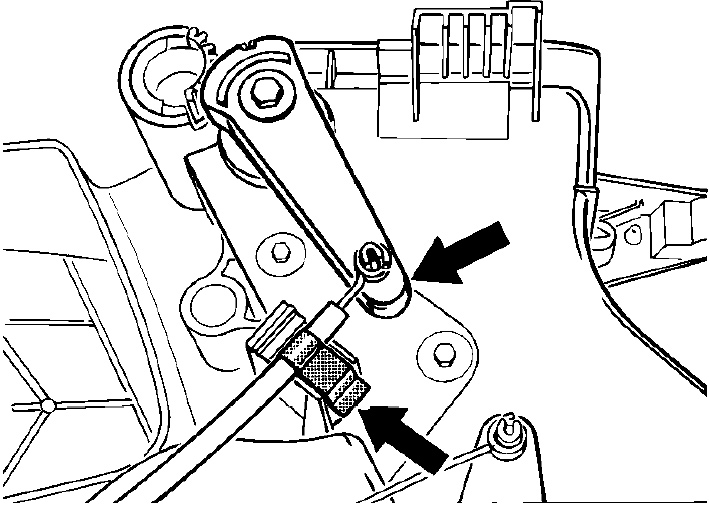

3. Push adjusting lever of the footwell/defrost valve up to its stop and use the retaining clip to fasten the sleeve of the bowden cable to the fastening point.







Adjusting central valve
1. Turn rotary knob for air distribution to the symbol for the footwell. Air outlet to the centre and side vents closed.
2. Engage bowden cable in the adjusting lever.

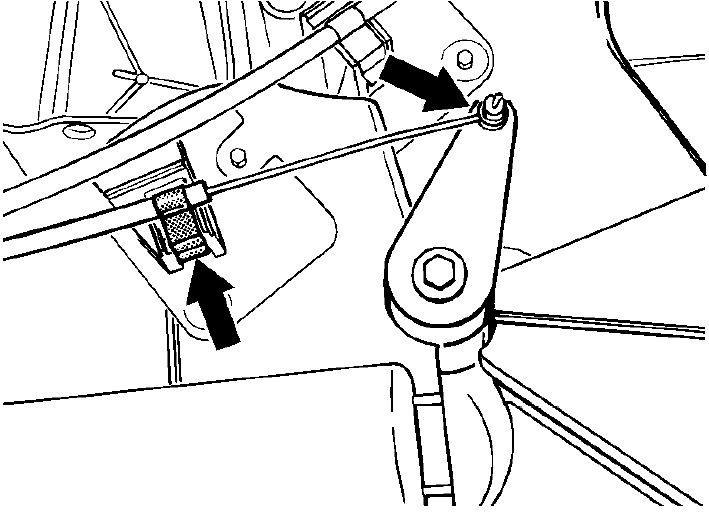

3. Push adjusting lever of the central valve up to its stop and use the retaining clip to fasten the sleeve of the bowden cable on the fastening point.

NOTE: Perform a function test after installing the bowden cables. Test limit position of the rotary knobs for air distribution and adjusting levers of the valves.
