Fluid - M/T: Service and Repair




Changing transmission oil - GT3

Total capacity: 3.3L +/- 0.1
Oil change quantity: 2.4L +/- 0.1

Note!
^ Use only oils approved for this type by Porsche.

Draining transmission oil - GT3
1. Remove rear, centre and left underbody trim.





2. Unscrew oil filler plug -1-.
3. Unscrew oil drain plug -2- and let oil drain off into a suitable container.

Topping up transmission oil - GT3
1. Clean the drain plug and filler plug.
2. Screw in oil drain plug again and top up oil to the bottom edge of the oil filler opening.
Tightening torque: 30 Nm (22 ft. lbs.)
3. Screw in oil filler plug.
Tightening torque: 30 Nm (22 ft. lbs.)
4. Fit underbody trim parts.

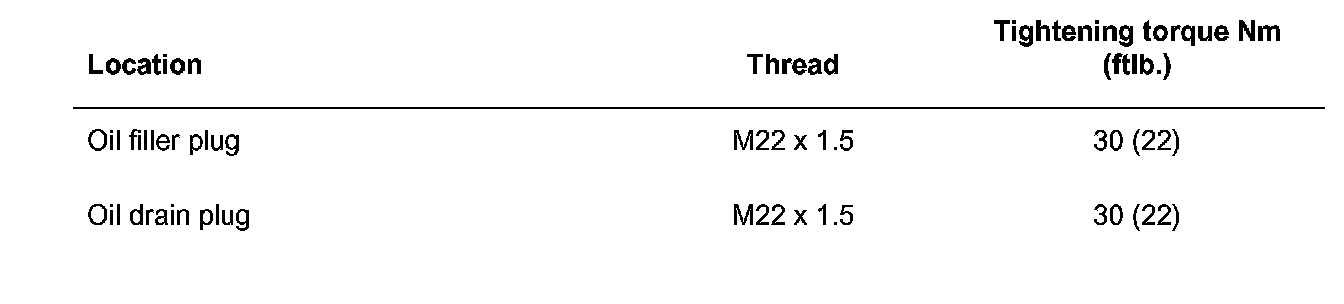

Tightening torques
