Front Fender: Service and Repair

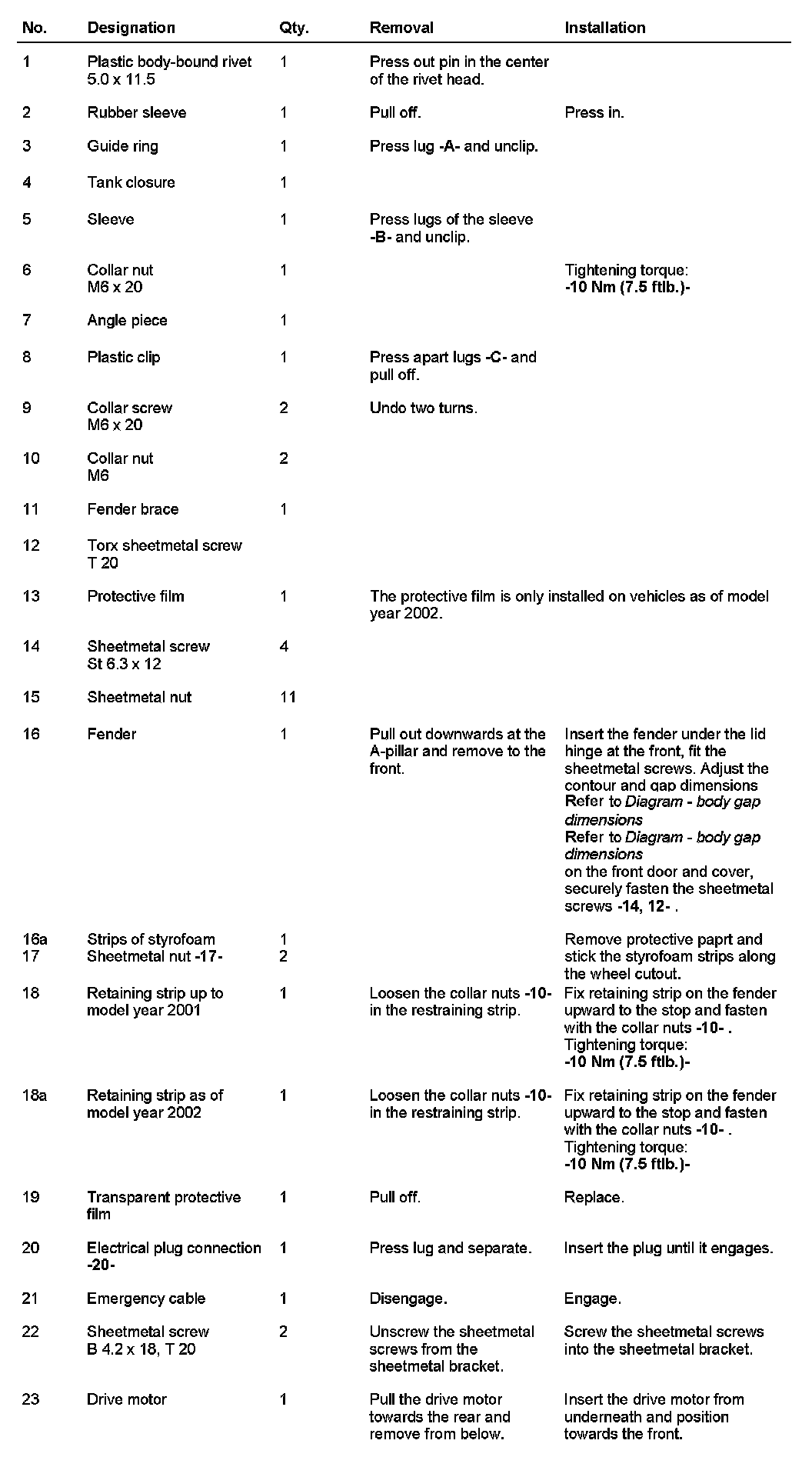

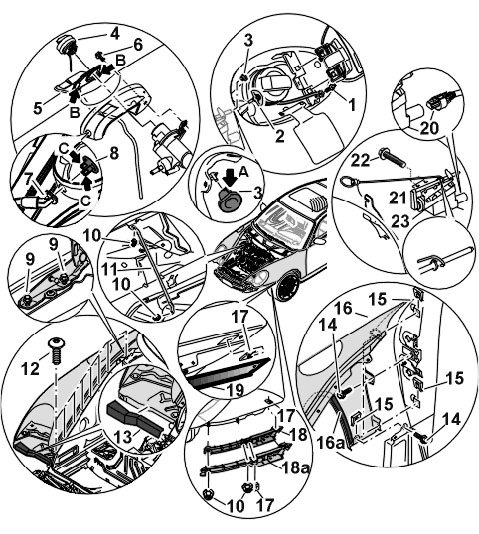

Removing And Installing The Fender










INFORMATION:
- Before removing the fender, the following parts must be removed:
- Refer to Removing and installing wheel.
- Refer to Removing and installing wheel housing liner - up to model year 2001.
- Refer to Removing and installing filler flap.
- Refer to Removing and installing headlight mount.
- Refer to Removing and installing main headlights.
- For the right fender, Refer to Removing and installing carbon canister.
- For the left fender, Refer to Removing and installing tank for windscreen washer system.
