Ambient Temperature Sensor / Switch HVAC: Service and Repair

Removing And Installing Outside Temperature Sensor

Removing and installing outside temperature sensor on the installed heating/air-conditioning unit

Removal
1. Remove footwell bulkhead and right air guide. Remove drive motor for fresh-air/recirculation valve.

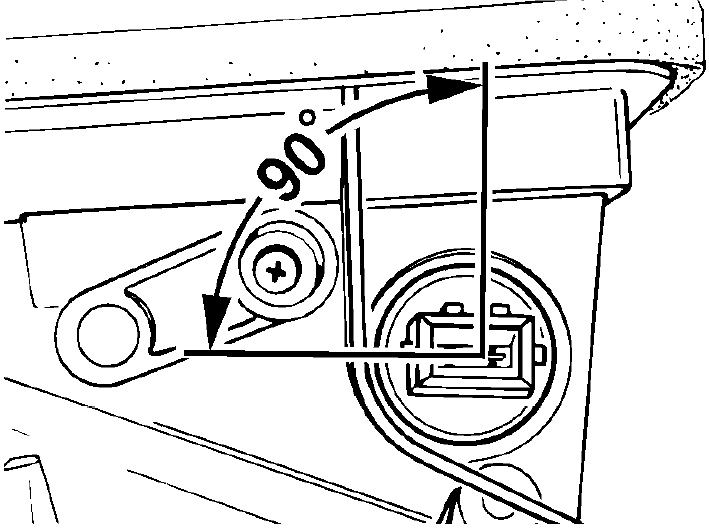

2. Pull off electrical plug connection on the outside temperature sensor. Turn temperature sensor by 90 and pull it out.







Installation
1. Place temperature sensor on the intake duct and turn by 90 (tighten).
2. Engage electrical plug connection and route wire carefully.
3. Install drive motor for fresh-air/recirculation valve and perform a function test.
