Turn Signals: Service and Repair

Removing And Installing Bulb For Side Direction Indicator Light

Removal
1. Insert a screwdriver in the upper slot between the wheel housing liner and the direction indicator light housing. Unclip the retaining spring of the direction indicator light housing by pressing with the screwdriver.
2. Release and pull off electrical plug connection. Turn bulb socket counter-clockwise and remove (bayonet lock).
3. Remove defective bulb.

Installation
1. Insert new bulb in the bulb socket and install (bayonet lock).

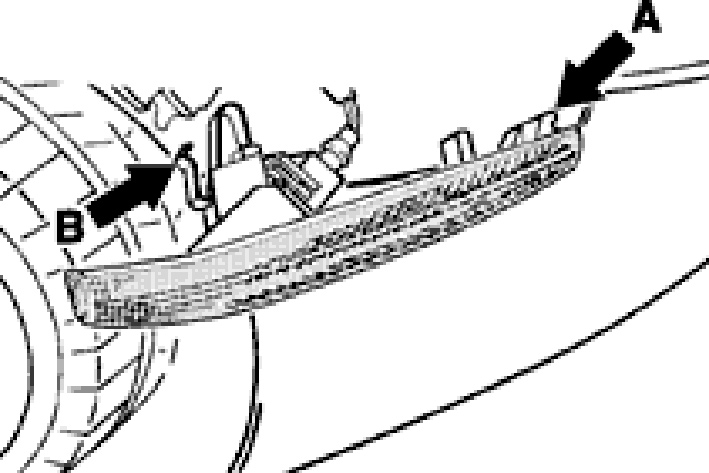

2. Engage electrical plug connection and install direction indicator light. Insert tabs of direction indicator light (arrow A) forwards into the wing. Engage retaining spring (arrow B) in the wing.







3. Perform a function test.
