Connector Diagrams and Ground Points



Connector Diagrams And Ground Points

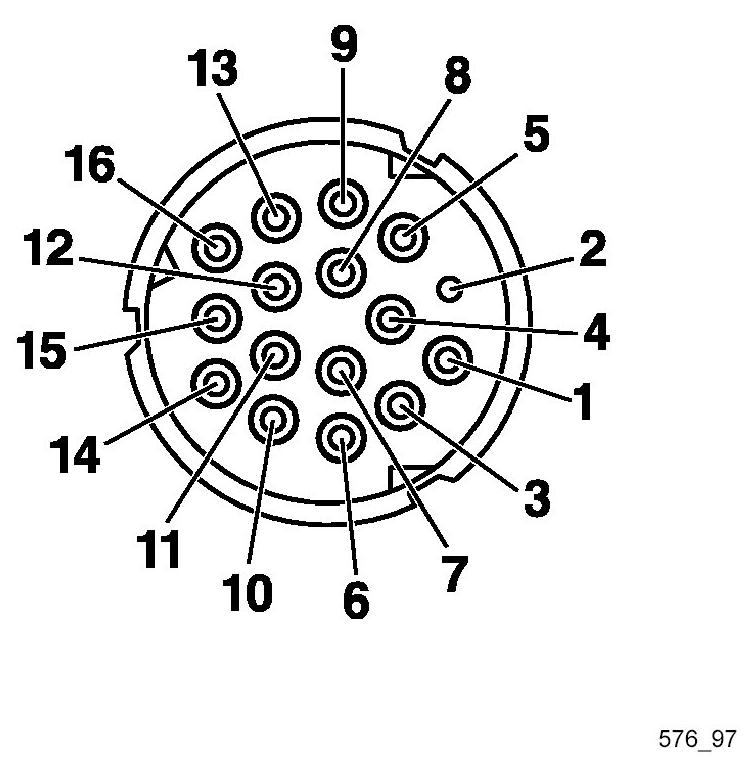

Transmission plug

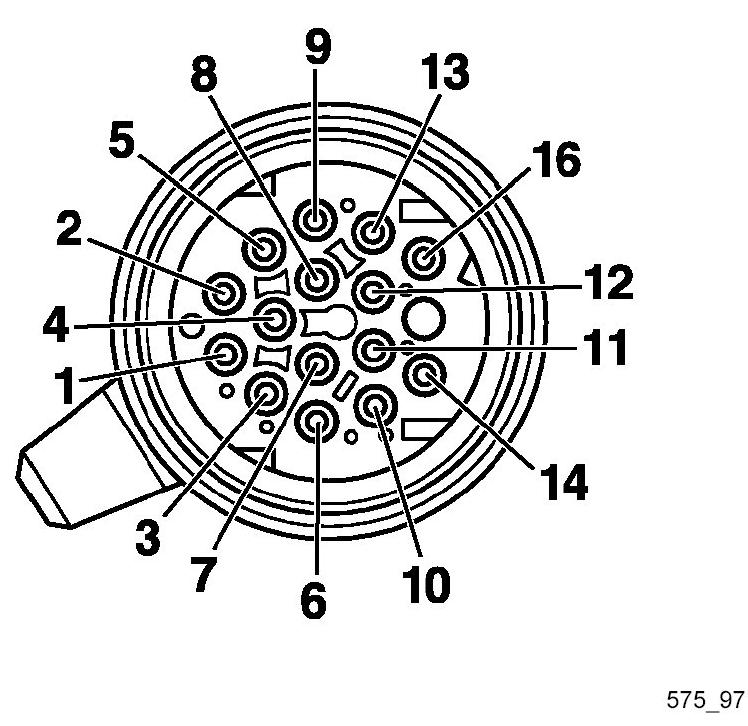

Transmission socket







Ground point 4

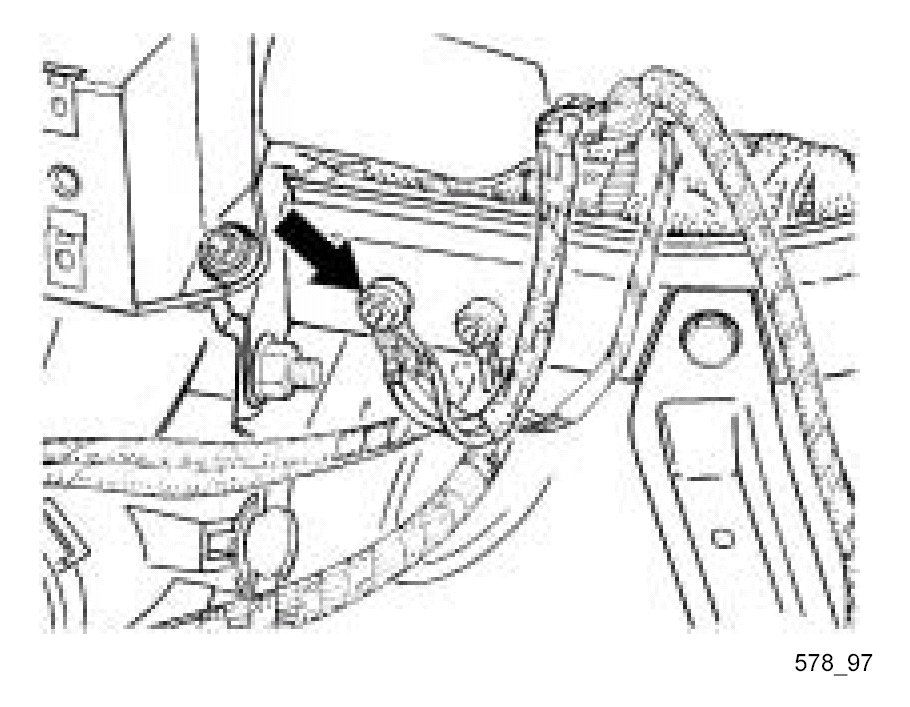

Ground point 4 is located in front of the instrument cluster on the dashboard support frame.







Ground point 9

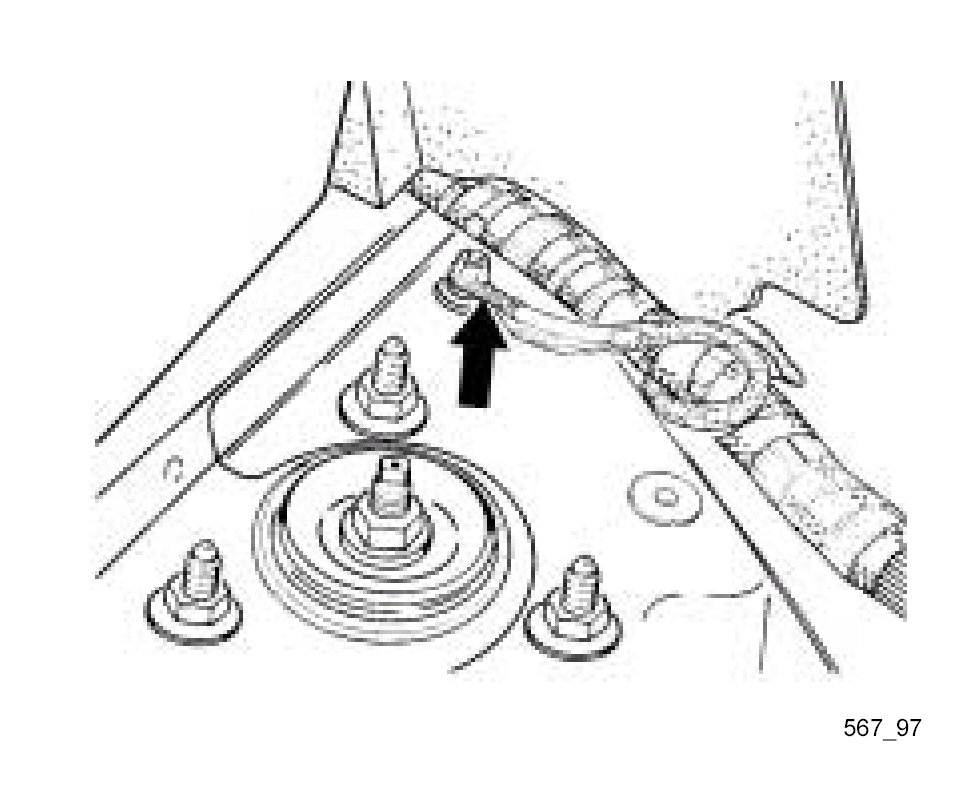

Ground point 9 (arrow) is located in the passenger compartment behind the right-hand spring strut attachment.
