Wiper and Washer Systems: Service and Repair



Removing and installing rear window wiper system

Removal
1. Remove cover over rear-window wiper arm. Undo the hexagon nut and pull off the rear window wiper arm. The rubber seal remains in the rear centre panel; do not remove.

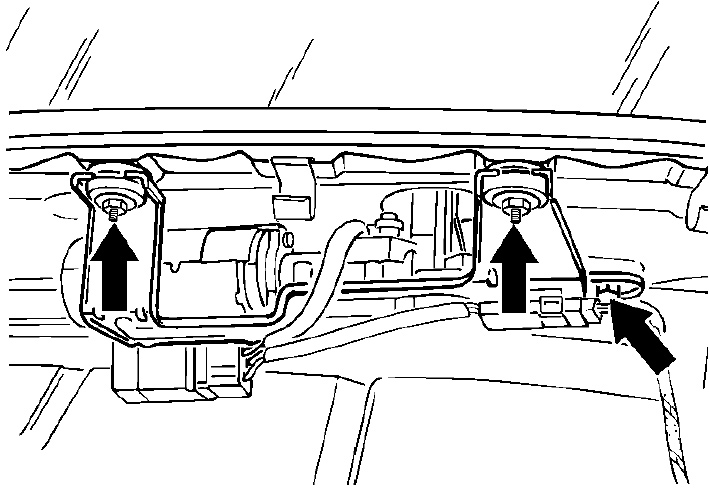

2. Remove the rear panel cover in front of the rear-window wiper motor. Undo the retaining frame with rear-window wiper motor at the rear centre panel (2 nuts, 1 screw) and pull out to the front. Disconnect the electrical plug connection.







NOTE: The relay can be unclipped and removed with the wiper motor installed.

Installation







NOTE: The spoiler edge on the rear-window wiper blade must face outwards.
