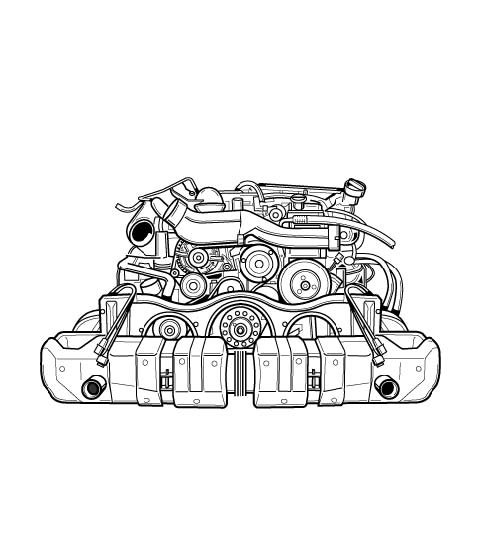

Engine

Engine

Engine
Engine type M96/70
Bore mm (inch) 100 (3.94)
Stroke mm (inch) 76.4 (3.01)
Cubic capacity cm� (cu. inch) 3600 (219.7)
Compression ratio 9.4:1
Max. engine power as per 80/1269/EEC kW 309
at engine speed rpm 6000
Max. torque Nm (ft. lbs.) 560 (57.08)
at engine speed rpm 2700-4600
Max. liter output kW/l 85.8
Engine speed limitation by fuel cutoff at rpm 6750
Idle speed rpm 740 ± 40
Engine weight as per DIN 70020 A kg
