Cellular Phone Transceiver: Service and Repair
919119 Removing And Installing Additional Receiver For Telephone
Removing additional telephone receiver

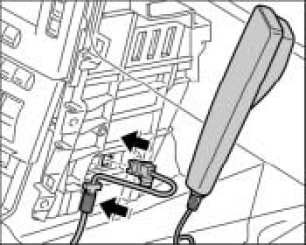

Installation Position:
Installation position
1. Remove ignition key and switch off audio system.

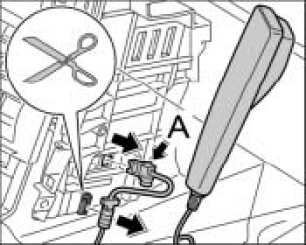

2. Cut through the tie-wrap for the electric wire and disengage the wire at the retaining bracket.
Disconnecting Plug Connection:
3. Release electric plug from additional receiver -A- and unplug it.
Installing additional telephone receiver
1. Insert electrical plug for additional receiver until it is felt to engage.
Connecting Plug Connection:
2. Engage electric wire at the retaining bracket and secure with a tie-wrap.
