Removing and Installing Front Member



633319 Removing And Installing Front Member

Preliminary work
Removing front apron.
Remove front bumper.

Removing front member

Removing front impact pipe

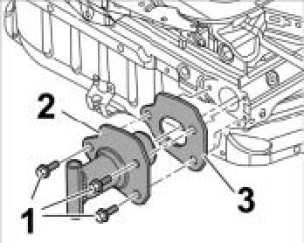

Installation Position Of Front Impact Pipe:






1. Undo fastening screws -1-.


Removing Front Impact Pipe:






2. Remove the impact pipe -2- and seal -3-.

Installing front member

Install front impact pipe


Installation Position Of Front Impact Pipe:






1. Position the seal impact pipe -3- and impact pipe -2-.


Install Front Impact Pipe:






2. Screw in fastening screws -1- and tighten to the required tightening torque. Final tightening 17 ftlb.

Subsequent work
Install front bumper.
Installing front apron.
