Removing and Installing Switch Console

Removing And Installing Switch Console

Preliminary work

Preliminary work for switch console
Remove air-conditioning control.

Removing switch console







1. Switch off ignition and pull gearshift lever back.

INFORMATION: The switch console is clipped into the centre console.

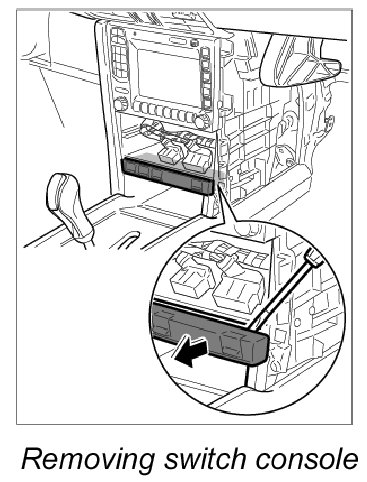

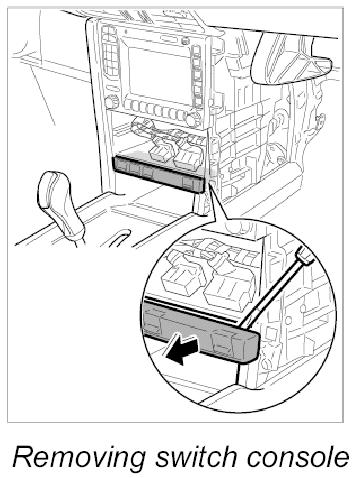

2. Lift the switch console out of the centre console mounting using a screwdriver and pull it out.
3. Release electric plugs and disconnect from the switch console.

Installing switch console
1. Insert electric plugs into the switch console until they click into place.

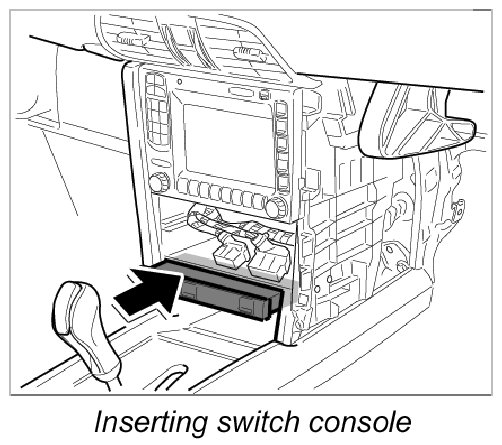

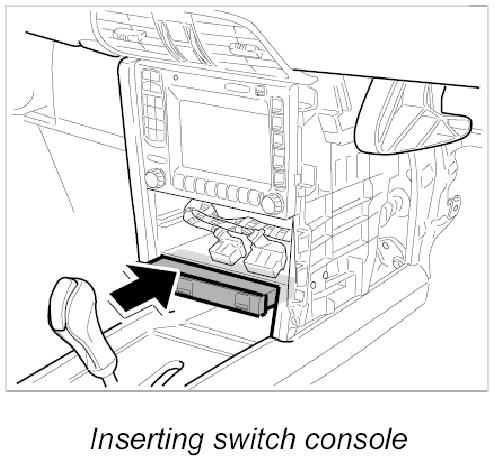

2. Slide switch console into the centre console and press until the switch console clips into place.

Subsequent work

Subsequent work for switch console
Install air-conditioning control.
