Removing and Installing Trim Panel For Mirror Triangle



707019 Removing And Installing Trim Panel For Mirror Triangle

Removing trim panel for mirror triangle

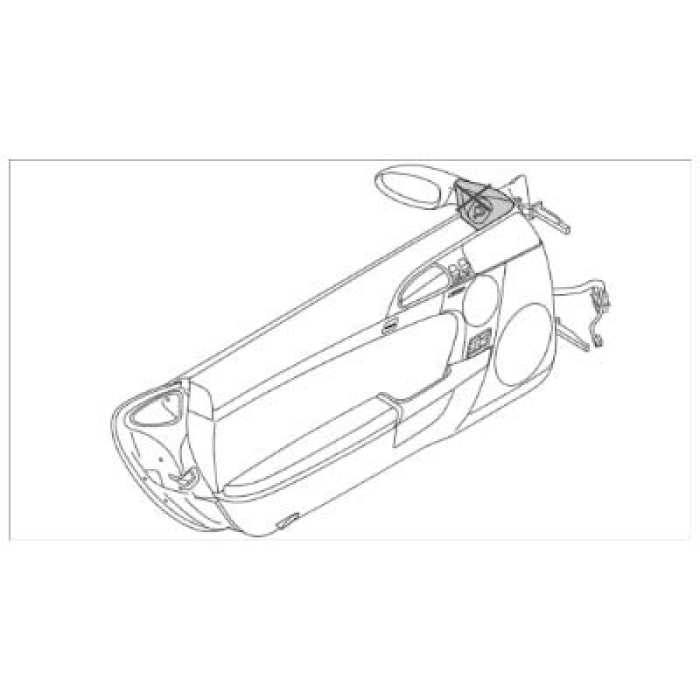

Installation Position For Mirror Triangle Trim Panel:

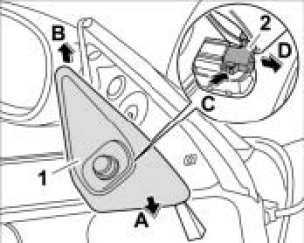

1. Carefully lever out trim panel for mirror triangle -1- using plastic wedge -Arrow A- and pull upwards -Arrow B-.


Removing Trim Panel For Mirror Triangle:






2. Press -2- electrical plug connection -Arrow C- and pull off -2- the plug -Arrow D-.
3. Remove trim panel for mirror triangle -1-.

Installing trim panel for mirror triangle

Installation position for mirror triangle trim panel


Installation Position For Mirror Triangle Trim Panel:






1. Lock electrical plug connection -2- until it audibly engages.


Installation Position For Mirror Triangle:






2. Hook cover -1- into the door triangle from above -Arrow E- and press into the fastening clips on the underside until it engages audibly -Arrow F-.
