Removal and Replacement



Removing And Installing Switch For Rearview Mirror

Removing switch for rearview mirror

1. Remove ignition key.

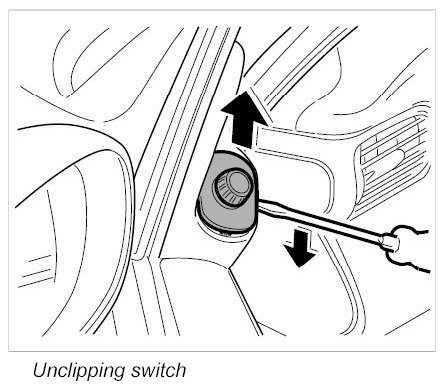

2. Use a plastic spatula to carefully lever the switch for the rear-view mirror out of the mount on the door panel.

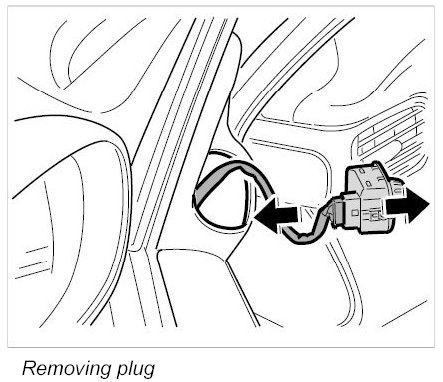

3. Pull off electrical plug on switch.







Installing switch for rearview mirror

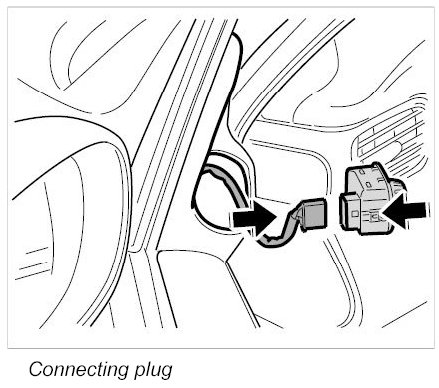

1. Push electric plug on to switch until it clicks into place.

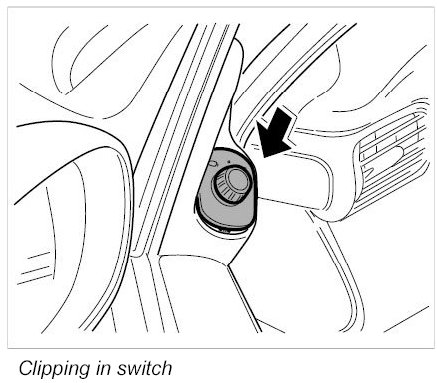

2. Push electric wire into the mount for the rear-view mirror switch and clip the switch into the mount.
