G4.3 - Overview Based on Repair Level/Materials

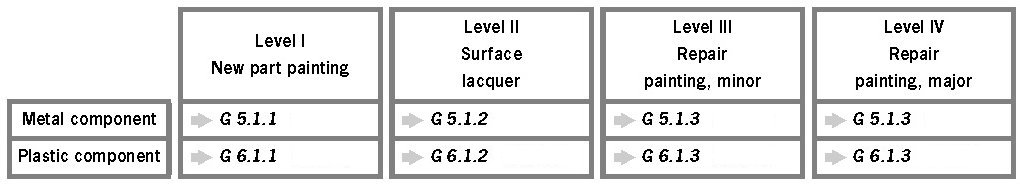

G 4.3 Overview Based On Repair Level/Materials

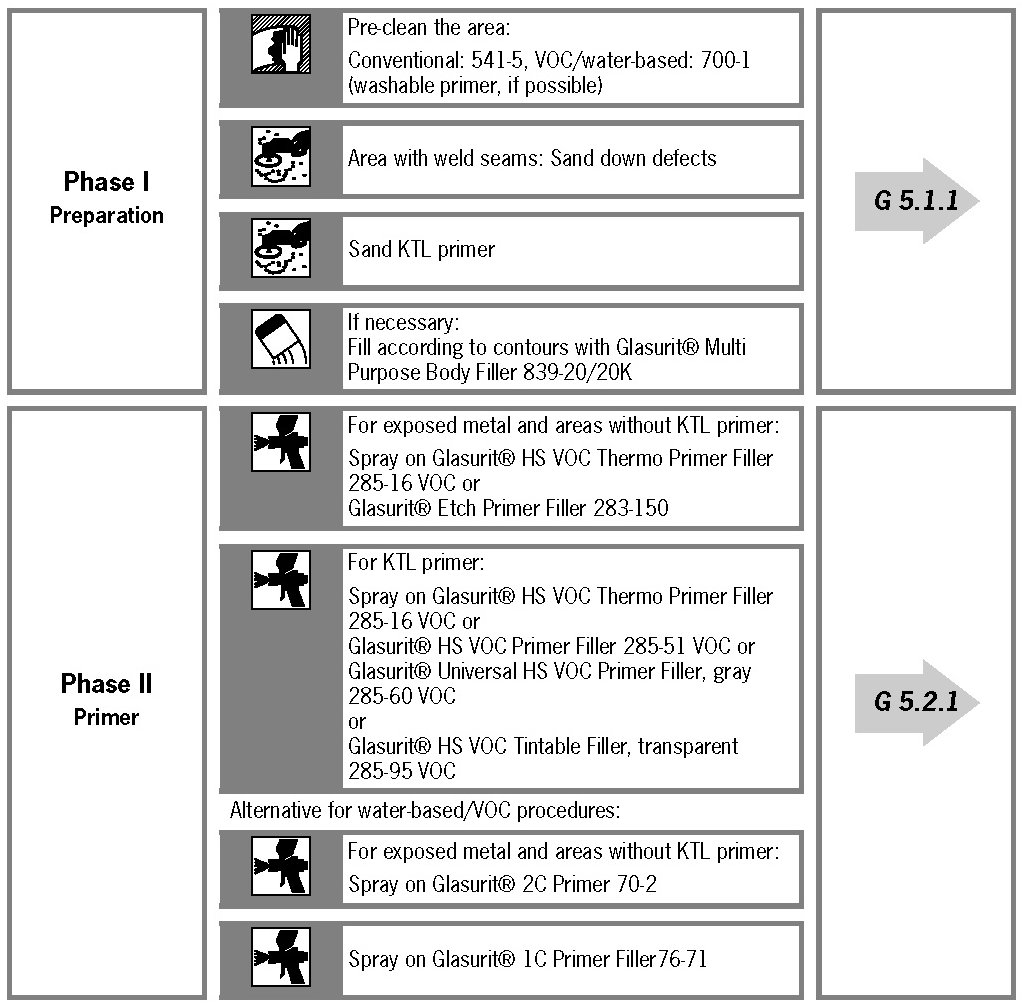

G 4.3.1 Level I - New part painting metal components

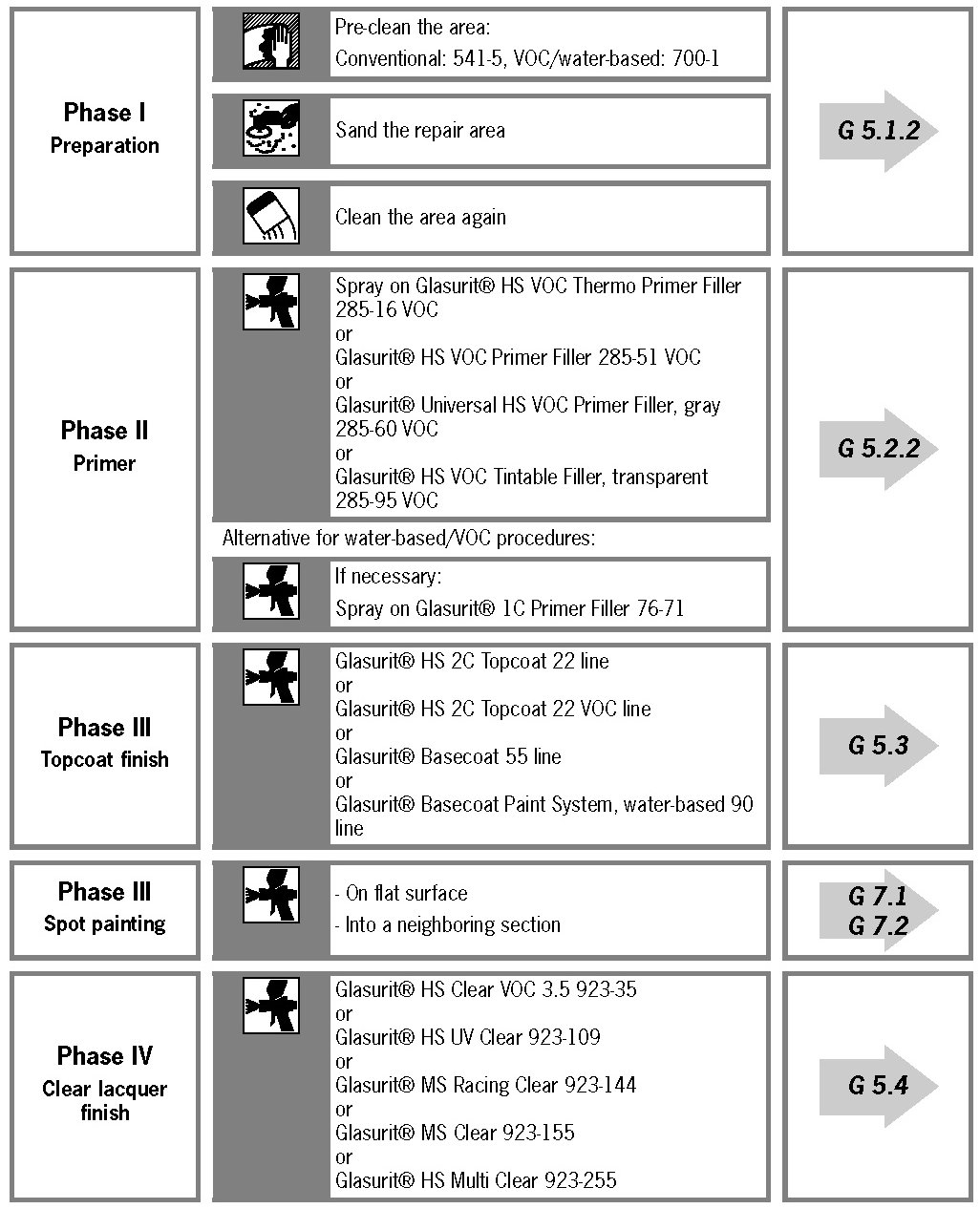

G 4.3.2 Level II - Surface painting metal components

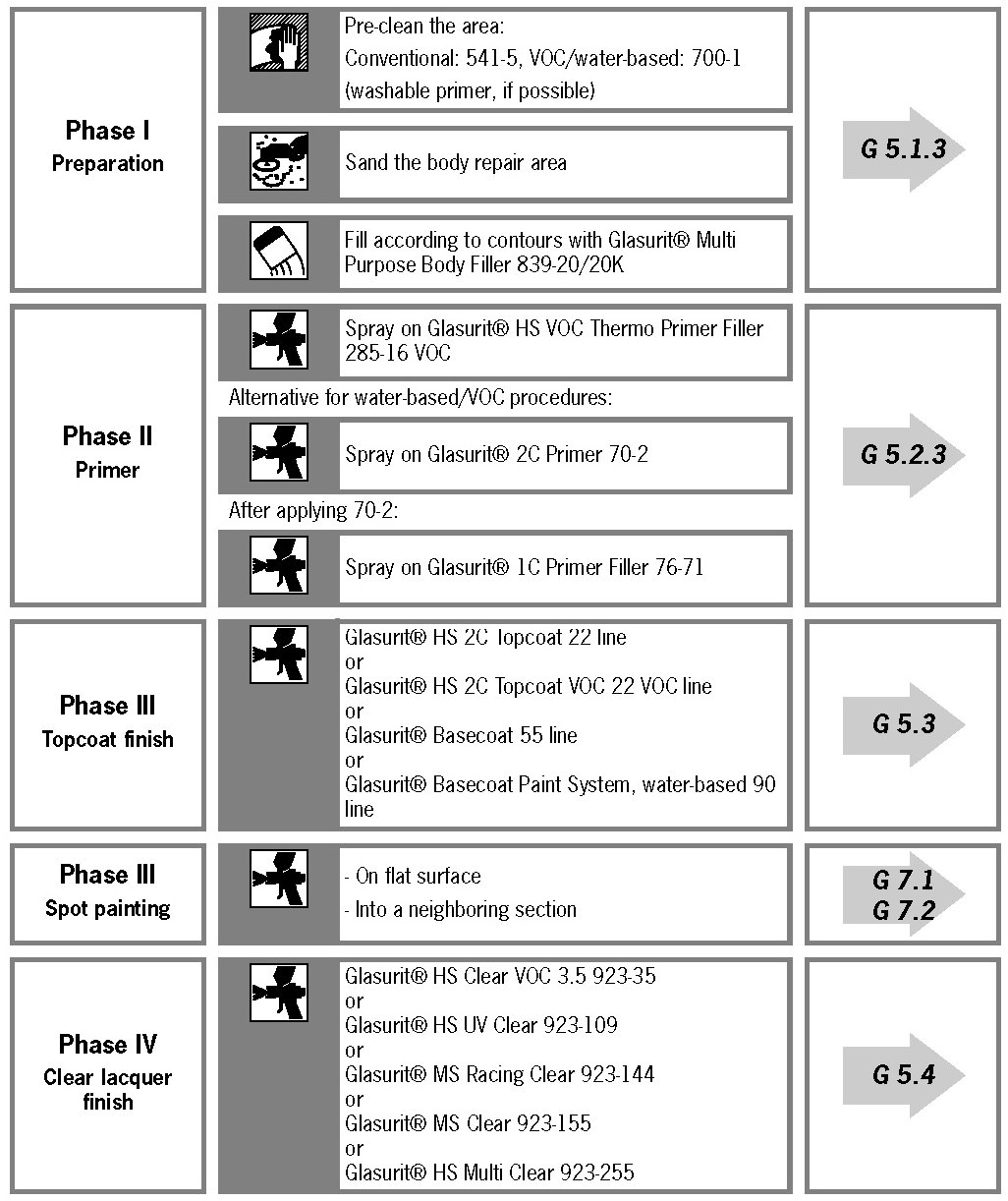

G 4.3.3 Level III/IV - Repair painting metal components

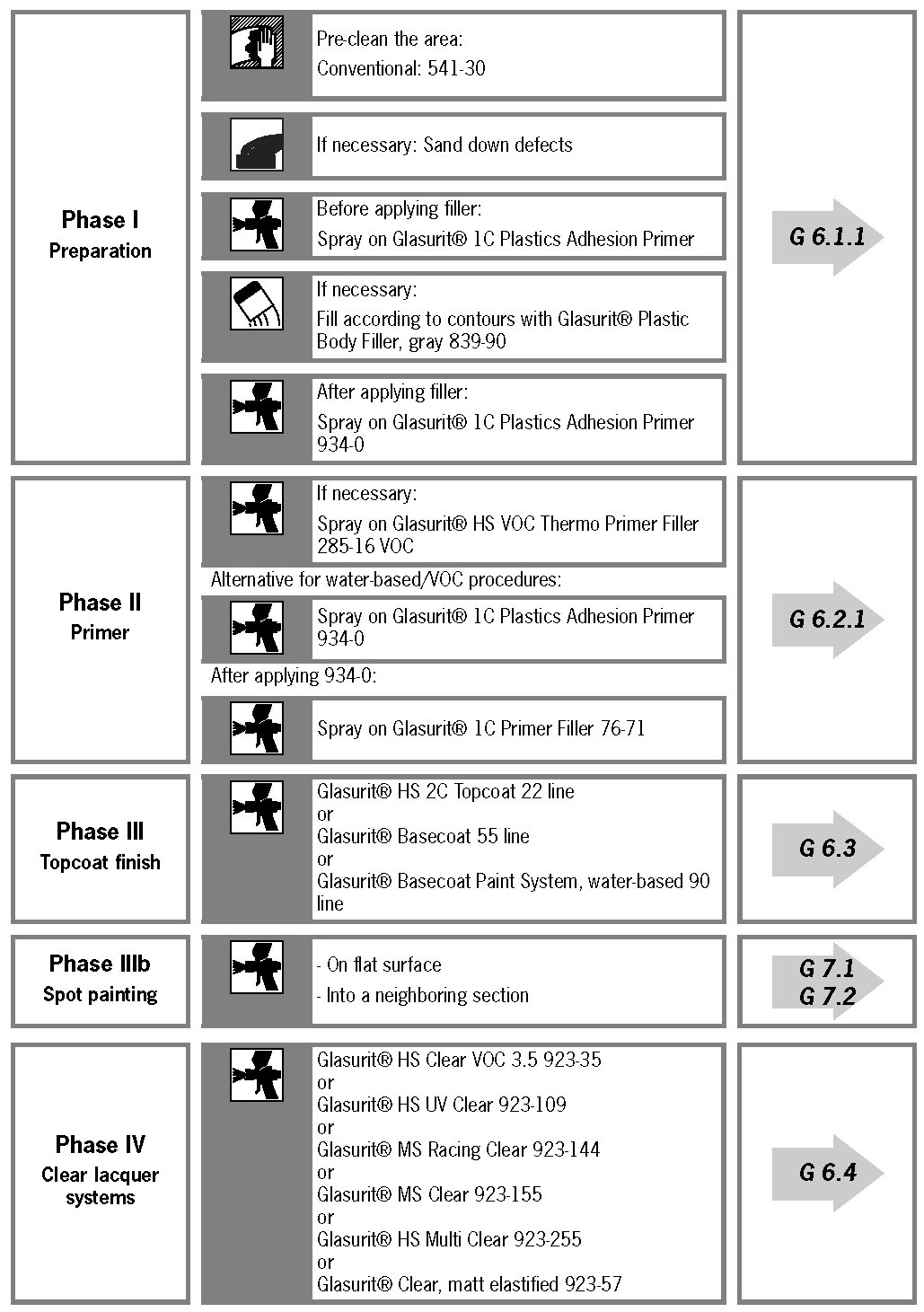

G 4.3.4 Level I - New part painting plastic components

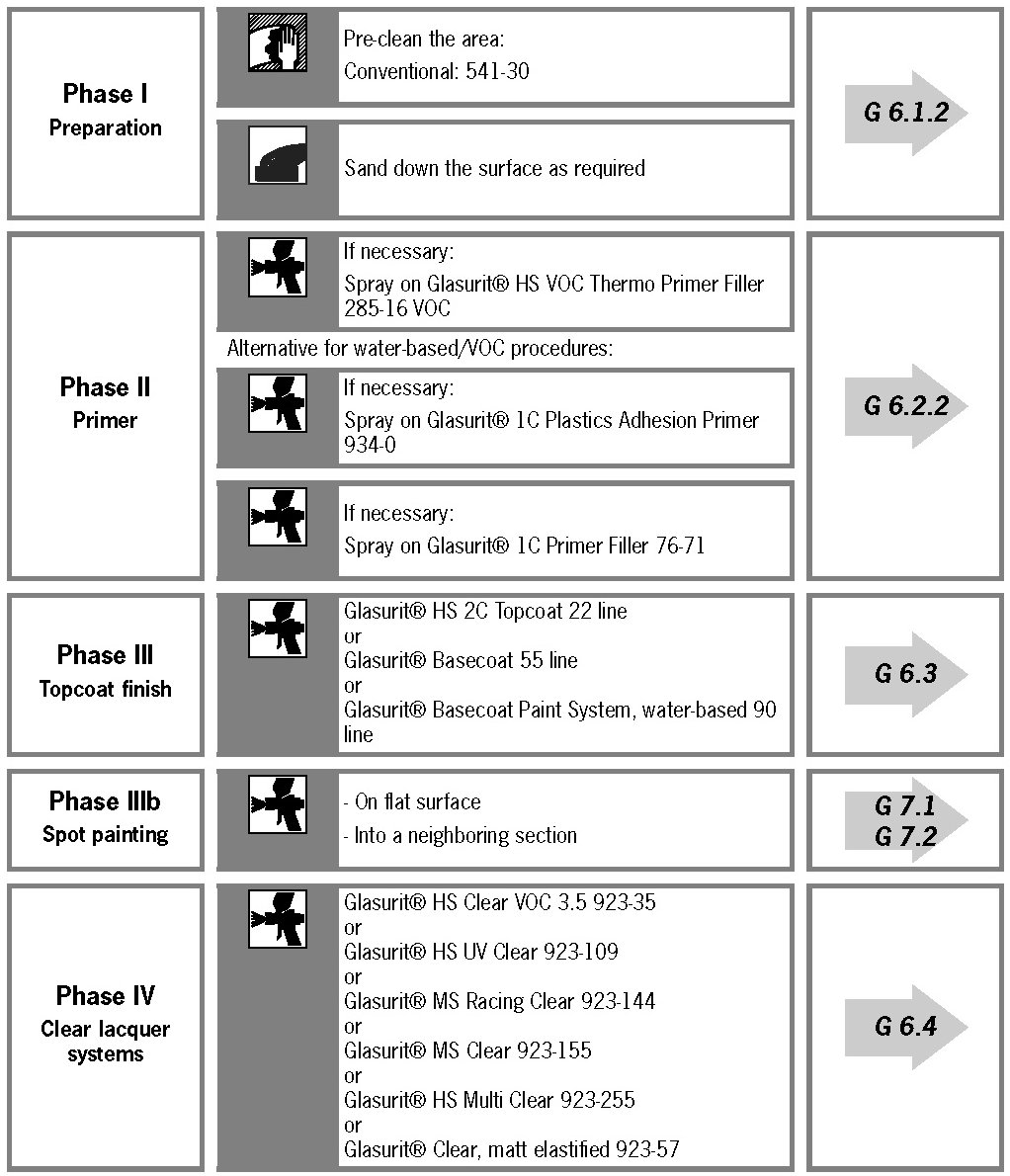

G 4.3.5 Level II - Surface painting plastic components

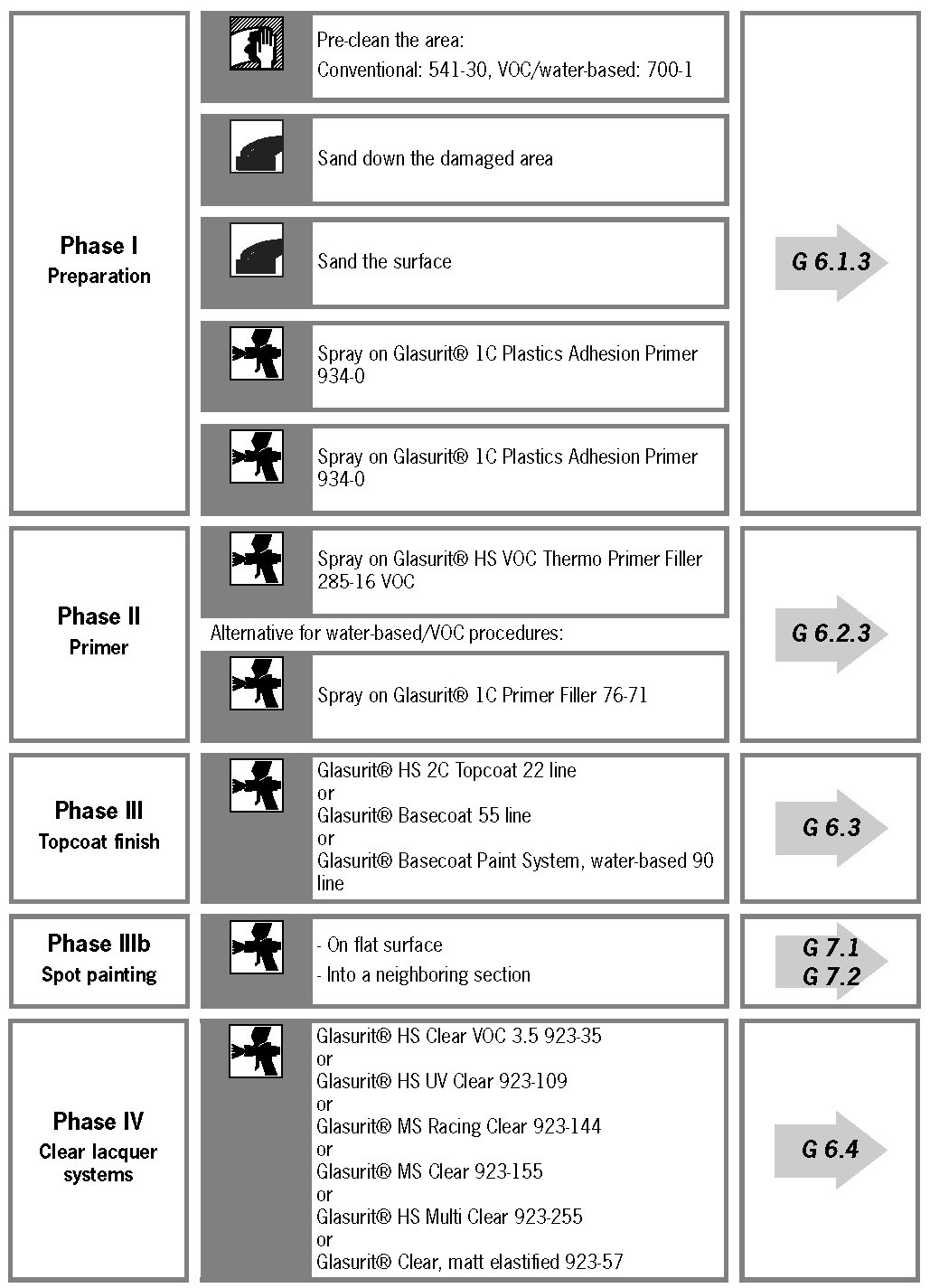

G 4.3.6 Level III/IV - Repair painting plastic components








G5.1 - Phase I - Preparation
