Removing and Installing Cover For Front Middle Backrest



Removing And Installing Cover For Front Middle Backrest

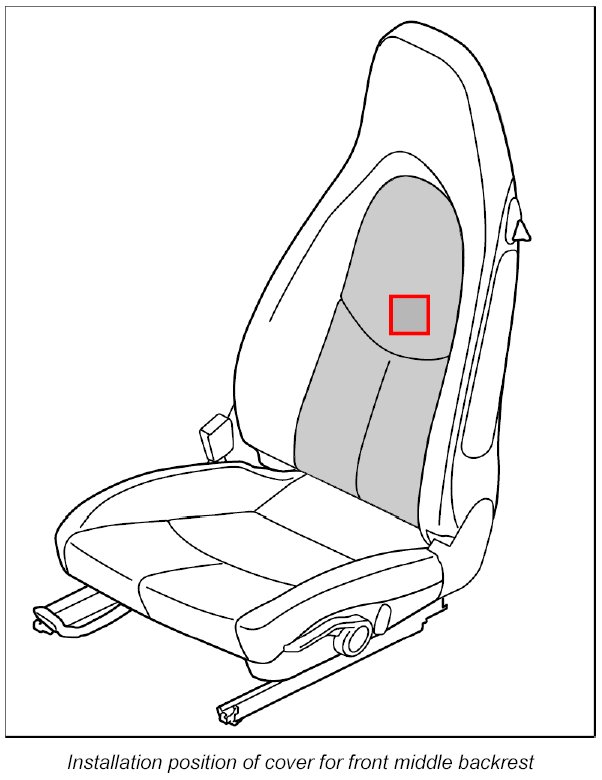

Removing cover for front middle backrest

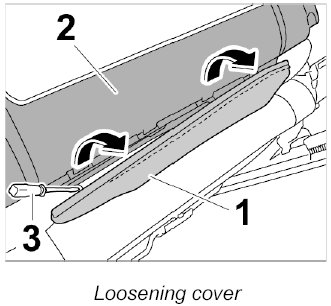

1. Press cover for backrest -1- carefully out of the backrest shell -2- using a screwdriver -3-.

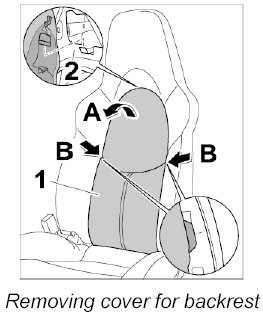

2. Insert your hand into the top of the backrest cover -1- and disengage it by pulling it up out of the backrest frame -2- ( -arrow A- ). Then press cover for backrest together slightly in the middle -arrows B- and pull forwards and out.







INFORMATION: Only for vehicles with heated seats.

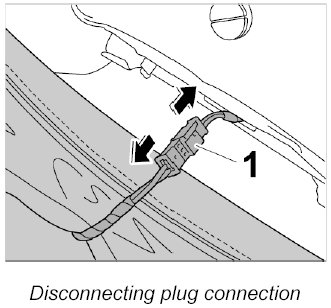

3. Disconnect electric plug connection for backrest seat heating -1-.

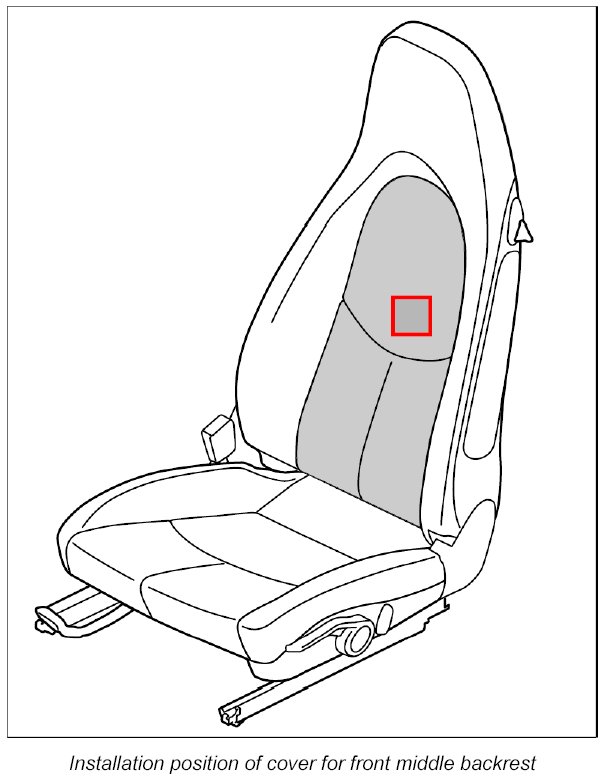

Installing cover for front middle backrest







INFORMATION: Only for vehicles with heated seats.

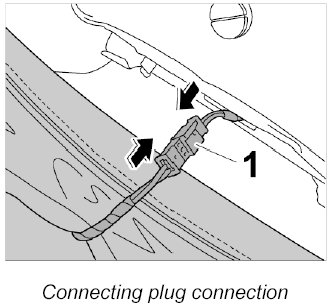

1. Connect electric plug connection for backrest seat heating -1-.

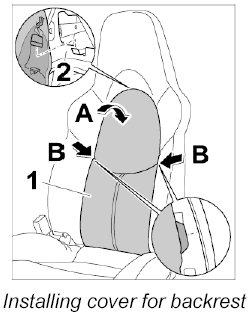

2. Engage cover for backrest -1- in the backrest frame -2- at the top -arrow A-.







3. Press in cover for backrest -1- in the middle -arrows B- until the locking tabs engage -inset-.

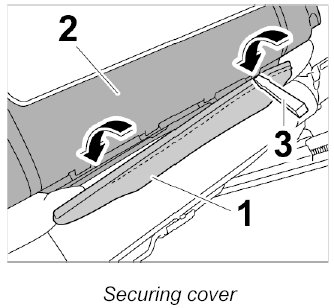

4. Press cover for backrest -1- into the backrest shell -2- at the bottom using a plastic wedge -3-.
