Removing and Installing Padding For Front Middle Backrest



Removing And Installing Padding For Front Middle Backrest

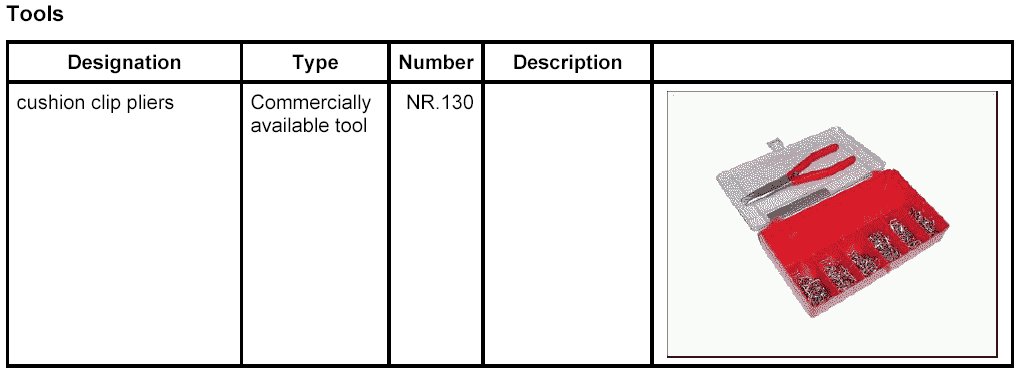

Tools







Preliminary work

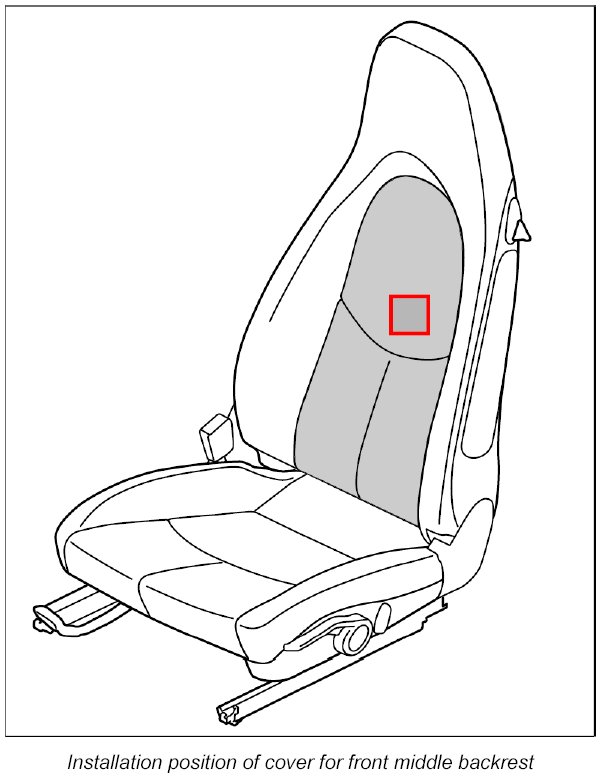

Remove cover for front middle backrest. Refer to Removing and installing cover for front middle backrest

Removing padding for front middle backrest

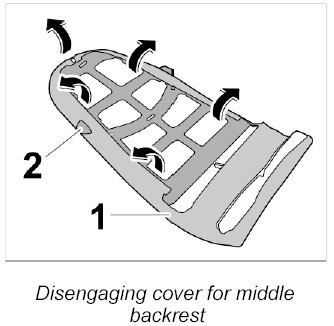

1. Disengage cover for middle backrest -1- out of the plastic frame -2- all the way round.

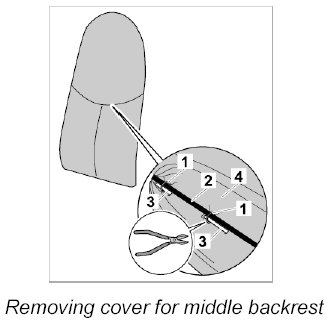

2. Cut through cushion clips -1- using side cutters. Detach piping -2- for cover for middle backrest and remove plastic frame -3- from the padding -4-.







Installing padding for front middle backrest

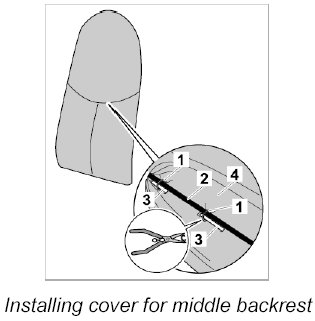

1. Position piping -2- for cover for middle backrest and padding -4- on the plastic frame -3-. Use the cushion clip pliers NR.130 and the cushion clips -1- to connect the cover strips and the plastic frame -3-.

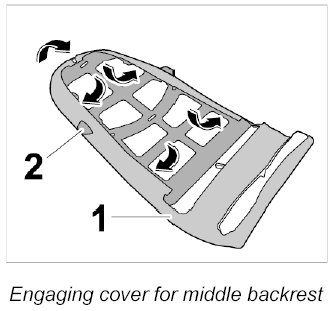

2. Engage cover for middle backrest -1- in the plastic frame -2- all the way round.







Subsequent work

Install cover for front middle backrest. Refer to Removing and installing cover for front middle backrest
