Removing and Installing Cover For Backrest



Removing And Installing Cover For Backrest

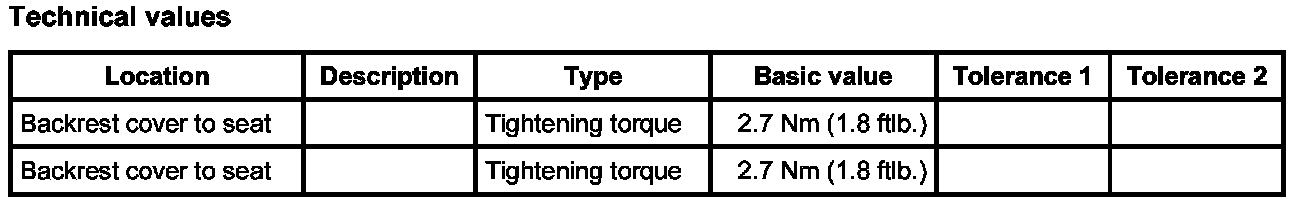

Technical values







Removing cover for backrest

Preliminary work

1. Remove front seat. Refer to Removing and installing front seat
2. Remove control module trim panel. Refer to Removing and installing control module trim panel

Removing cover for outer backrest

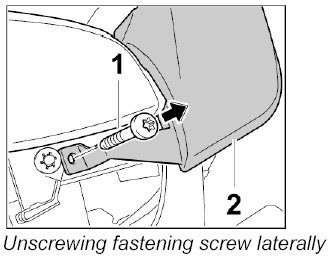

1. Unscrew fastening screw -1- laterally out of the cover -2-.

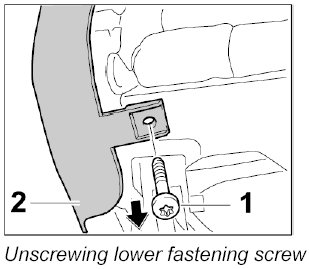

2. Unscrew lower fastening screw -1- out of the cover -2-.

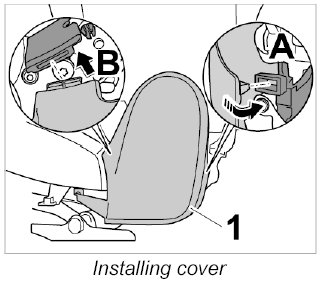

3. Unclip cover -1- at the front -inset A- and remove by pulling backwards in direction of arrow -inset B-.







Installing cover for outer backrest

1. Insert cover -1- at the back in direction of arrow -inset A- and press into position at the front -inset B-.







2. Screw down the cover -2- from below with the fastening screw -1-. Tightening torque: 2.7 Nm (1.8 ftlb.)







3. Screw down the cover -2- laterally with the fastening screw -1-. Tightening torque: 2.7 Nm (1.8 ftlb.)







Subsequent work

1. Install control module trim panel. Refer to Removing and installing control module trim panel
2. Install front seat. Refer to Removing and installing front seat
