Removing and Installing Switch For Memory Seat Adjustment

Removing And Installing Switch For Memory Seat Adjustment

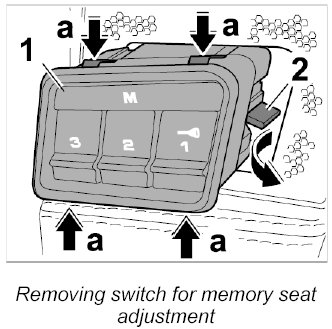

Removing switch for memory seat adjustment







1. Release switch for memory seat adjustment -1- at the four locking tabs -arrows a-. Swivel switch for memory seat adjustment -1- out of the door trim panel at the clip -2- in -direction of arrow-.

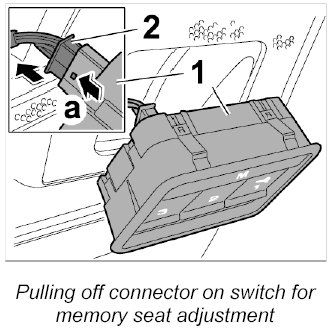

2. Release connector -2- and remove it -arrow a-. Remove switch for memory seat adjustment -1-.

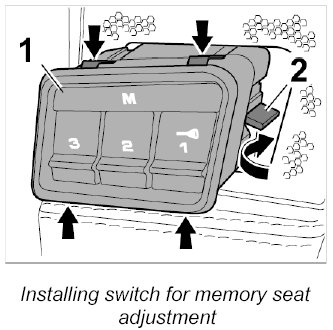

Installing switch for memory seat adjustment

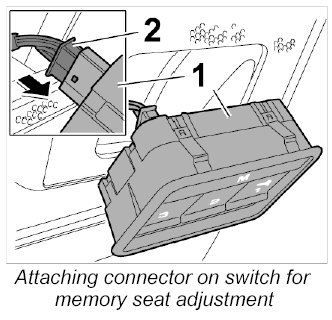

1. Place switch for memory seat adjustment -1- into position and attach connector -2- until it engages correctly.







2. Guide switch for memory seat adjustment -1- with the clip -2- into position behind the door trim panel and press down until the locking tabs -arrows- engage correctly.
