Blower Motor: Service and Repair



Removing And Installing Fan

Removing heater/fresh-air blower motor
Set blower to position 0 on climate control and remove ignition key.

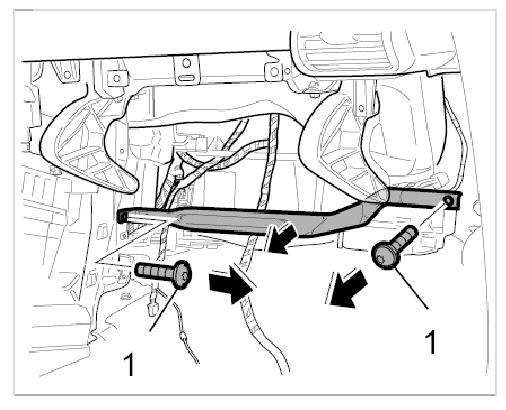

1. Unscrew the two fastening screws -1- of support strut and remove support strut.

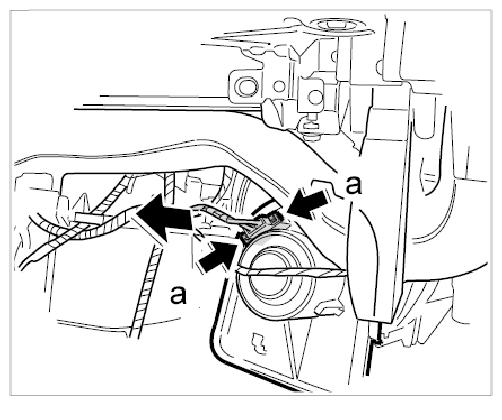

2. Squeeze the plug -a- on the blower motor and pull off.

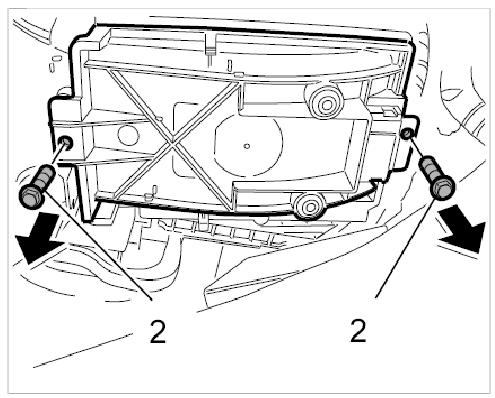

3. Unscrew the two fastening screws -2- holding the blower motor cover.

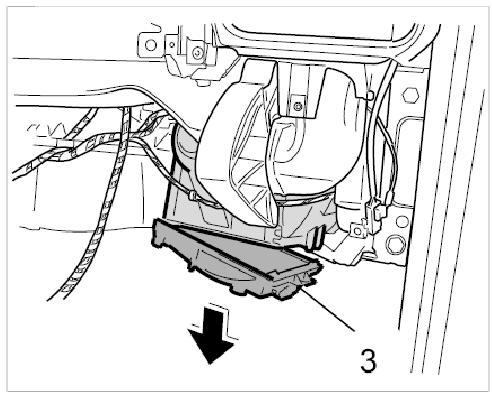

4. Remove the cover -3- for the blower motor and pull out the blower motor downwards.

Installing heater/fresh-air blower motor







1. Insert the heater/fresh-air blower motor from below into the heater/ A/C unit and position the cover -3-.

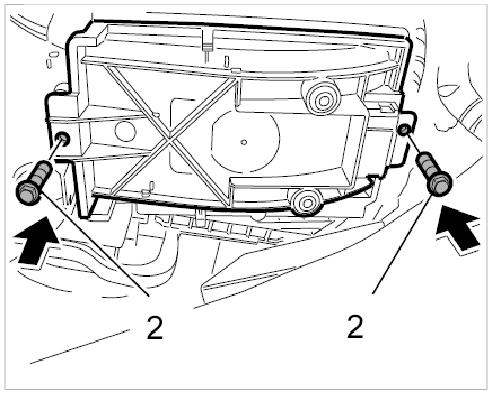

2. Secure cover -3- with the two fastening screws.

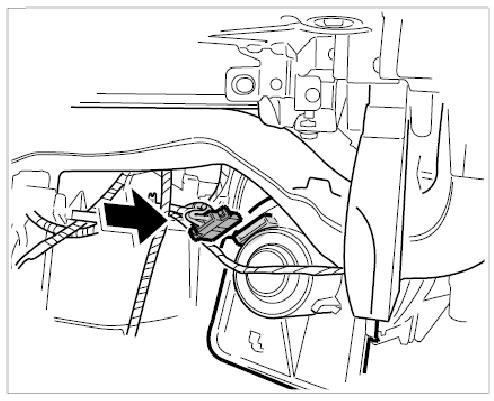

3. Insert the electrical plug connection until the plug can be felt to engage.

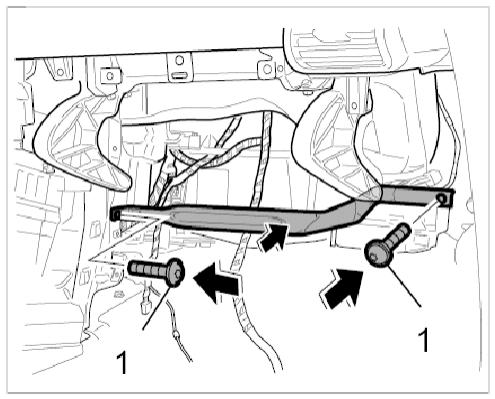

4. Install support strut and tighten with the two fastening screws -1-.
5. Switch on ignition and the blower in stages on the heating and fresh-air control. Check the function of the blower.
