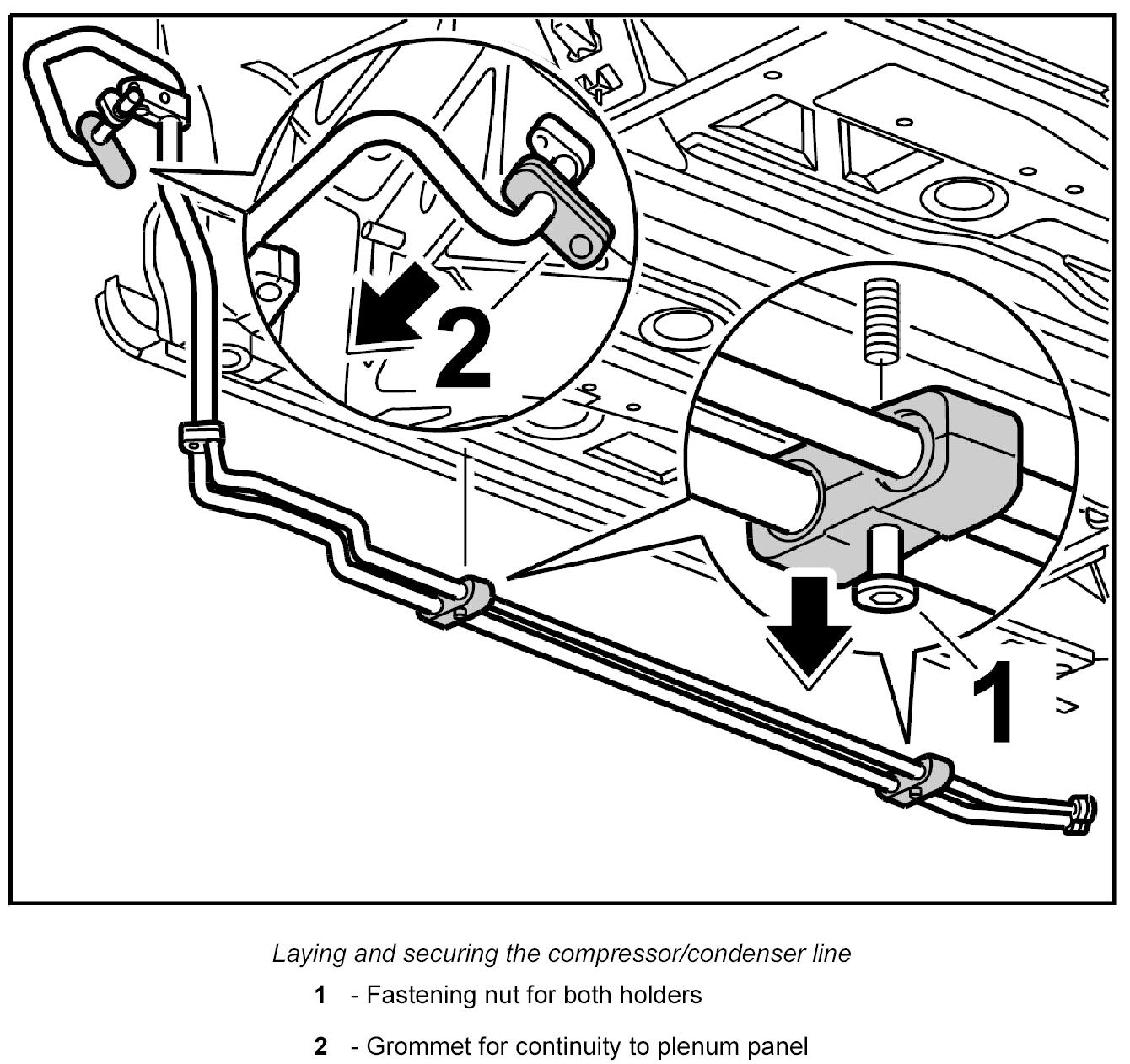

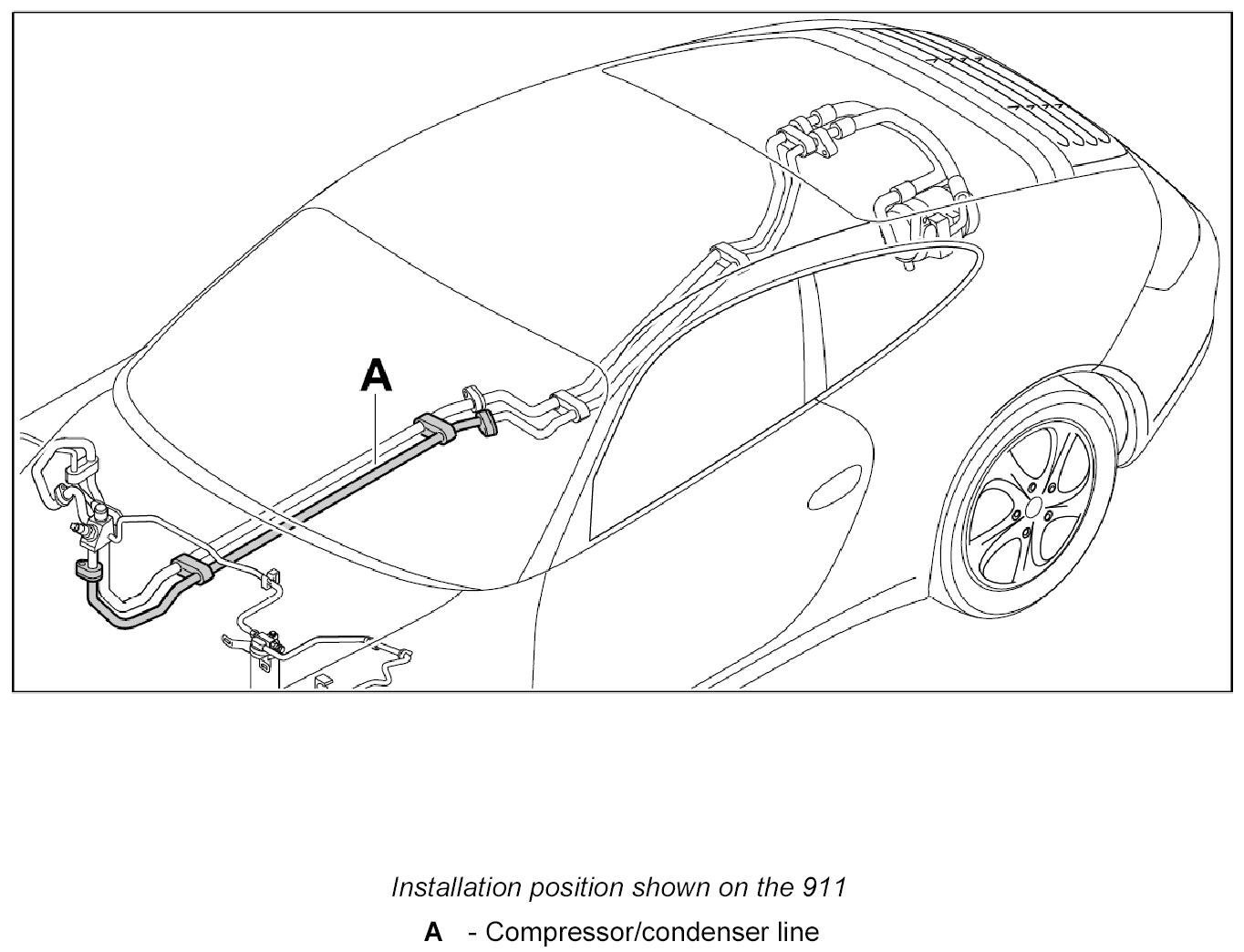

Laying Compressor/Condenser Line
Laying Compressor/condenser Line INFORMATION: -
Close off all lines and connections using suitable plugs during removal.
-
Before re-installing the component, check the O-rings of the refrigerant lines for damage and replaced them if necessary.
Remove the compressor/condenser line and the compressor/evaporator line together.
