Receiver Drier

Receiver Drier

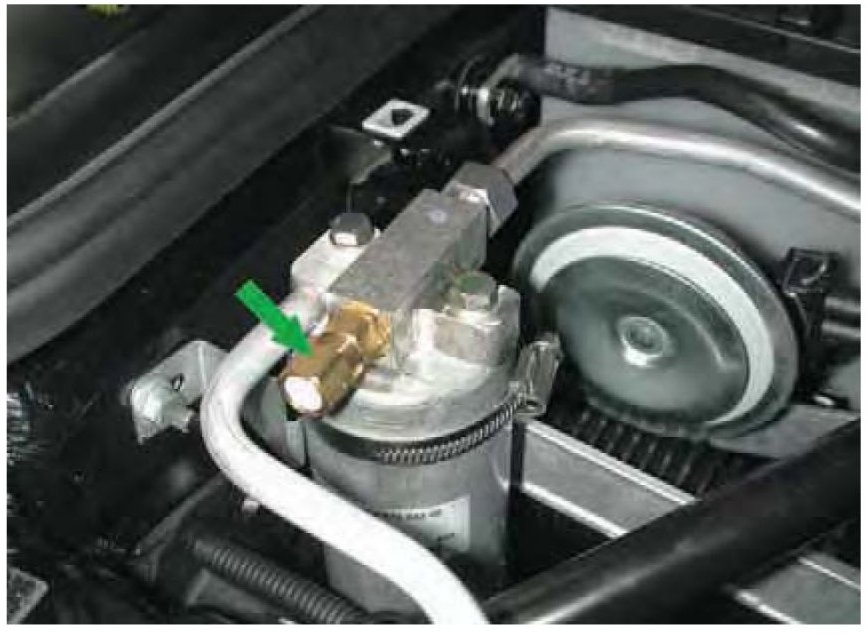

The refrigerant tank is installed in the fresh air chamber at front left, next to the battery. The pressure relief valve (see arrow) for the refrigerant system is also located here.
