Procedures

961519 Removing And Installing Footwell Light

Removing footwell light

ATTENTION:
Danger of damage to property if bulbs are used or handled incorrectly.
- Risk of damage to bulbs and bulb housing.
- Switch off ignition and remove ignition key.
- To prevent short circuits, the load in question must be switched off while changing bulbs.
- Only bulbs specified in the bulb table may be used.
- Bulbs with a higher wattage may damage the bulb housing.
- New bulbs must be clean and free of grease. Therefore, never touch the bulbs with your bare hands. Use a cloth or soft paper when changing bulbs.
- In certain states, it is compulsory to carry spare light bulbs.

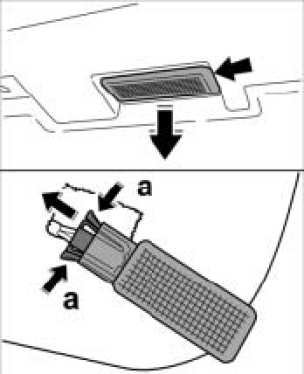

Footwell Light Overview:

1. Press footwell light carefully out of the trim panel at the cutout -arrow- using a screwdriver.

Removing Footwell Light:

2. Release plug on footwell light -arrows a- and pull it off.
3. Remove footwell light.

Installing footwell light

NOTE: Only use the relevant bulb specified in the bulb table.

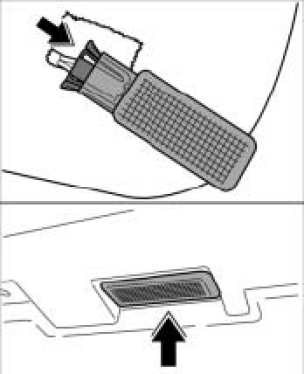

Overview Of Floor Light, Shown On The 911:

1. Push plug on to footwell light until the plug is felt to engage.

Installing Footwell Light:

2. Press footwell light into trim panel.
