Fog/Driving Lamp Bulb: Service and Repair



Removing And Installing Bulb For Fog Light

Preliminary work
Remove auxiliary headlight.

Removing bulb for fog light

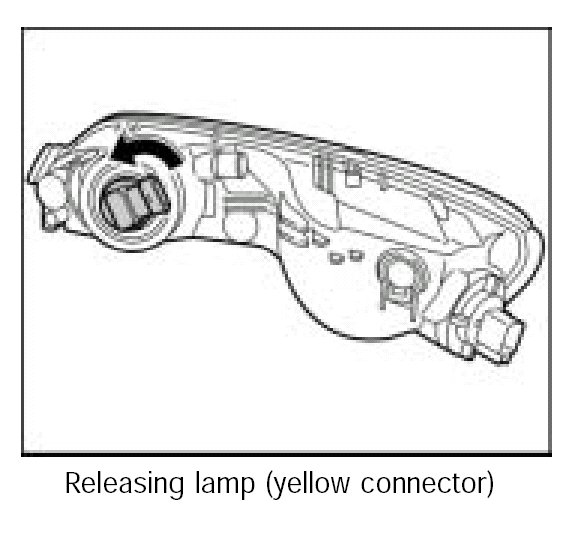

1. Turn faulty lamp in left fog light to the left or turn lamp in right fog light to the right (bayonet lock) and replace.

Installing bulb for fog light

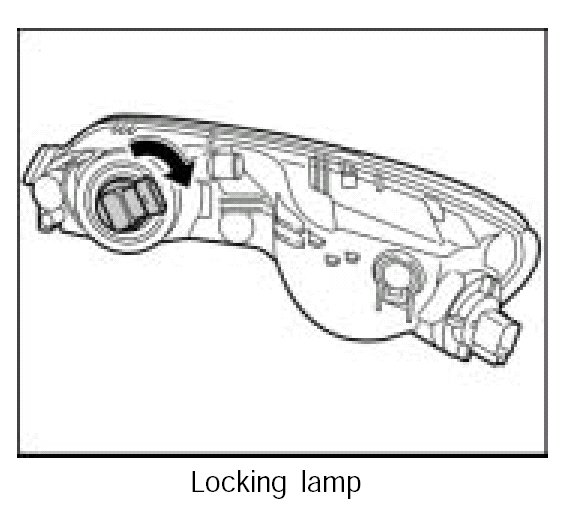

1. Insert new lamp in headlight and turn lamp in left fog light to the right or turn lamp in right fog light to the left (bayonet lock).

Subsequent work
Install auxiliary headlight.
