Procedures

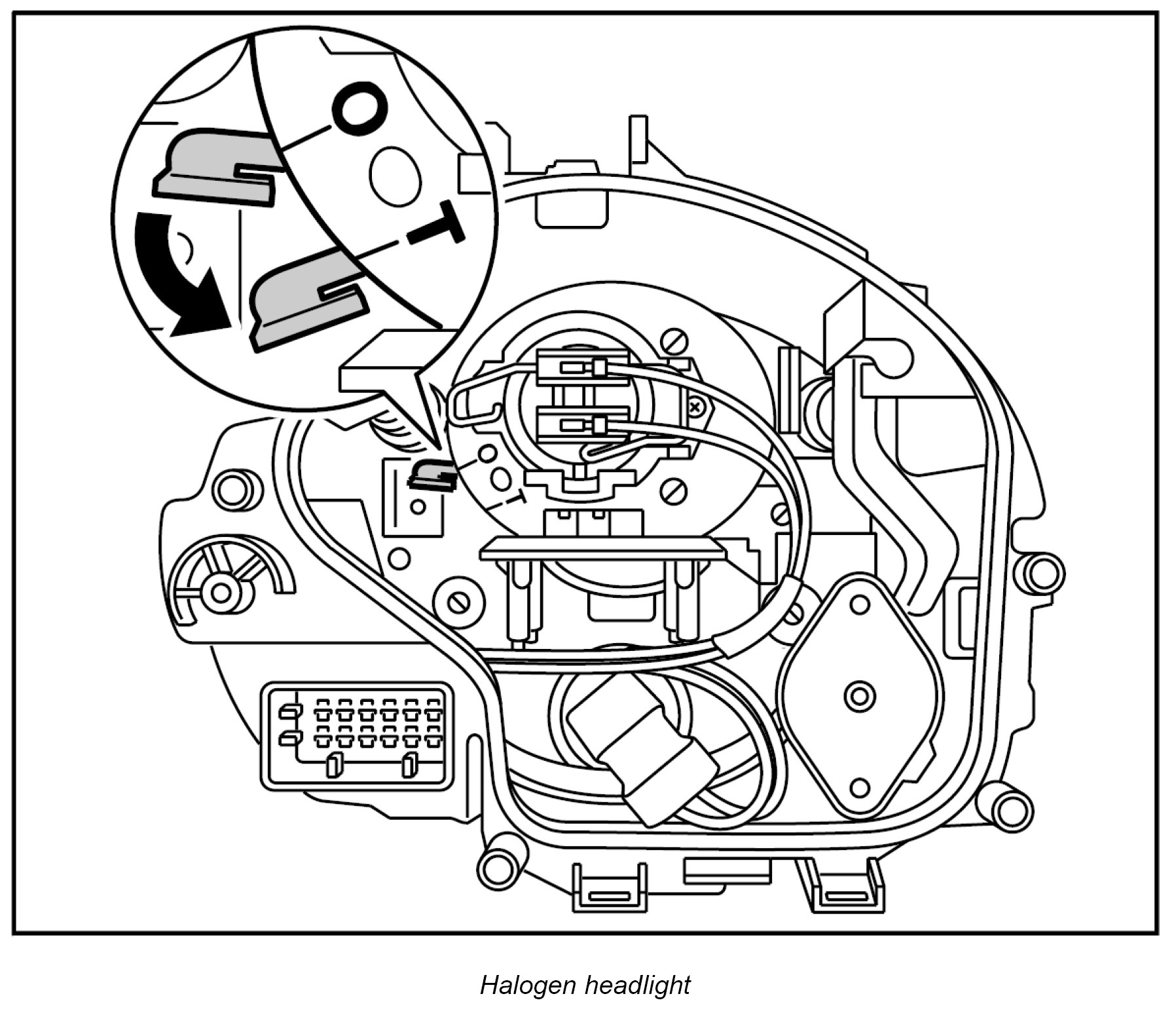

Converting Headlights For Left/Right-Hand Driving

INFORMATION:
- For driving in countries in which vehicles drive on the other side of the road, it is important to convert the headlights as soon as you cross the border.
- The dipped beam headlight then lights symmetrically so that oncoming traffic is not dazzled.
- When you return to your own country, reset the headlights to 0.







1. Remove the headlight.
2. Open the housing cover.
3. Set lever to position -T-.
4. Close headlight housing cover and install headlight.
5. Repeat conversion for other headlight.

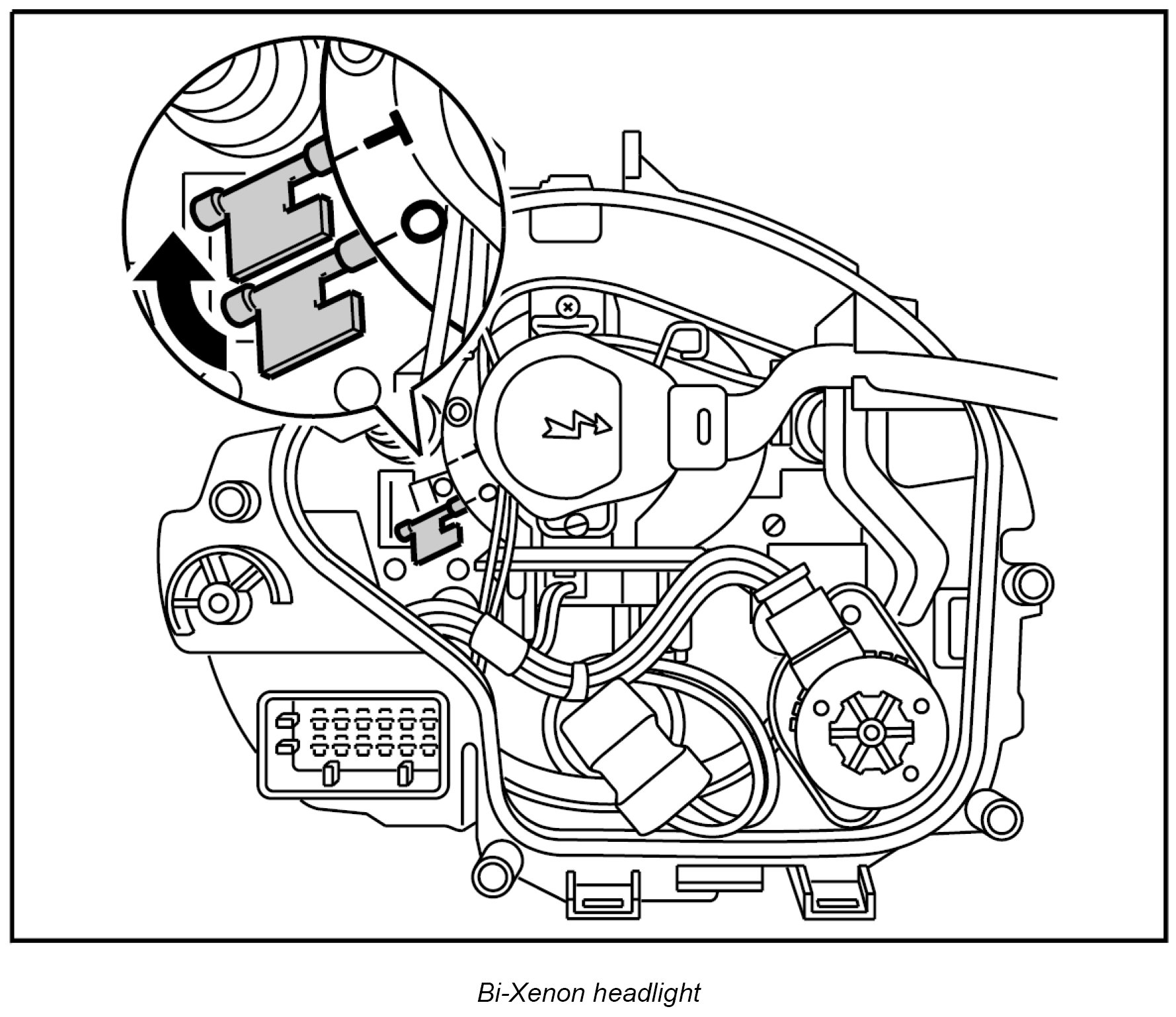

Converting Bi-Xenon headlights for left/right-hand driving

INFORMATION:
- For driving in countries in which vehicles drive on the other side of the road, it is important to convert the headlights as soon as you cross the border.
- The dipped beam headlight then lights symmetrically so that oncoming traffic is not dazzled.
- When you return to your own country, reset the headlights to 0.







1. Remove the headlight.
2. Open the housing cover.
3. Set lever to position -T-.
4. Close headlight housing cover and install headlight.
5. Repeat conversion for other headlight.
