Turn Signal Lamp: Service and Repair



Removing And Installing Bulb For Front Direction Indicator

Removing bulb for front direction indicator

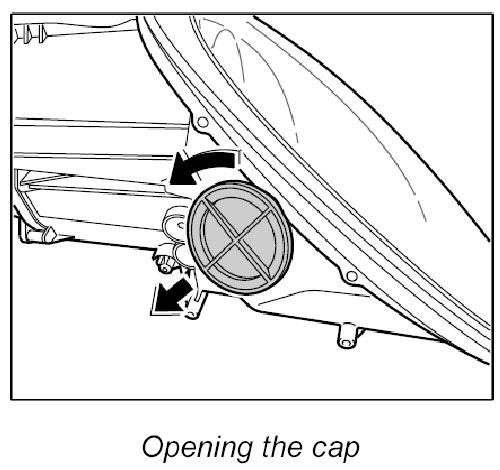

1. Open cap on headlight.

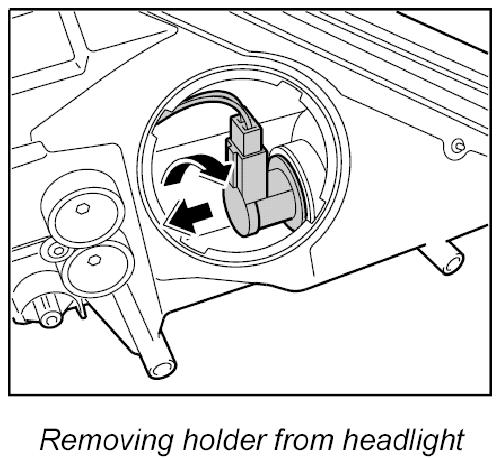

2. Turn bulb holder to the right (bayonet lock) and pull it out of the headlight mounting point.

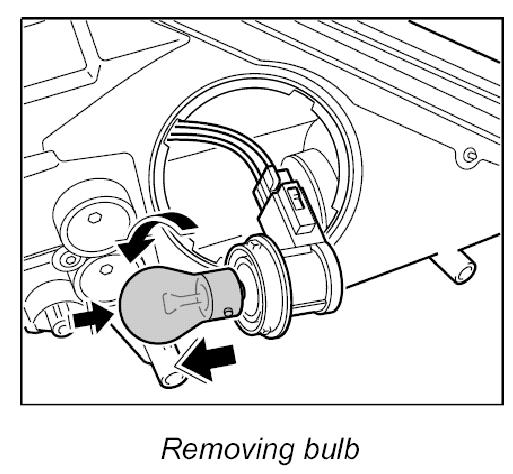

3. Slide in, turn and pull out bulb.

Installing bulb for front direction indicator

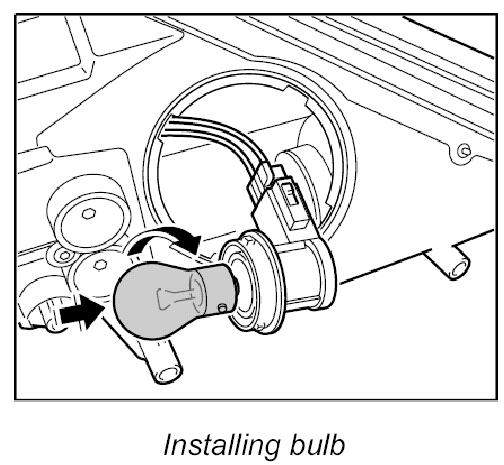

1. Slide bulb into holder and turn (bayonet lock).

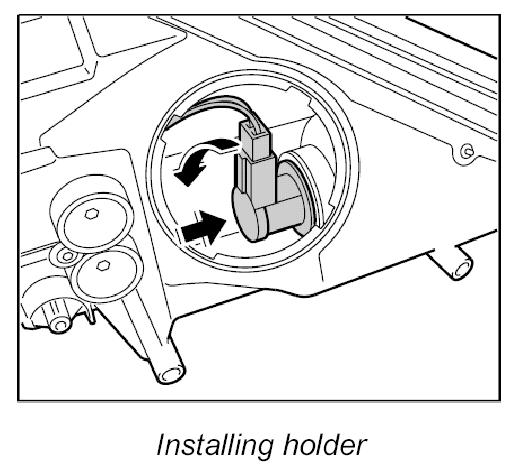

2. Screw in holder and bulb into headlight (bayonet lock).

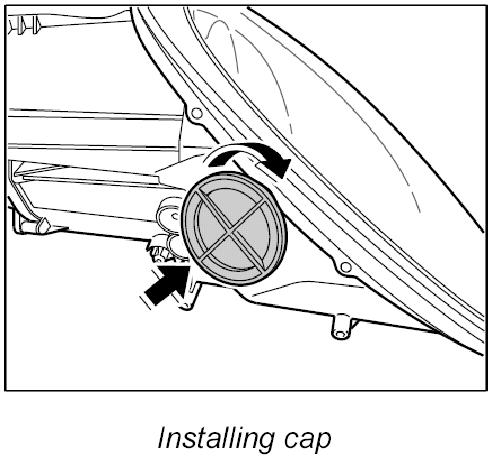

3. Position and close cap.
