Installing

Installing drive belt

Note: After installing the drive belt you should check again that the individual belt pulleys and rollers are positioned correctly.

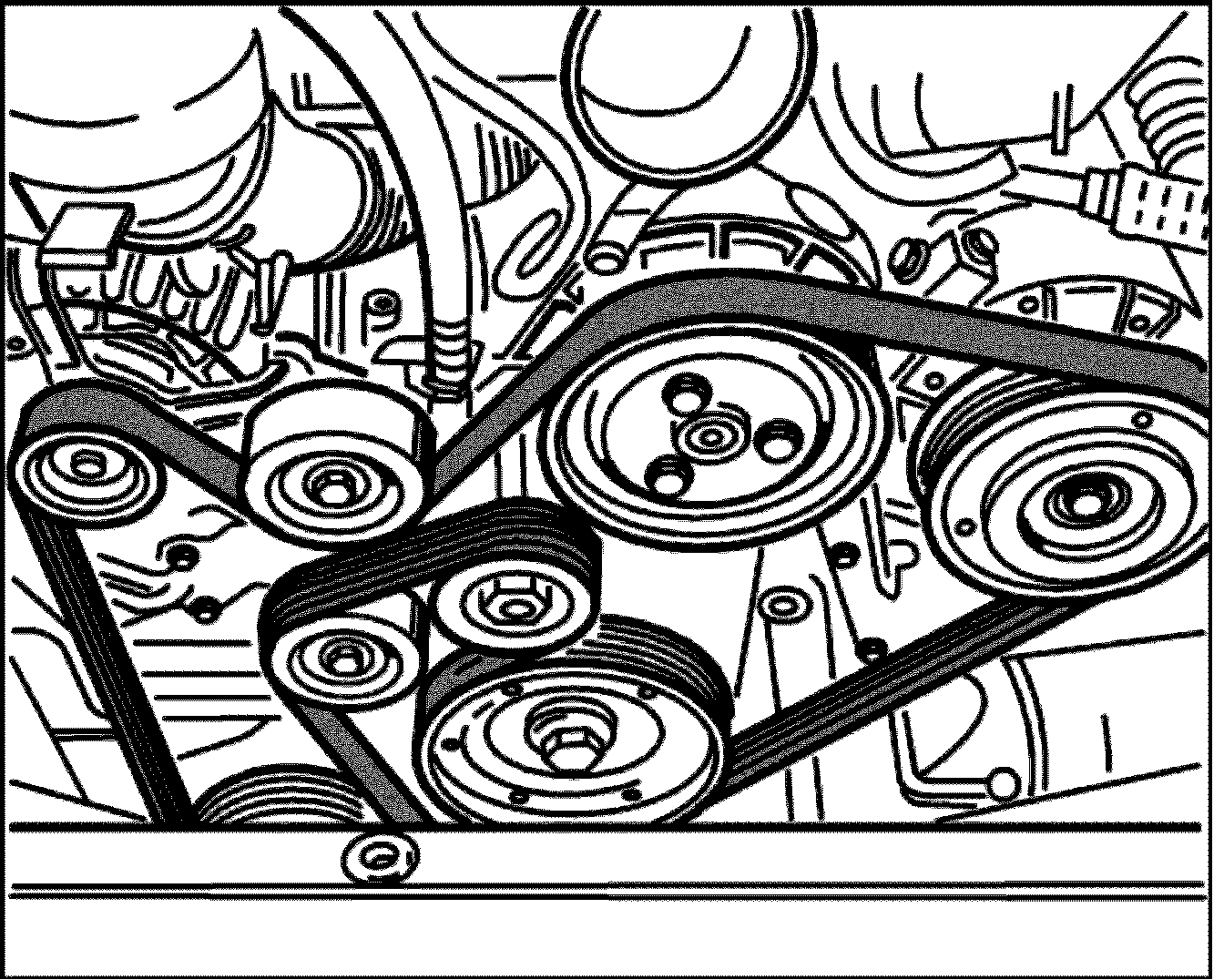

1. Install the drive belt as shown in the illustration. If you are reinstalling the old drive belt, it is absolutely necessary to observe the previously marked rolling direction. Position the drive belt by taking the tension off the tensioning roller in a clockwise direction, then allow the tensioning roller to slide back to its normal position.

Subsequent work for installing drive belt
1. Install rear wall cover.
