M/T - Short Shift Kit Retrofitting

Boxster (987)

1/04 ENU 3408

Date: Nov 4, 2005

Short Shift Kit Installation Instructions (I No. XCZ)

Note
This Technical Information replaces the TI Group 3, # 1/04, dated January 14, 2005. Changes/additions compared to the previous Technical Information:

^ Working time has been changed

Vehicle Type:
Boxster (987)/Boxster S (987)

Model Year:
As of 2005

Situation:
Retrofitting

Restriction:
Not for vehicles with Tiptronic S (I No. 249)





Note:

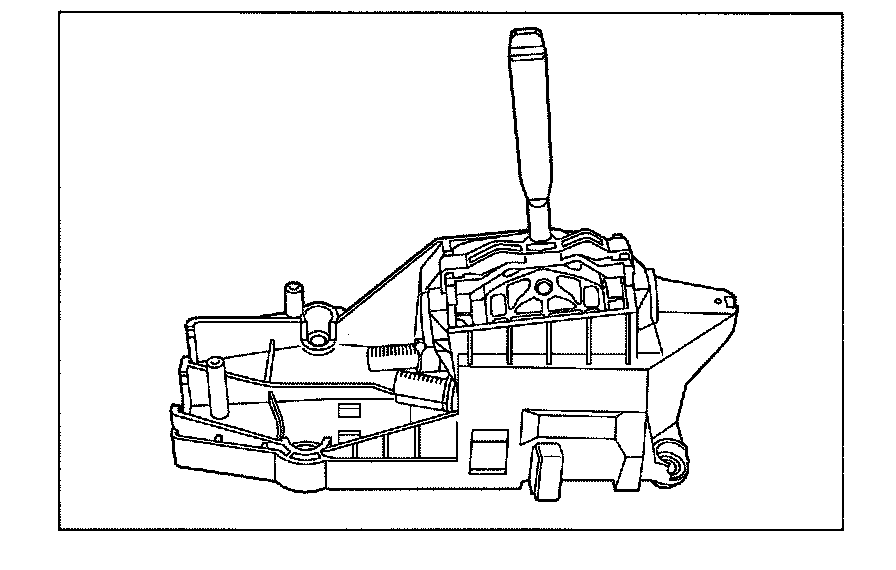

Retrofitting the gearshift bracket for shortening shift travel is identical to retrofitting the standard gearshift bracket.

Subsequent installation of the gearshift bracket for shortening shift travel must be carried out as described in ~ Workshop Manual '340819 Removing and installing gearshift bracket'.

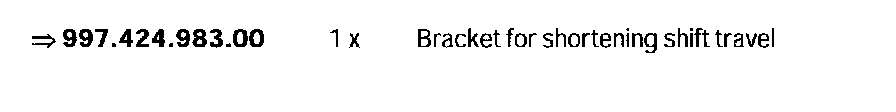

Parts Info:

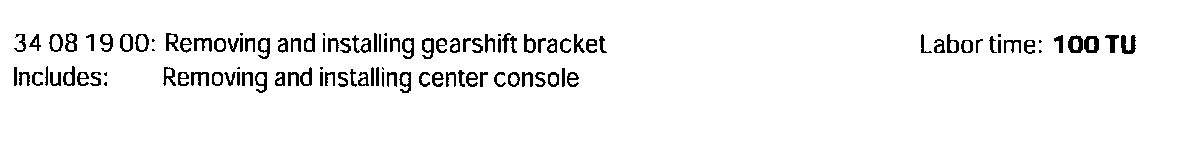

Working Time:
