Removing and Installing Deflection Lever

Removing and installing deflection lever

Removing deflection lever

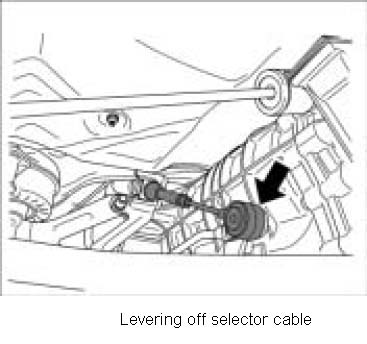

1. Lever selector cable off ball pin.

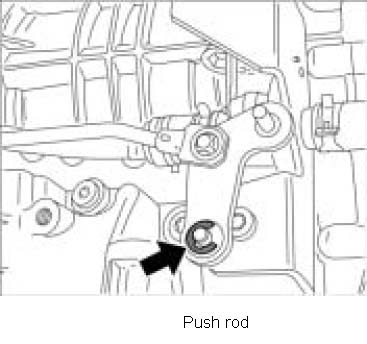

2. Unclip push rod on transmission lever.

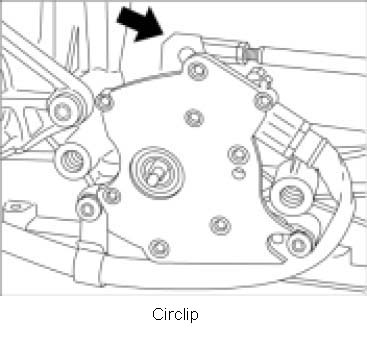

3. Remove circlip for deflection lever and remove deflection lever with push rod.

Installing deflection lever

1. Grease deflection lever axle and bushings with Optimol TA.

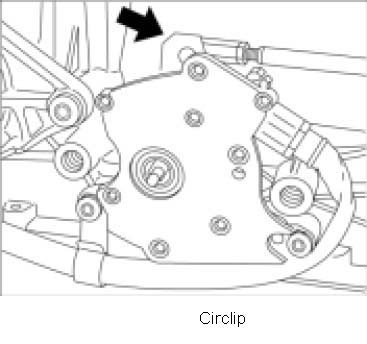

2. Install deflection level and fit circlip.

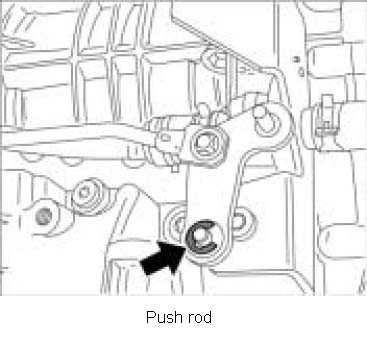

3. Clip in push rod on transmission lever.





4. Press off selector cable on ball pin.
