Transmission Mode Switch: Service and Repair
Removing and installing Tiptronic rocker switchPreliminary work
1. Remove driver's airbag unit.
Removing Tiptronic rocker switch
The graphics below show how to remove the left rocker switch. The description also applies for the right rocker switch.

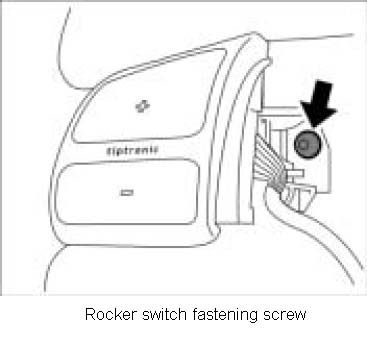

1. Unscrew fastening screw for rocker switch.

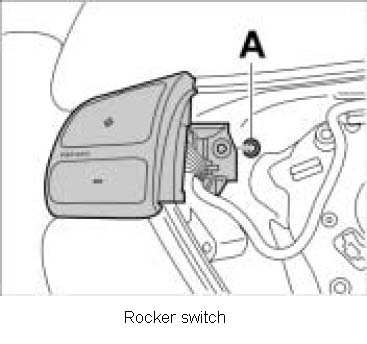

2. Carefully lever out rocker switch using a screwdriver. Watch out for the washer -A- when levering out the rocker switch.
3. Unlock and disconnect the electric plug connection.
Installing Tiptronic rocker switch
The graphics below show how to install the left rocker switch. The description also applies for the right rocker switch.

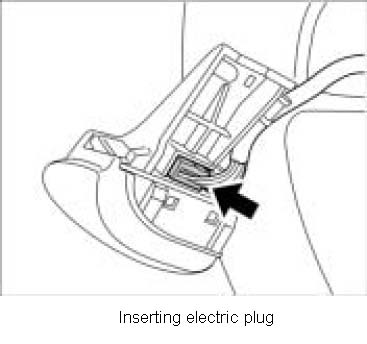

1. Insert electric plug connection into rocker switch until the plug engages firmly.

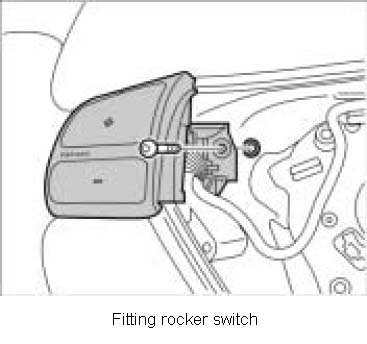

2. Insert rocker switch and washer into steering wheel and screw in fastening screw.
Subsequent work
1. Install driver's airbag unit.
