Wiper Arm: Service and Repair

Removing And Installing Wiper Arm

Technical values







Removing Wiper Arm

WARNING:
Danger of trapping and injury due to uncontrolled activation of wiper arms when fitting.
- Switch off ignition and remove ignition key.

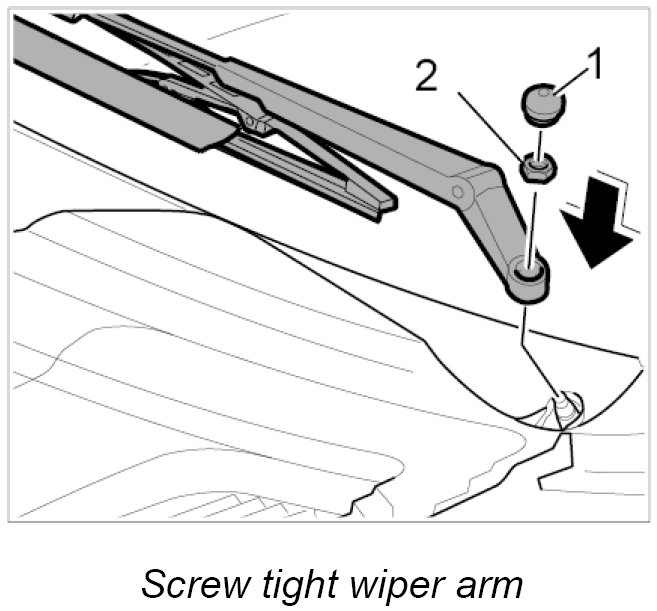

1. Remove caps -1- and unscrew the fastening nuts -2-.
2. Push wiper arm down at the joint and pull off the wiper link.

Installing wiper arm

WARNING:
Danger of trapping and injury due to uncontrolled activation of wiper arms when fitting.
- Switch off ignition and remove ignition key.







1. Position wiper arm on the wiper linkage, align it and secure in place with the fastening nuts -2-.

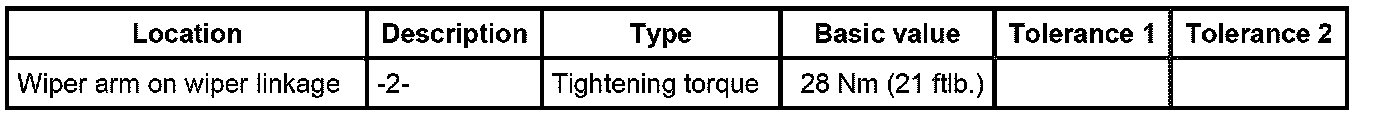

Tightening torque: 28 Nm (21 ftlb.)

2. Attach and press down cap -1- until it clicks into place.
3. Start wiper, check wiping area and wiper rest position, re-adjust wiper arms again if necessary.
