Wiper Blade: Service and Repair
Removing And Installing Wiper Blade
Removing wiper blade
WARNING:
Danger of trapping and injury due to uncontrolled activation of wiper arms when fitting.
- Switch off ignition and remove ignition key.

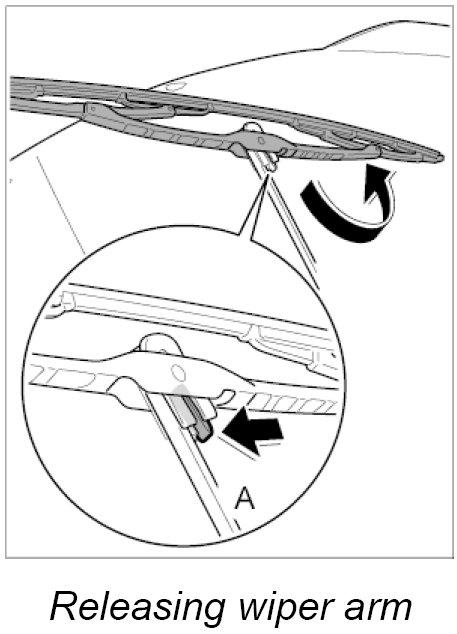

1. Raise wiper arm, release holder -A- and remove wiper blade by sliding it downwards and to the side.
Installing wiper blade
WARNING:
Danger of trapping and injury due to uncontrolled activation of wiper arms when fitting.
- Switch off ignition and remove ignition key.

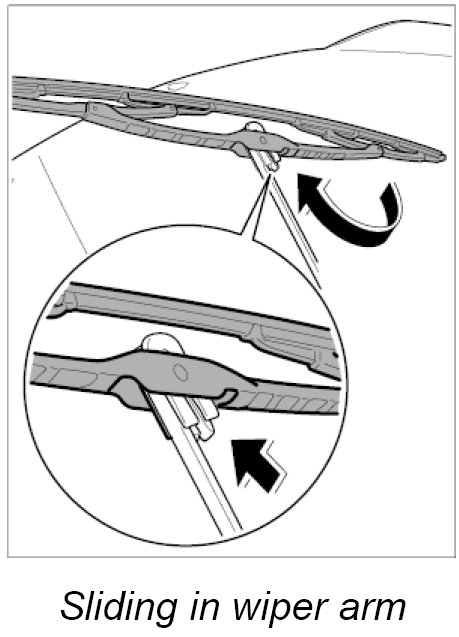

1. Slide wiper blade in from the side and engage in the wiper arm.
2. Lower wiper arm and check wiper function.
