Ambient Temperature Sensor / Switch HVAC: Service and Repair



Removing And Installing Temperature Sensor

Preliminary work

Removing front apron.

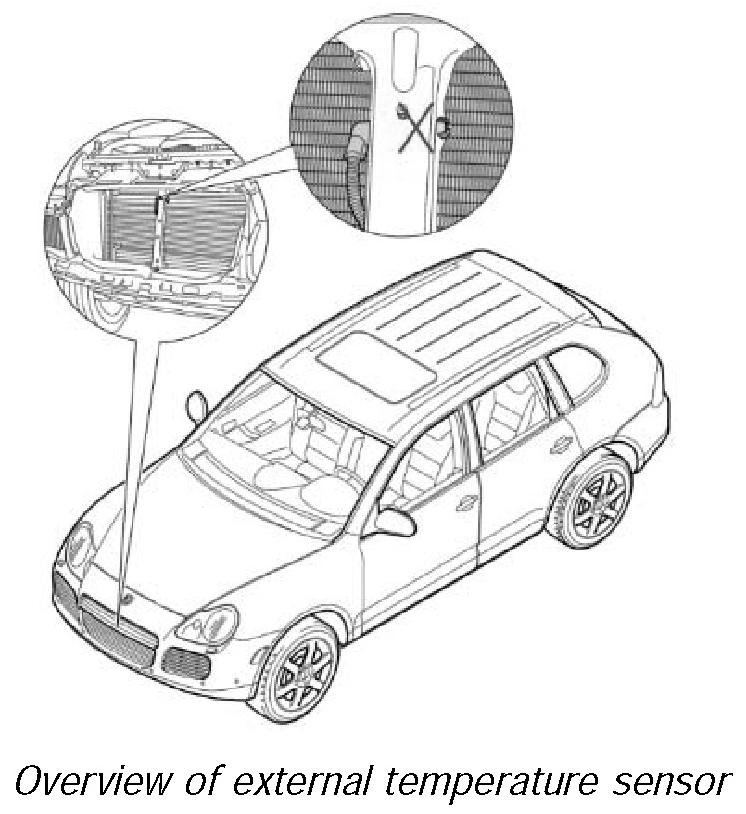

Removing outside temperature sensor

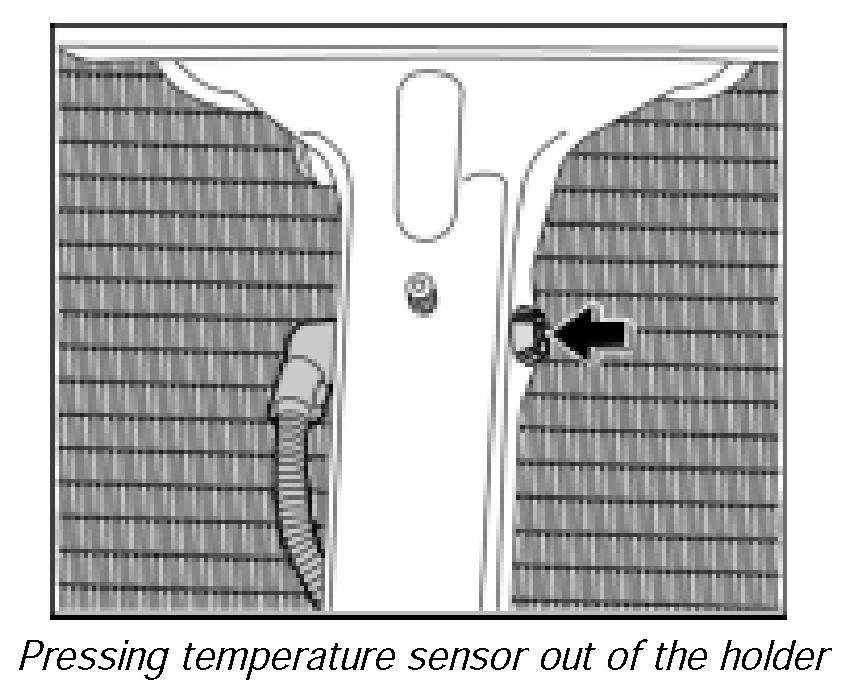

1. Press temperature sensor out of the holder.

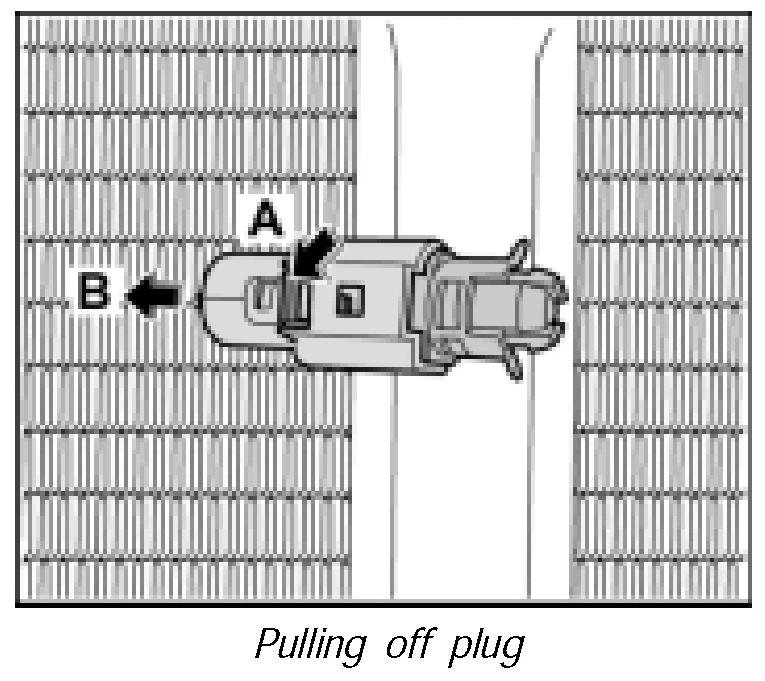

2. Release plug -Arrow A- and disconnect it from the temperature sensor -Arrow B-.

Installing outside temperature sensor

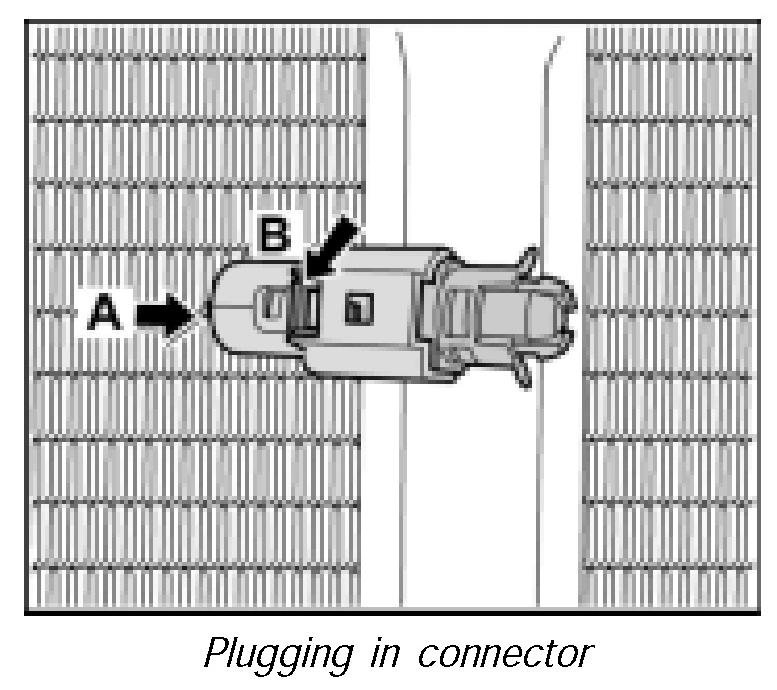

1. Plug in the temperature sensor connector -Arrow A- until the locking tab -B- is felt to engage.

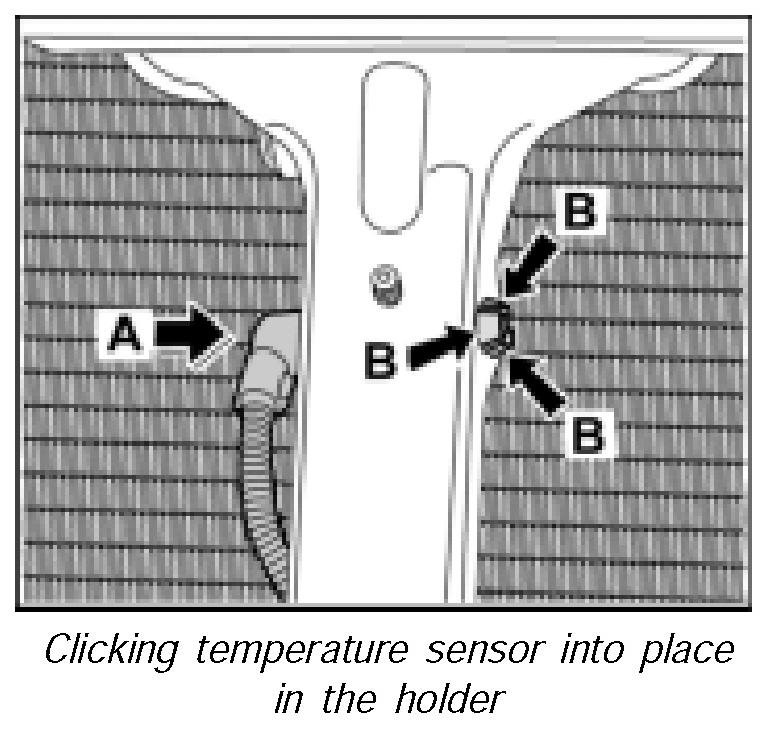

2. Push in temperature sensor -A- until you feel the locking tabs -Arrows B- engage.

Subsequent work

Installing front apron.
