Turn Signals: Service and Repair

Removing And Installing Side Direction Indicator Light

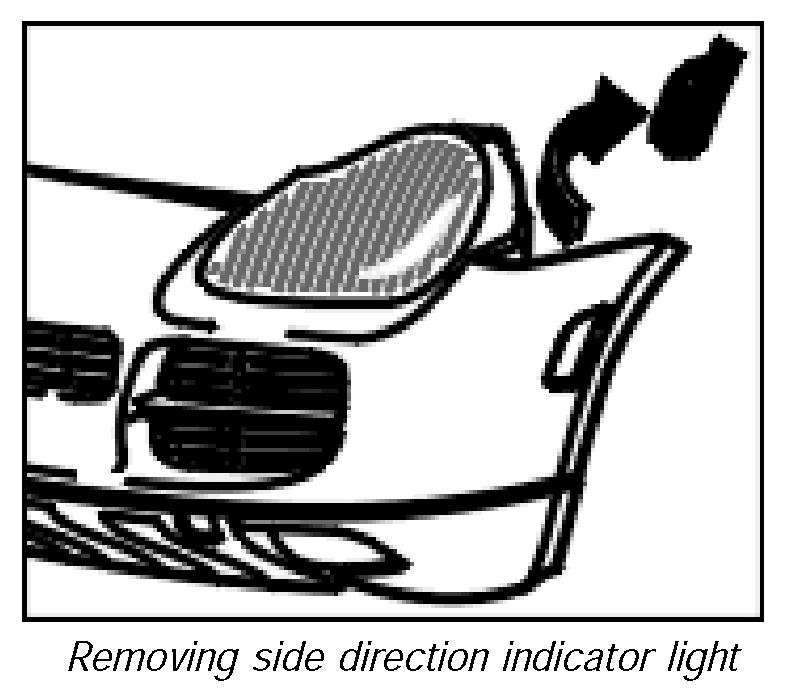

Removing side direction indicator light







NOTE:
- Observe instructions in.
- Before the direction indicator light can be removed, the relevant wheel housing liner must be partially disassembled.

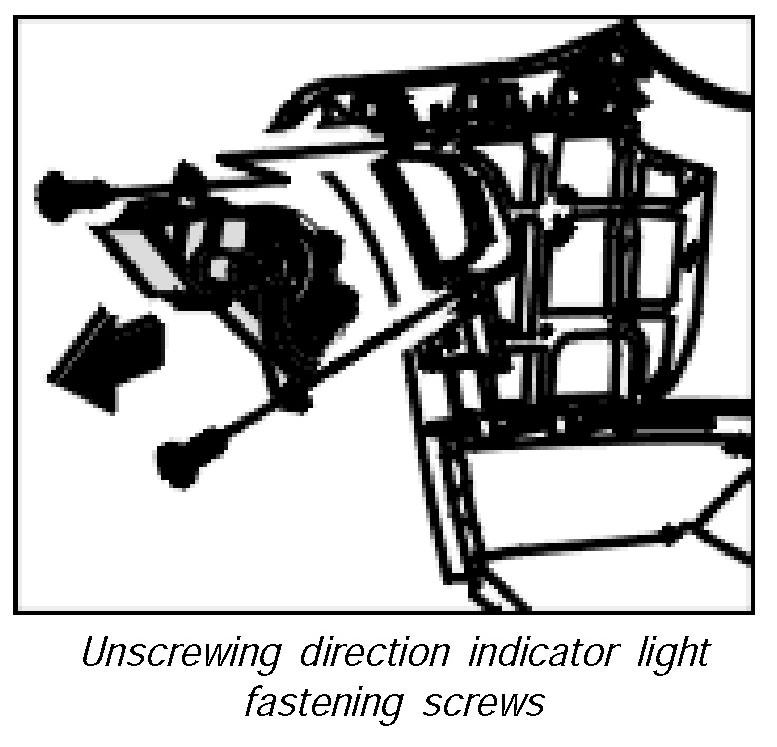

1. Undo the two direction indicator light fastening screws and remove the light unit inwards -arrow-.

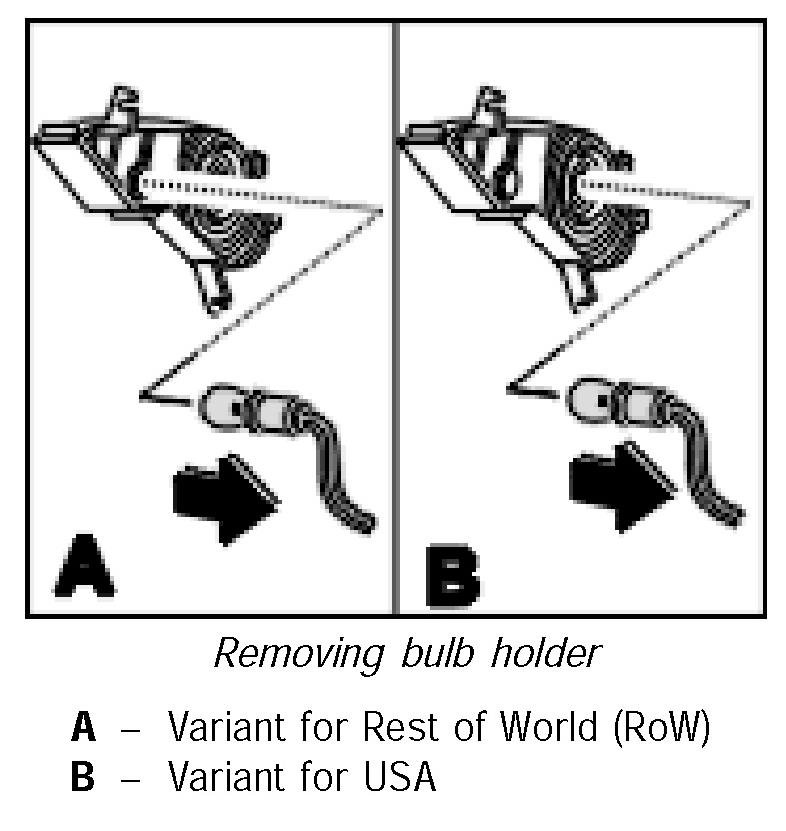

2. Turn bulb holder slightly and remove it.

Installing side direction indicator light

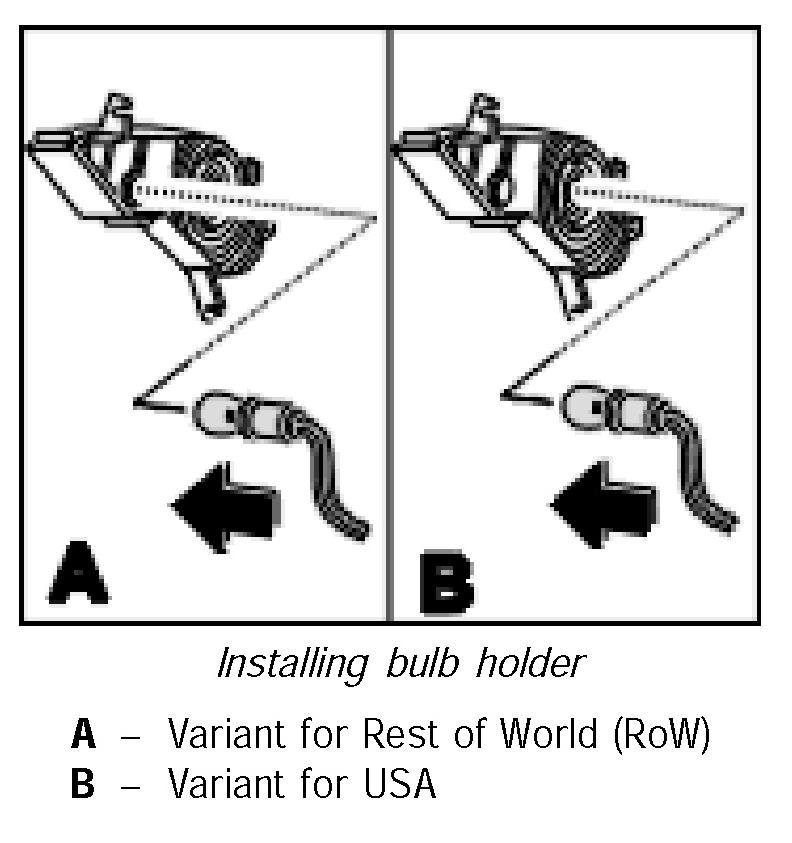

1. Insert bulb holder into direction indicator light and turn slightly, ensuring it is seated properly.

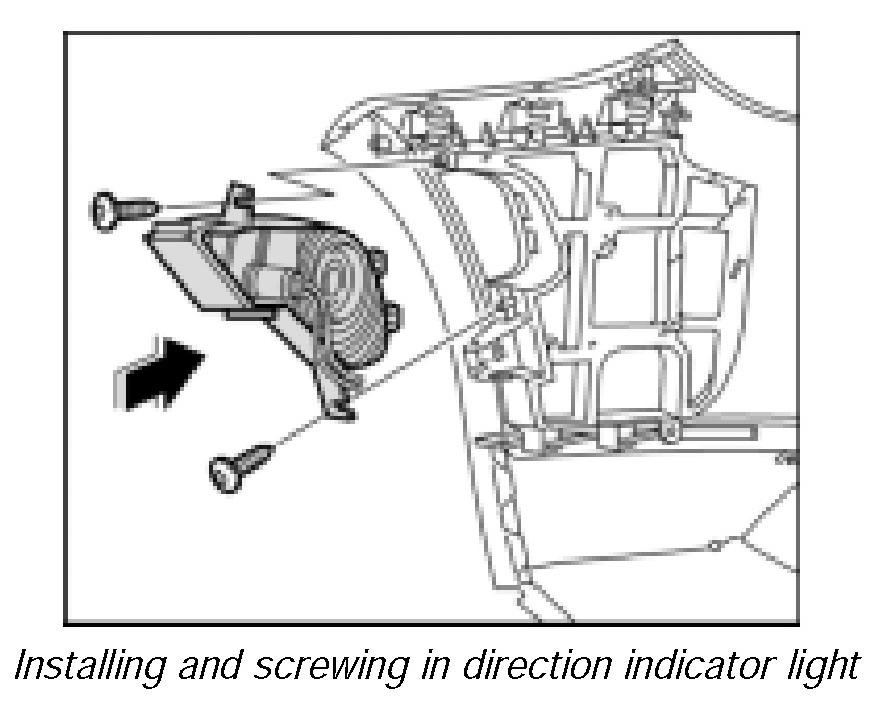

2. Install direction indicator light and tighten with the two fastening screws. Tightening torque 1.6 ftlb.
3. Fit wheel housing liner.

Removing and installing bulb for side direction indicator light

NOTE: Partially disassemble wheel housing liner.

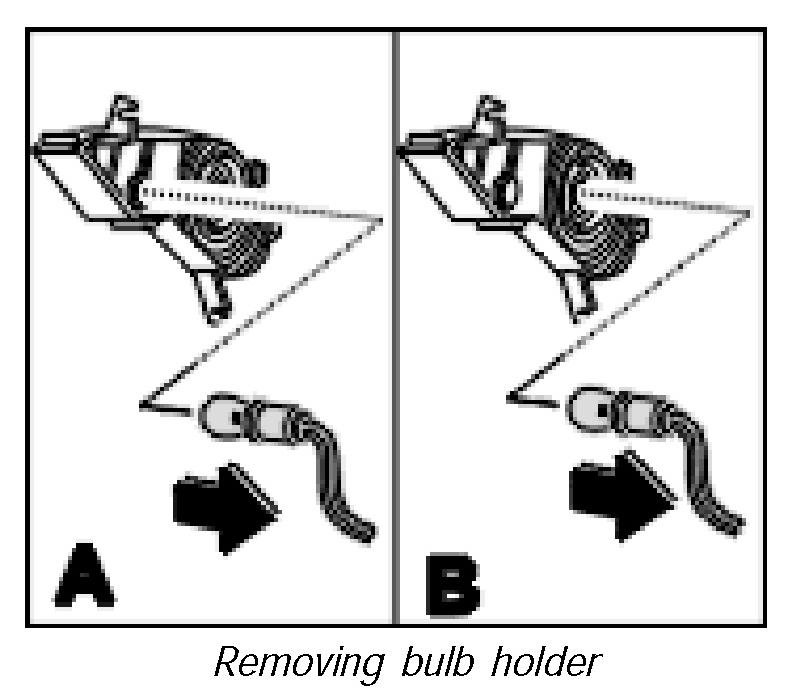

1. Turn bulb holder slightly and remove it.
2. Press bulb into holder and turn. Pull out bulb.
3. Hold the new bulb with a clean cloth or similar, press it into the holder and turn until it is seated properly.
4. Insert bulb holder into direction indicator light, press in and turn slightly. Ensure it is seated properly.
5. Fit wheel housing liner.
